GR100-3011
ESCOTT
Product Description
In automotive manufacturing and tire assembly processes, handling and installing tires manually is often a physically demanding task. Repeated lifting, turning, and positioning of heavy tires can increase operator fatigue, reduce assembly efficiency, and create ergonomic risks in the workplace.

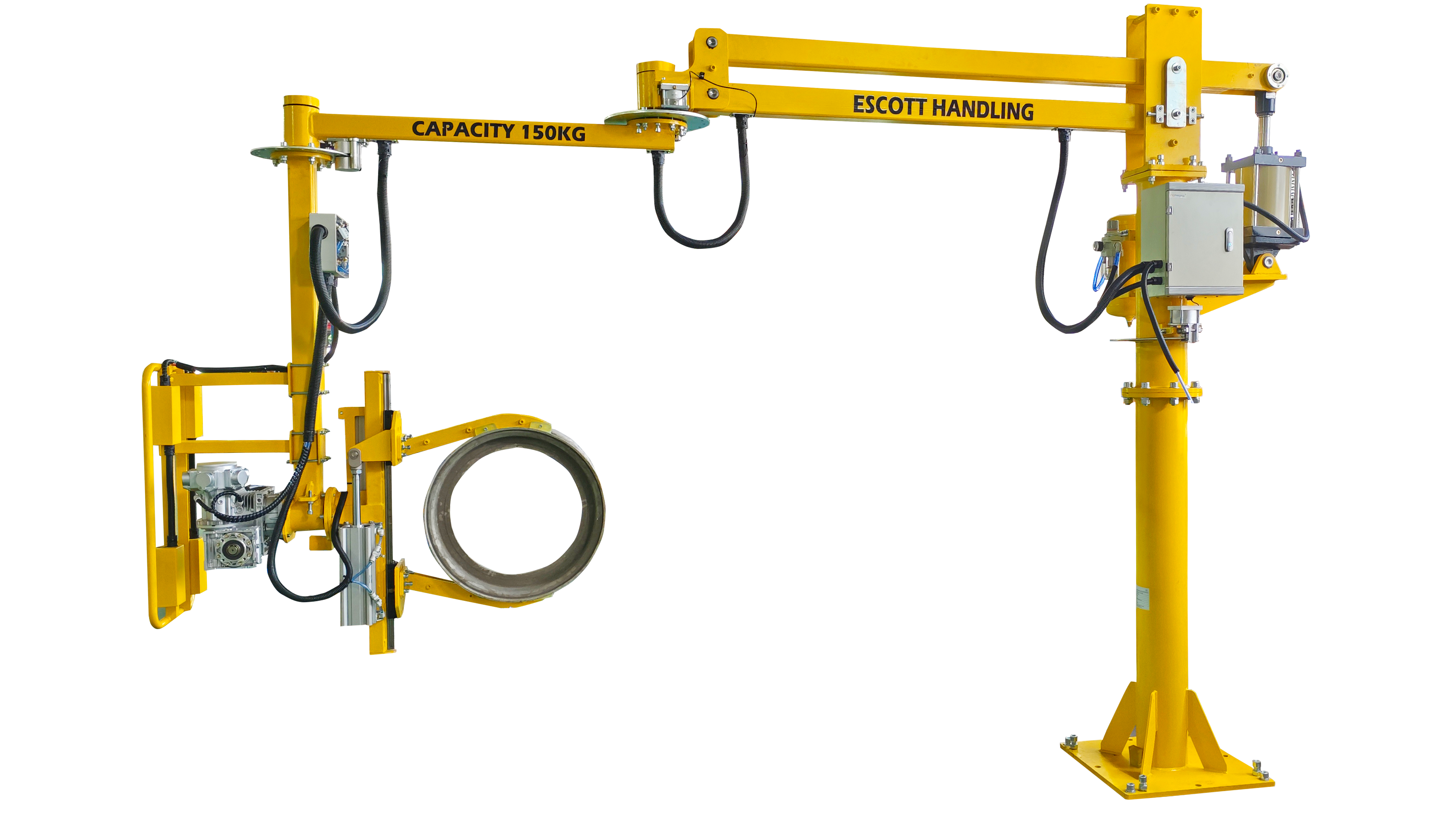

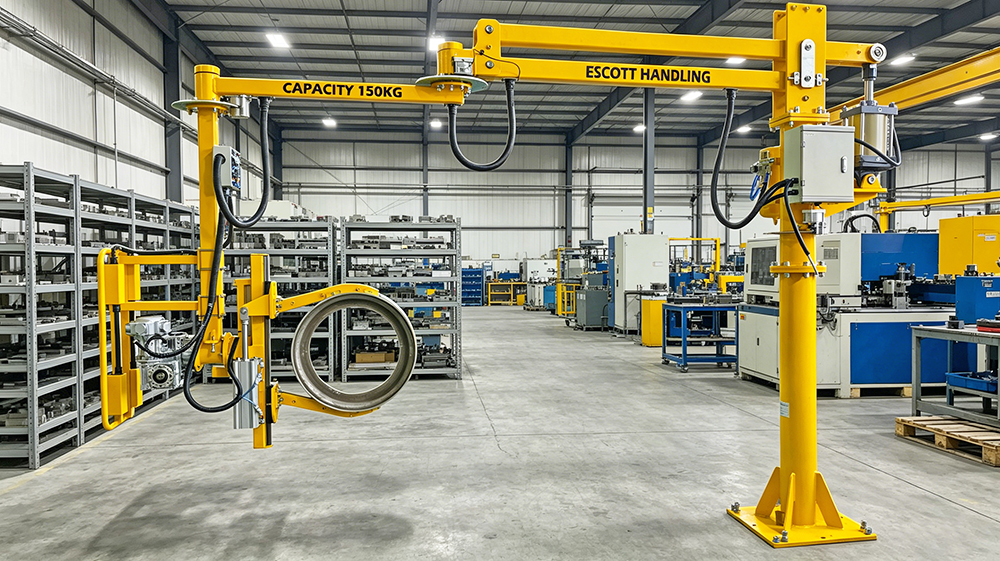

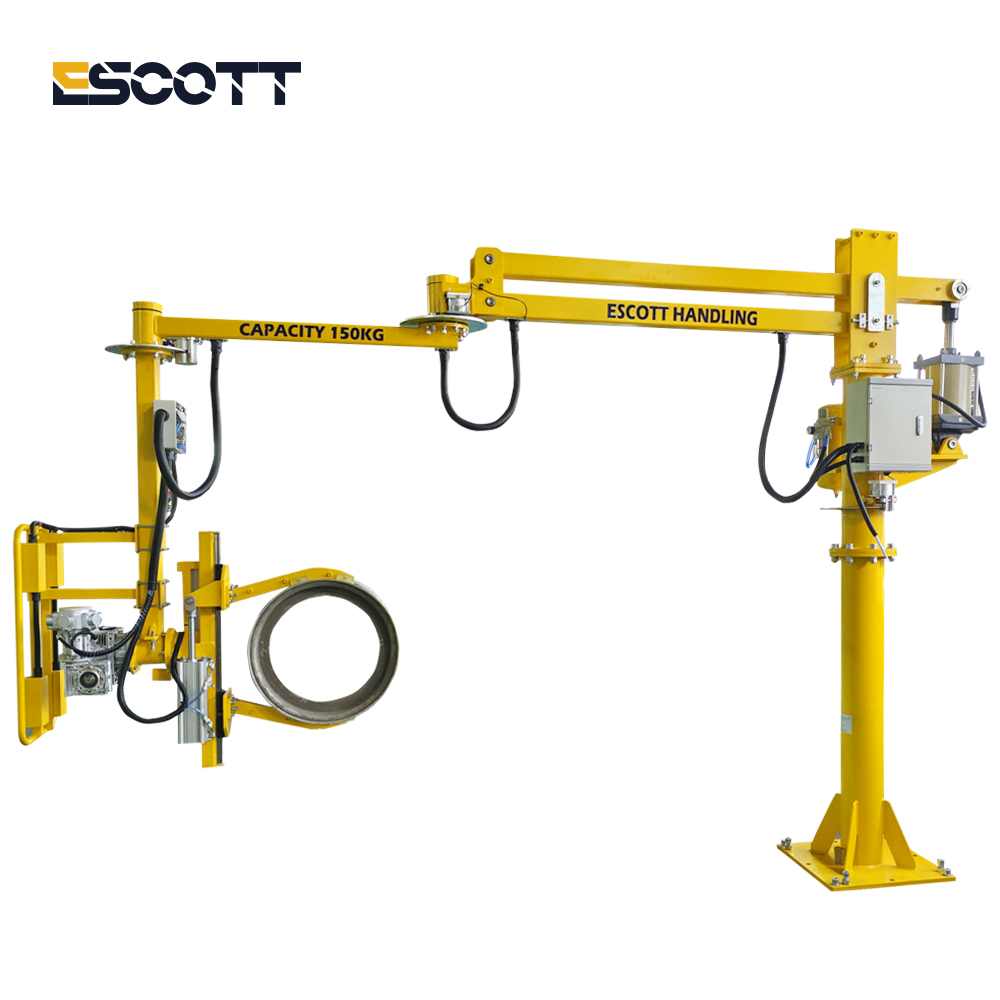

ESCOTT’s 100kg Pneumatic Tire Handling Manipulator with 90° Rotation Function is designed to provide a safer, faster, and more efficient solution for automotive tire handling. By using pneumatic power assistance, operators can easily lift, move, rotate, and precisely position tires with minimal effort, improving both productivity and workplace safety.
The integrated 90° rotation mechanism allows tires to be smoothly flipped and adjusted to the required angle during installation. This makes the equipment especially suitable for tire mounting, wheel assembly, production line transfer, and maintenance operations where accurate positioning is required.
The customized tire gripper is designed according to different tire sizes, wheel structures, and handling requirements. It provides stable gripping performance while protecting the tire surface from damage. The ergonomic control handle enables operators to control lifting and movement easily, creating a more comfortable human-machine interaction.
With a 100kg lifting capacity, flexible installation options, and customized configurations, ESCOTT’s tire handling manipulator helps automotive manufacturers reduce manual workload, improve assembly efficiency, and build a safer production environment.
Product Features
The pneumatic balancing system provides smooth and stable lifting assistance, allowing operators to handle heavy tires effortlessly and reducing physical strain caused by repetitive operations.
The rotation mechanism enables quick tire flipping and angle adjustment, making it easier to align tires during vehicle assembly and installation processes.
ESCOTT designs customized grippers according to tire diameter, weight, tread structure, and application requirements to ensure secure and reliable handling.
The intuitive control system allows operators to precisely control lifting, movement, and positioning, improving working comfort and reducing fatigue.
The manipulator provides controlled movement and stable support during operation, reducing the risks associated with manual tire lifting and transportation.

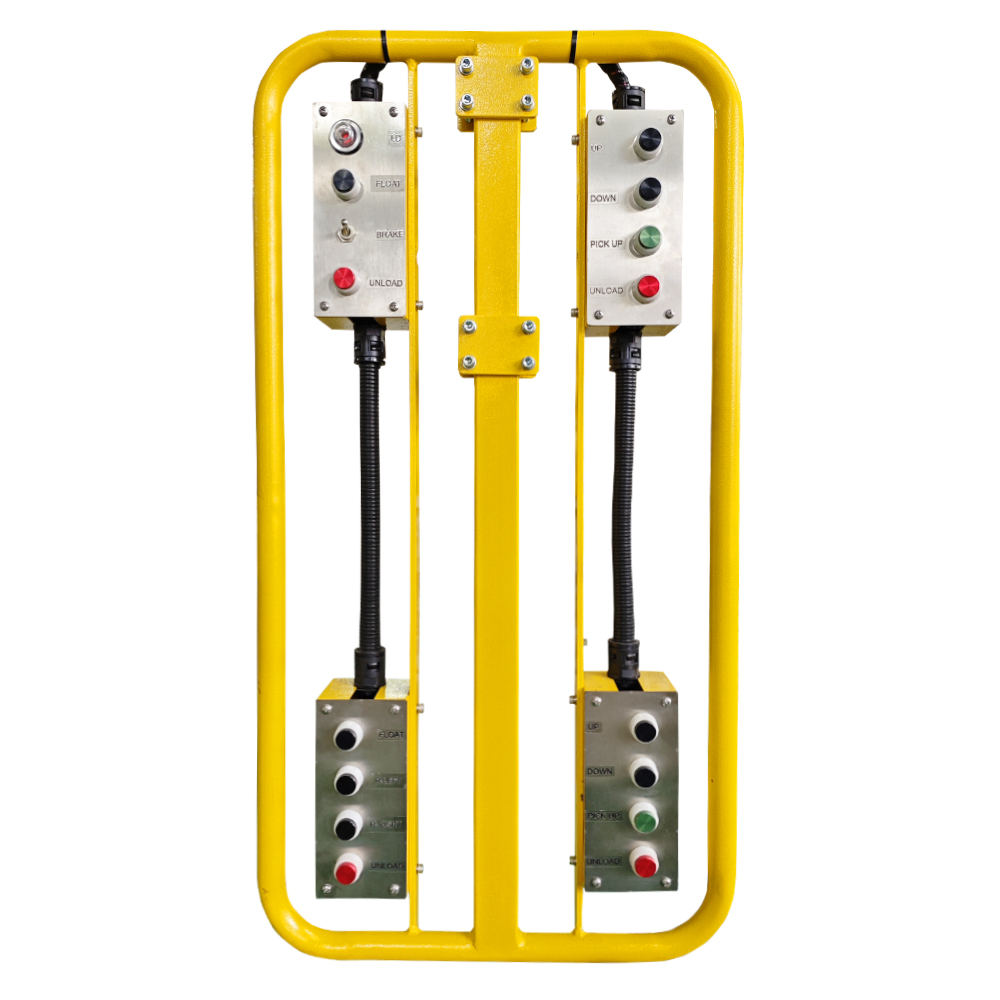

handle

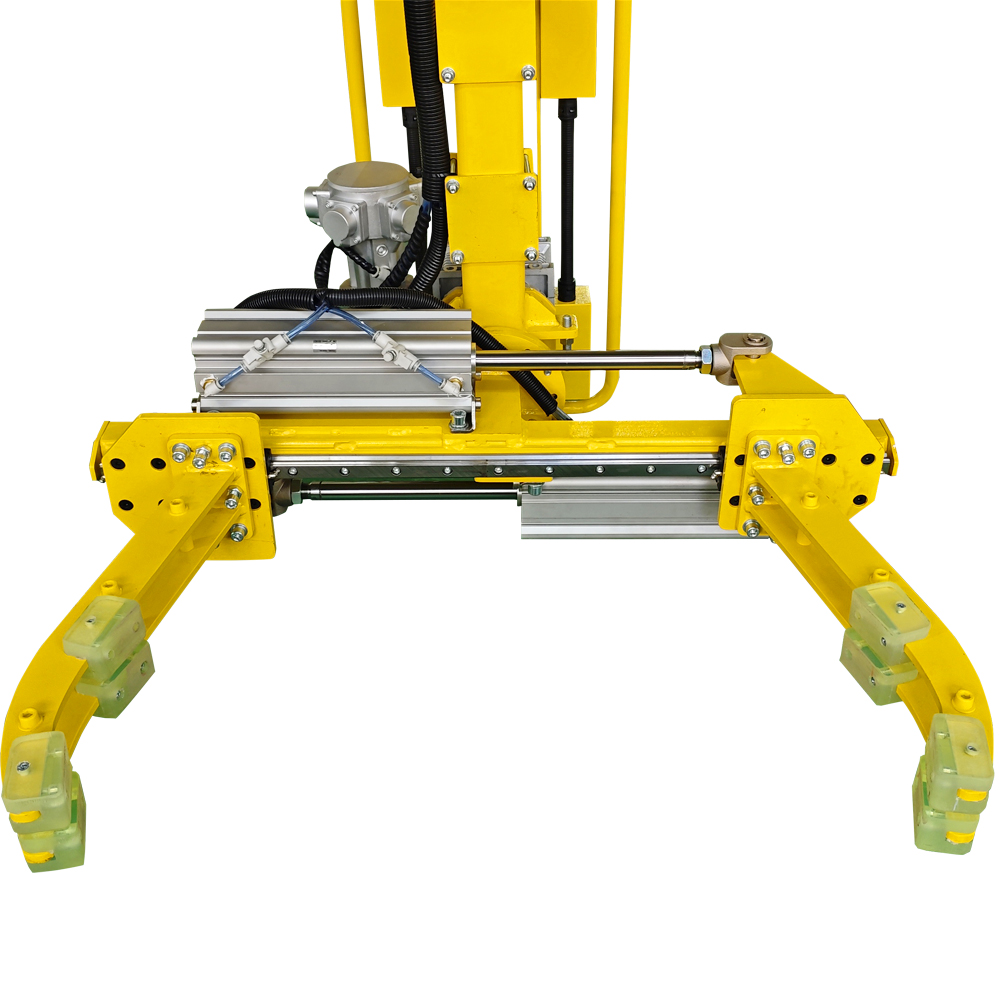

fixture

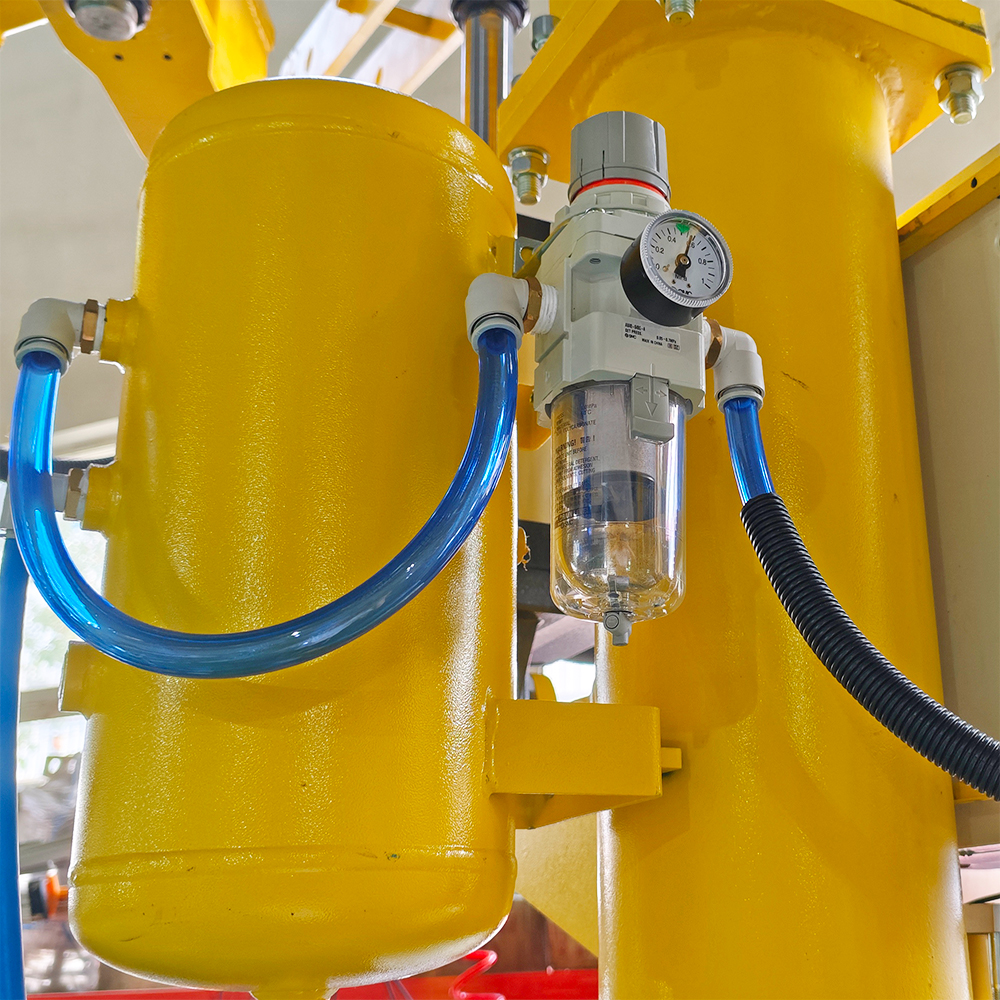

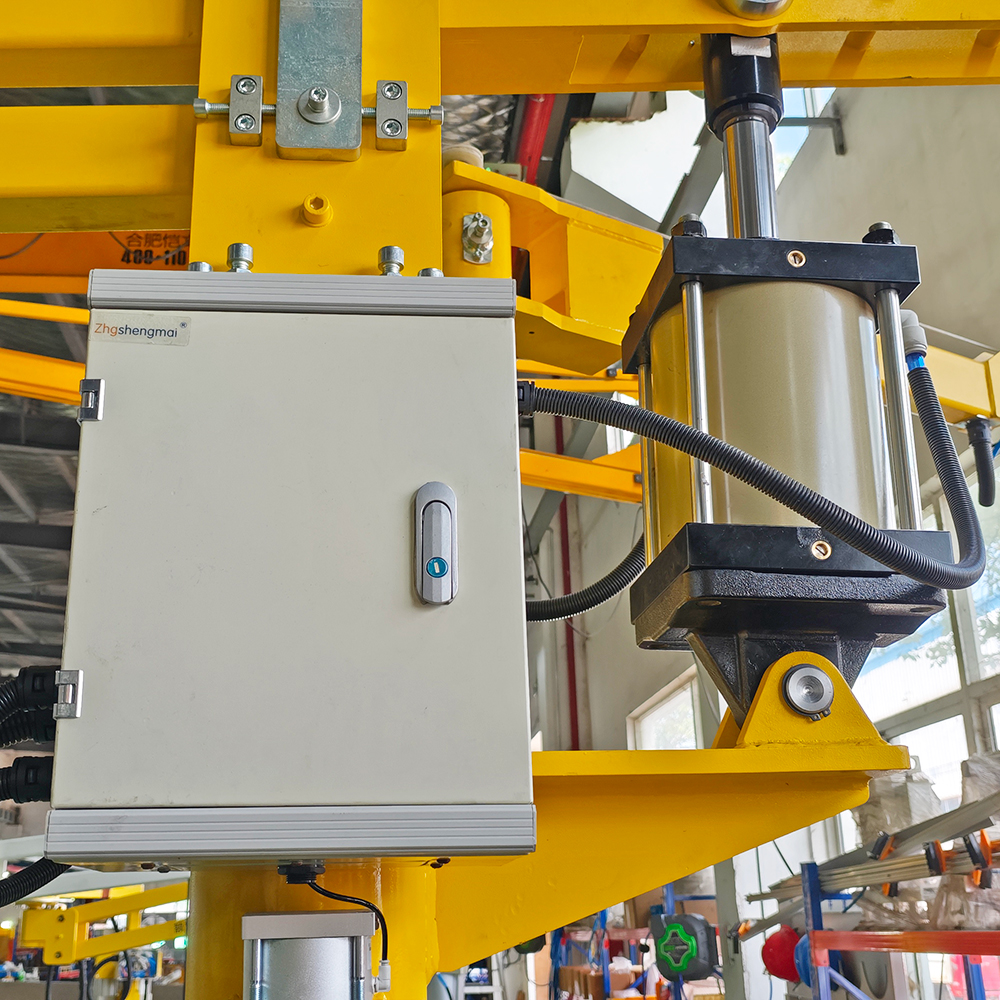

Air tank
Technical Parameters
| Parameter | Specification |
|---|---|
| Product Type | Pneumatic Tire Handling Manipulator |
| Maximum Load Capacity | 100kg |
| Application | Automotive Tire / Wheel Handling |
| Rotation Function | 90° Tilting & Turning |
| Operation Method | Manual Control with Pneumatic Assistance |
| Gripper Type | Customized Tire Gripper |
| Installation Type | Column Mounted / Overhead Mounted / Customized |
| Control System | Ergonomic Control Handle |
| Applicable Industries | Automotive Manufacturing, Tire Assembly, Maintenance |
Applications

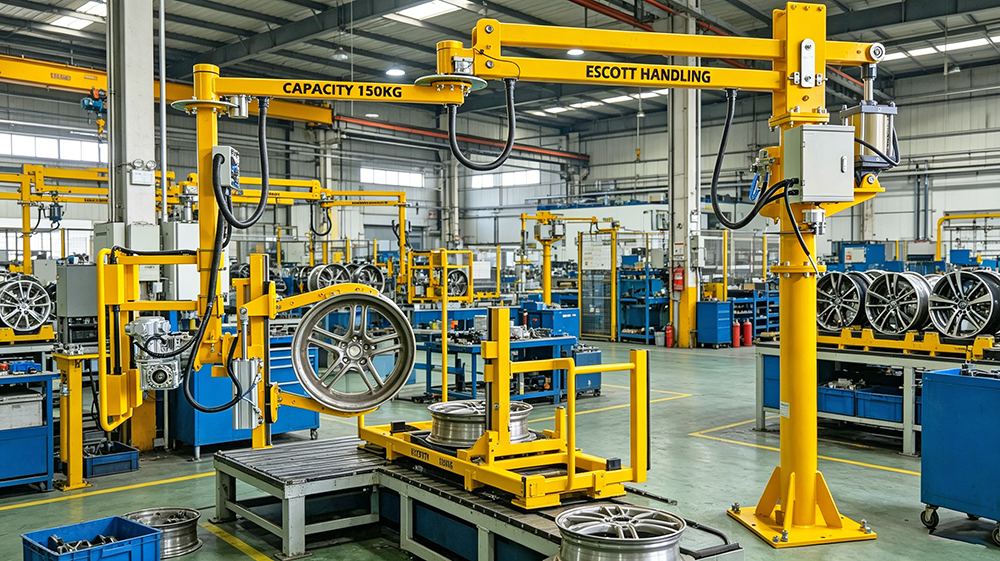

Used for tire lifting, transferring, and installation operations in vehicle assembly plants, improving production efficiency and reducing labor intensity.
Assists operators in positioning and mounting tires accurately, especially for repetitive tire installation processes.
Suitable for EV production lines where heavier wheel assemblies require safer and more ergonomic handling solutions.
Provides lifting assistance for tire replacement, movement, and positioning tasks.
Helps transfer tires between inspection areas while maintaining stable and controlled movement.

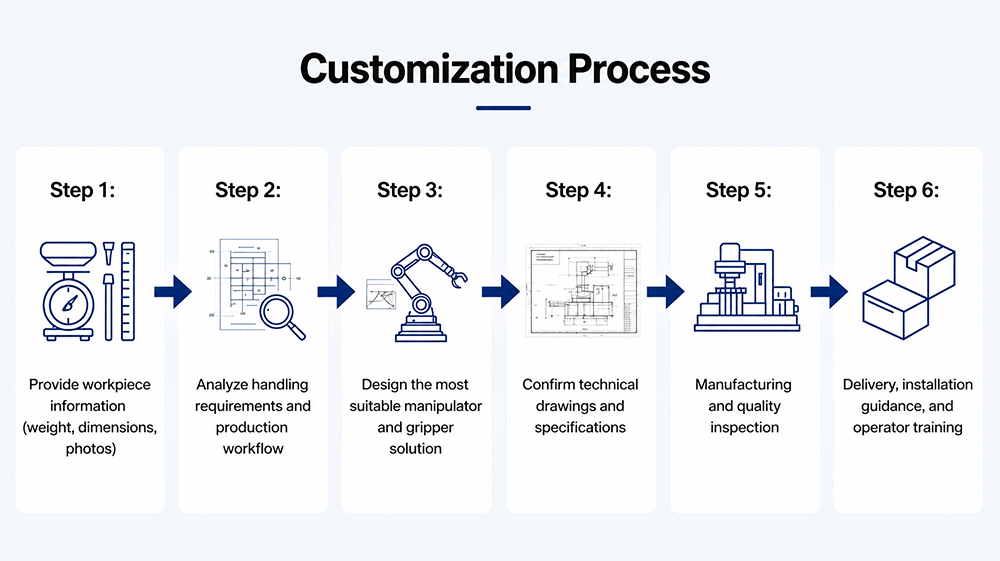

Customization Options
We provides customized tire handling solutions based on different customer requirements:
Customized tire gripping tools for different sizes and designs
Customized lifting height and working radius
Customized rotation angle and positioning functions
Customized installation structures according to factory layout
Integration with production lines and workstation systems
Special solutions for automotive assembly processes
