GR150-3011
ESCOTT
Product Description
In film production, packaging, printing, and converting industries, operators often need to handle heavy rolls repeatedly during loading, unloading, and position adjustment. Traditional manual handling not only increases labor intensity but also creates risks of product damage, workplace injuries, and reduced production efficiency.

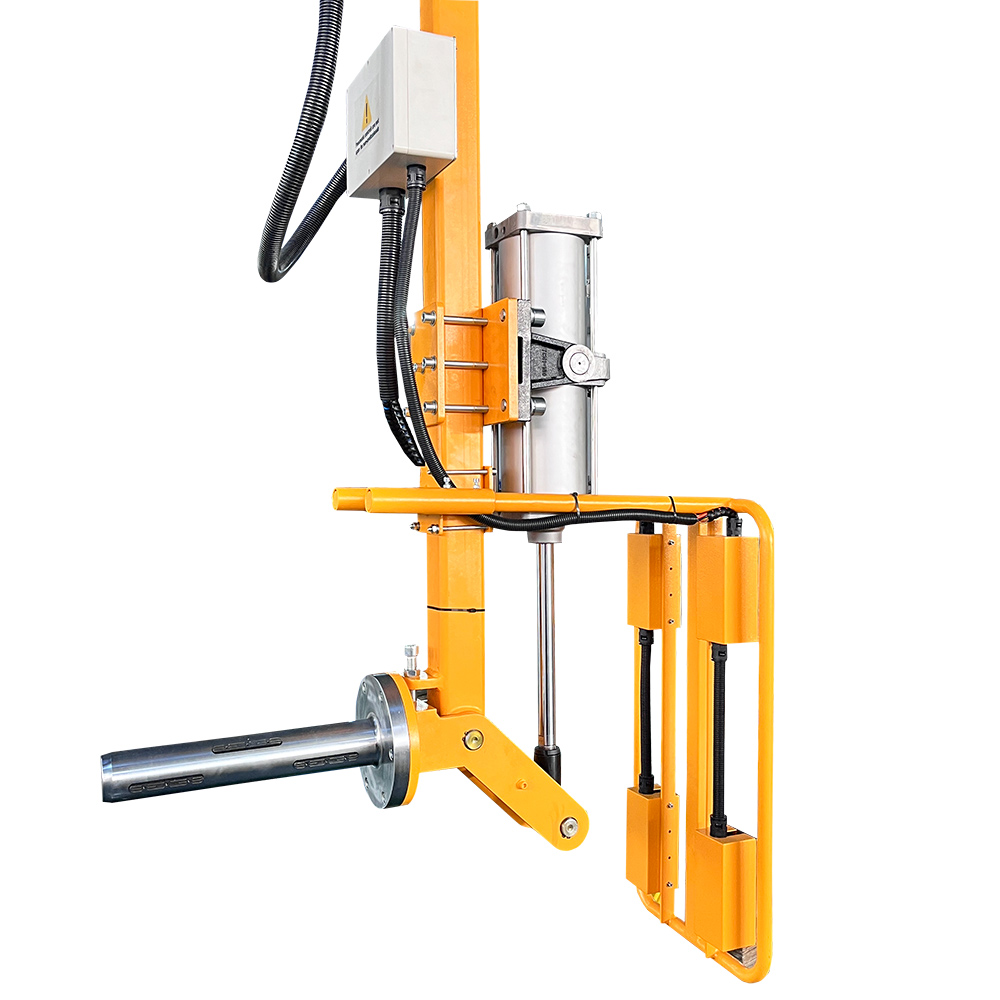

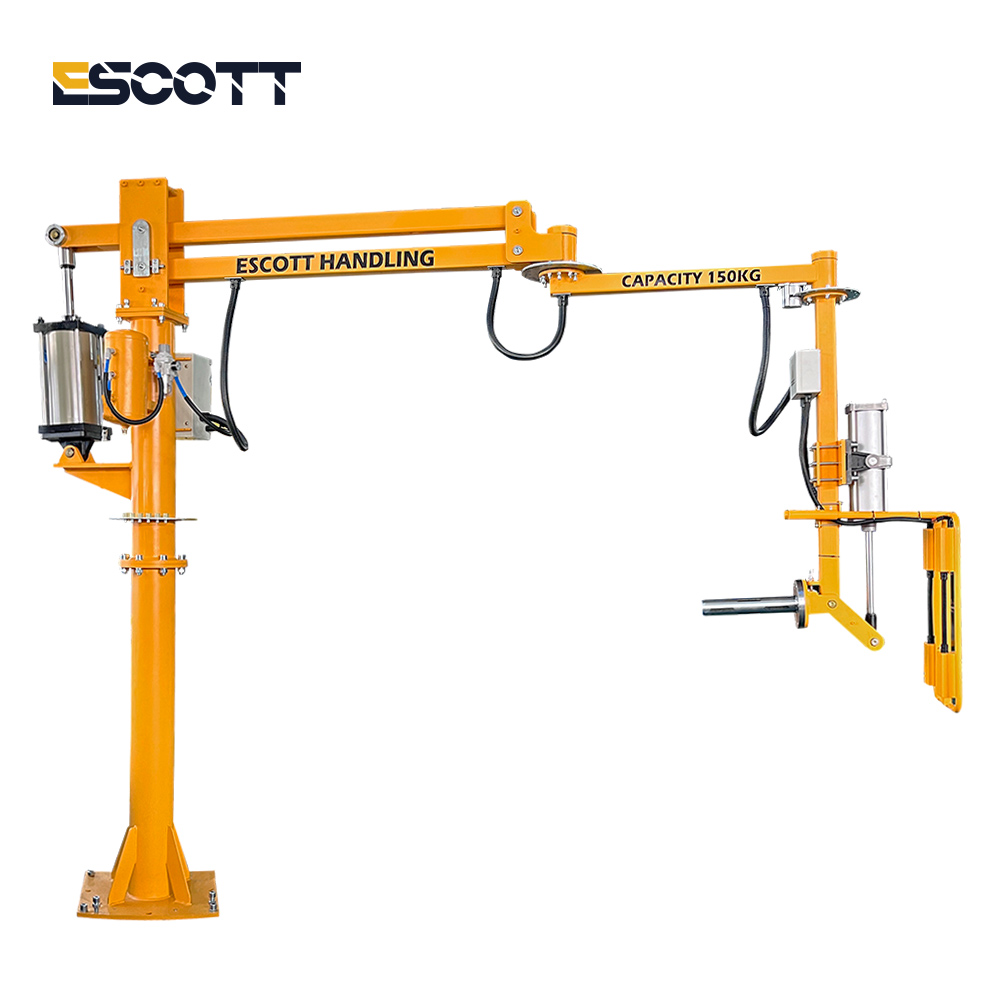

ESCOTT’s 150kg Pneumatic Roll Handling Manipulator with 90° Tilting Function is designed to provide a safer and more efficient solution for roll material handling. Powered by pneumatic assistance, the manipulator enables operators to effortlessly lift, move, rotate, and accurately position film rolls with minimal physical force.

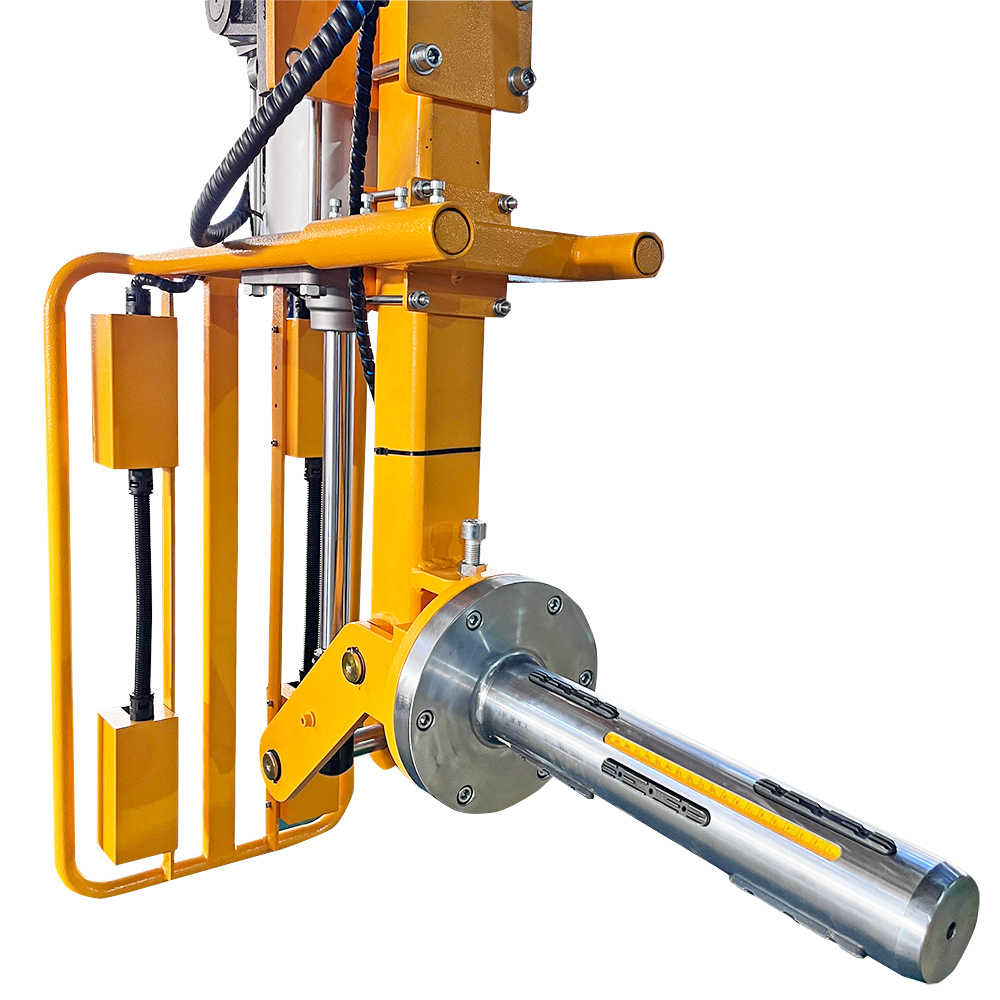

The integrated 90-degree tilting mechanism allows the roll to be smoothly turned from horizontal to vertical or other required positions, making it ideal for production lines where roll orientation changes are frequently required. The customized gripper can be designed according to different roll diameters, materials, surface conditions, and handling requirements, ensuring stable and secure gripping without damaging the product.
With a 150kg load capacity, ergonomic operation design, and flexible customization options, this pneumatic roll handling system helps manufacturers reduce manual labor, improve workplace safety, and enhance overall handling efficiency.
Technical Parameters
Parameter | Specification |
|---|---|
Maximum Load Capacity | 150kg |
Operation Mode | Pneumatic Assisted |
Rotation Function | 90° Tilting / Turning |
Application Material | Film Roll, Plastic Coil, Paper Roll, Flexible Materials |
Control Method | Manual Operation Handle |
Gripper Type | Customized According to Roll Requirements |
Rotation Angle | 90° |
Installation Options | Column Mounted / Overhead Mounted / Customized |
Power Supply | Compressed Air |
Product Features
The pneumatic balancing system supports the operator during lifting and movement, reducing physical strain and improving handling efficiency for repetitive roll handling tasks.
The customized rotating mechanism enables smooth 90-degree flipping of film rolls, allowing easy adjustment of roll orientation for downstream production processes.
ESCOTT provides customized gripping solutions including internal clamping, external clamping, shaft gripping, and other designs according to roll structure and application requirements.
The manipulator provides stable holding force and smooth movement control, helping prevent roll deformation, slipping, and accidental damage during transportation.
The system can be installed with columns, overhead rails, jib cranes, or existing workstation structures to meet different factory layouts and production needs.

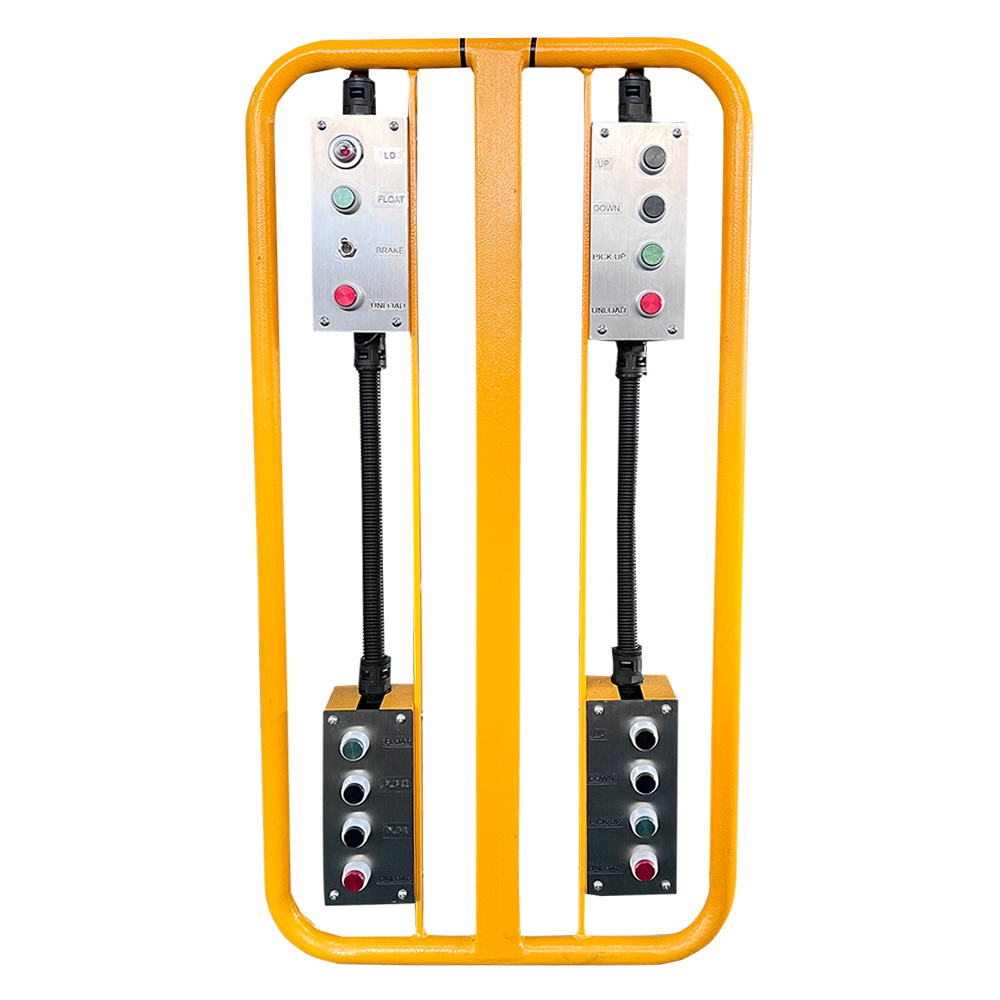

handle

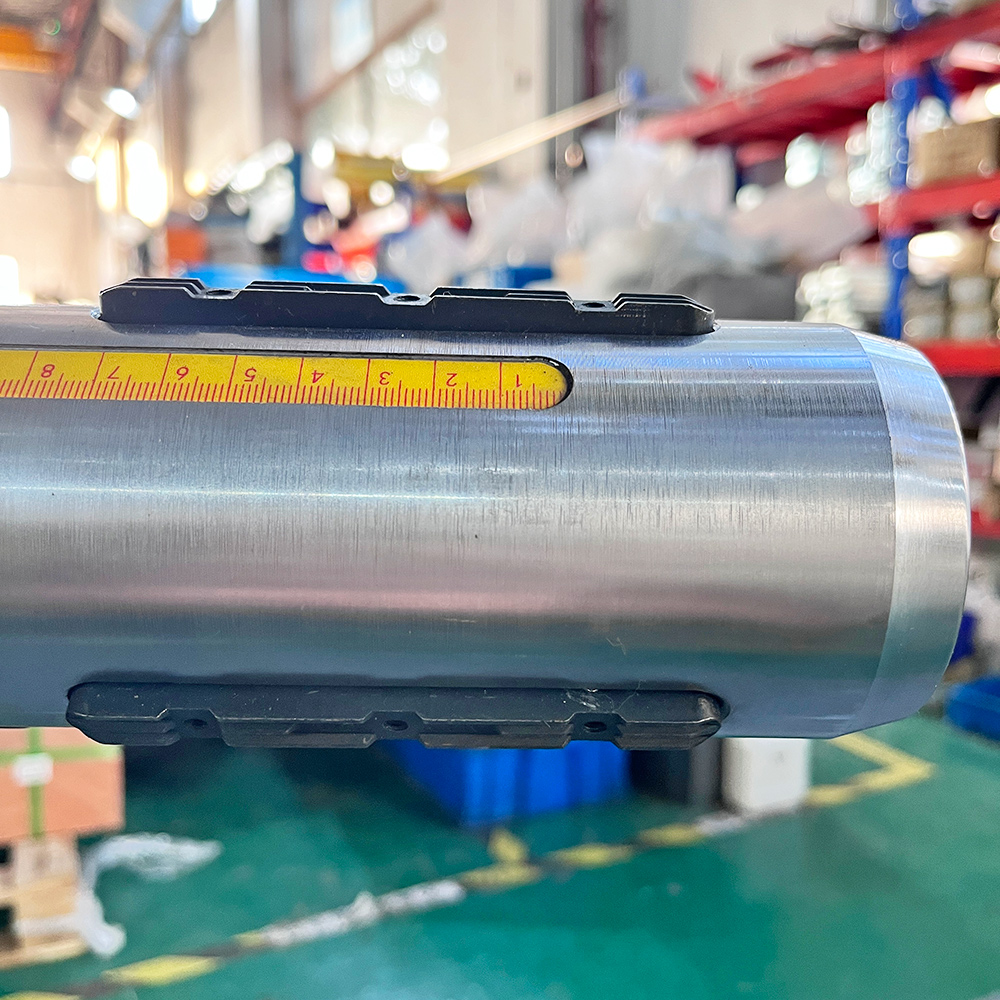

fixture

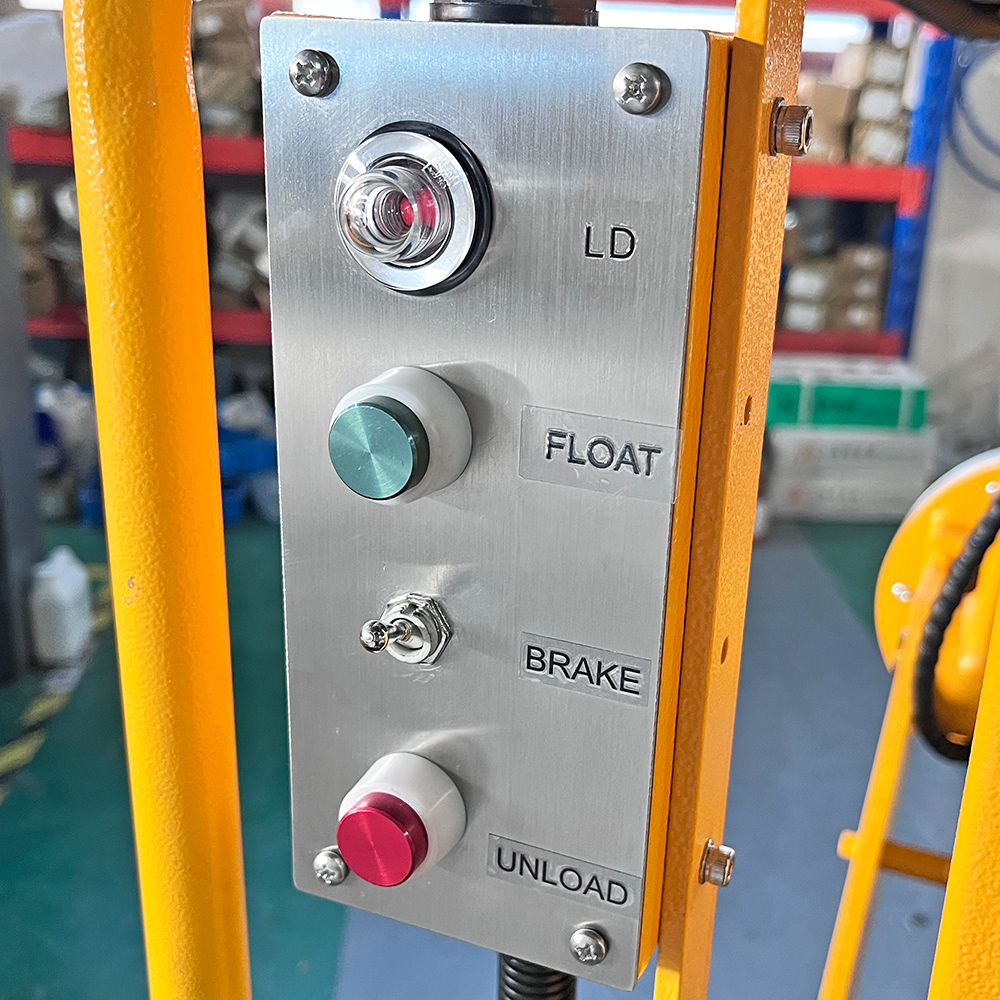

control Panel
Applications
Designed for handling plastic film rolls, packaging films, stretch films, and other flexible materials during production processes. The 90° tilting function helps operators easily change roll orientation for winding, cutting, inspection, and storage operations.
Ideal for transferring printing rolls, laminating films, and packaging materials between machines and workstations. The pneumatic manipulator improves handling efficiency while preventing surface damage, wrinkles, and deformation of sensitive roll materials.
Used for loading and unloading film coils from pallets, racks, production lines, and processing equipment. The ergonomic design reduces manual lifting requirements and improves operator safety during frequent material changes.
Suitable for film slitting, coating, laminating, and converting applications where rolls need to be lifted, moved, and rotated accurately. The customized gripper ensures stable handling of different roll sizes and core structures.
Provides an efficient solution for moving roll materials inside factories, helping operators transport heavy coils between storage areas, production equipment, and inspection stations with less physical effort.
Applicable for paper rolls, aluminum foil rolls, composite material rolls, and other cylindrical products. Customized gripping systems allow safe handling of various surfaces and materials without damaging the finished products.
Can be integrated into production lines to assist with roll feeding and positioning operations, improving workflow efficiency and reducing downtime caused by manual material handling.
Suitable for factories requiring ergonomic lifting assistance for roll-shaped materials, helping improve workplace safety and create a more efficient human-machine collaborative working environment.
