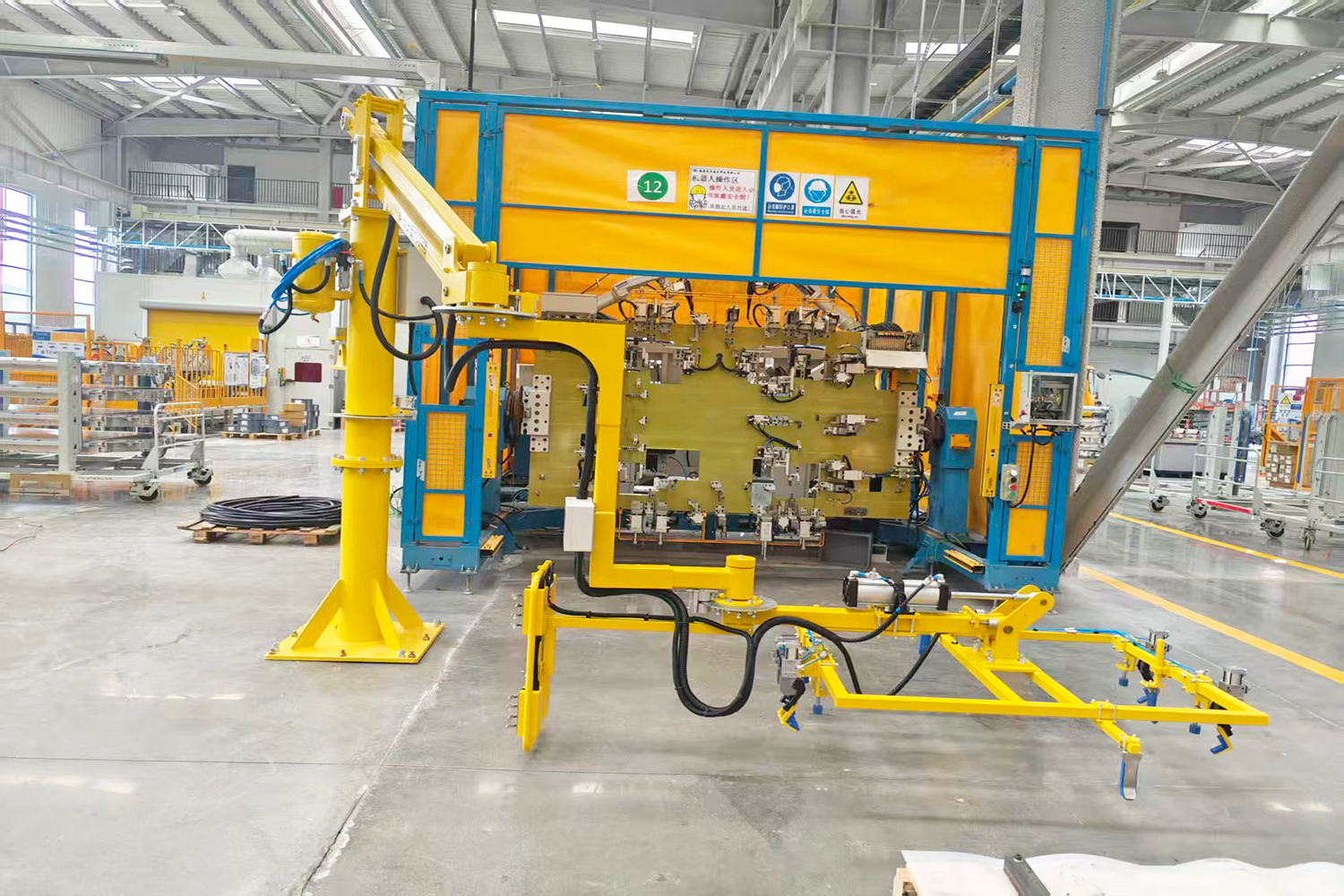

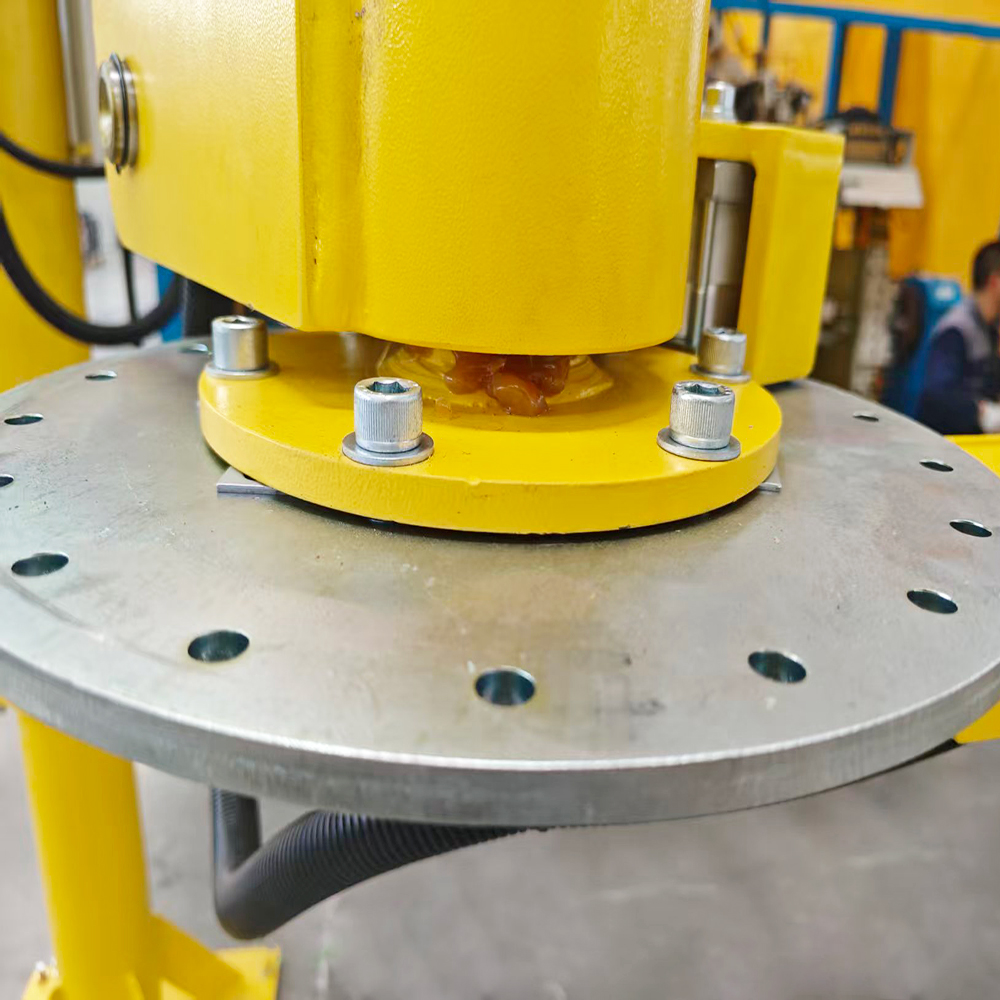

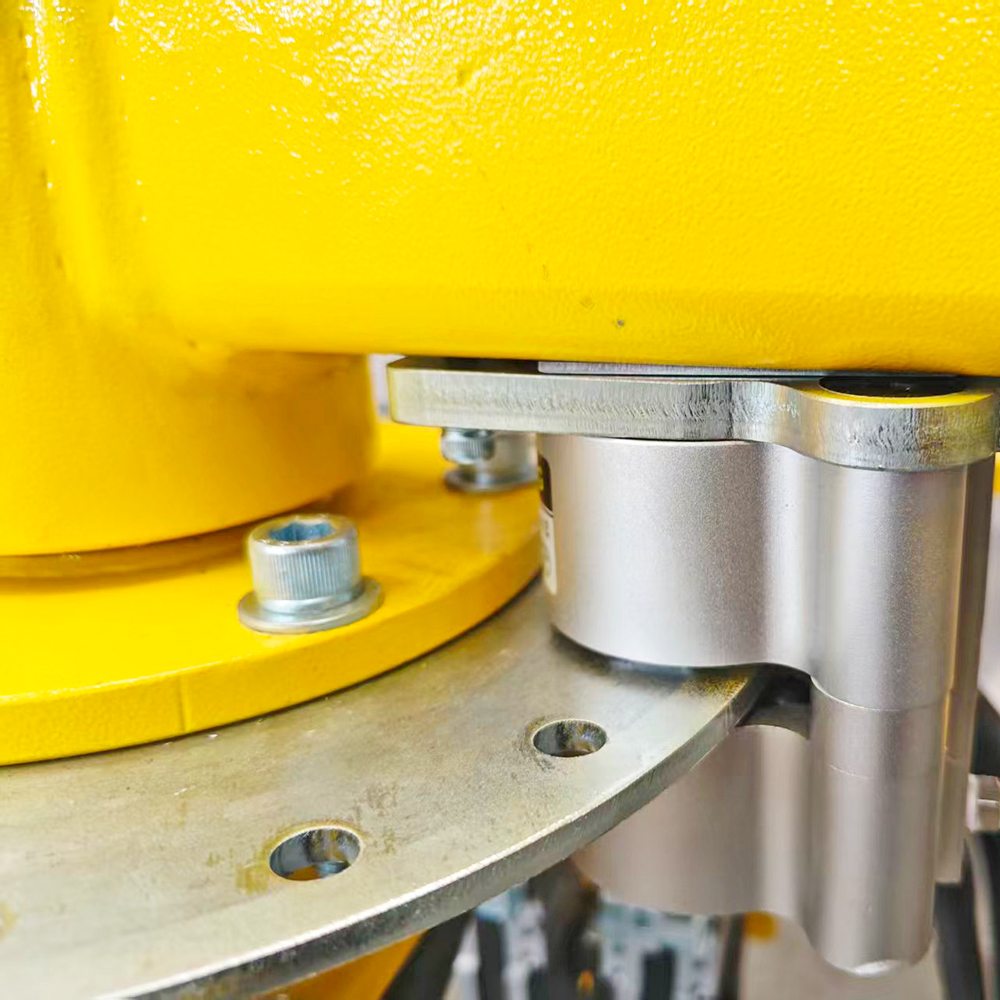

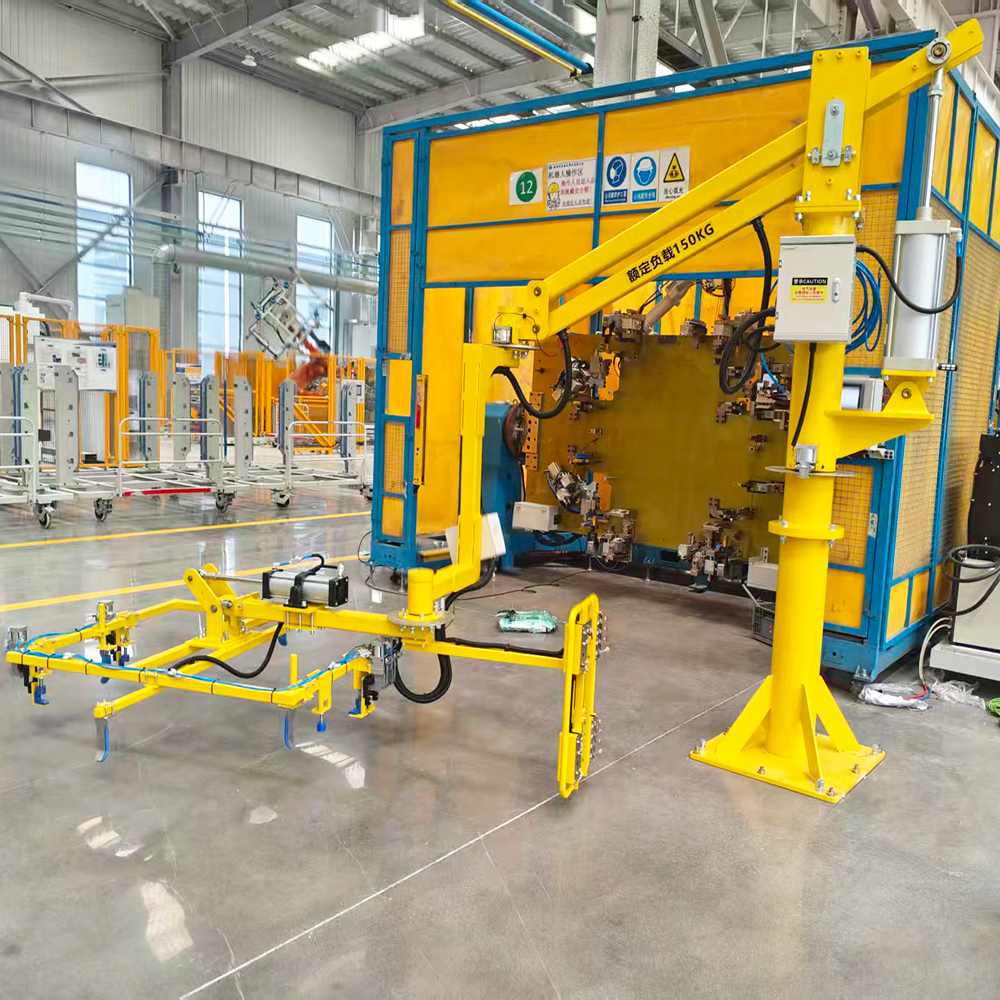

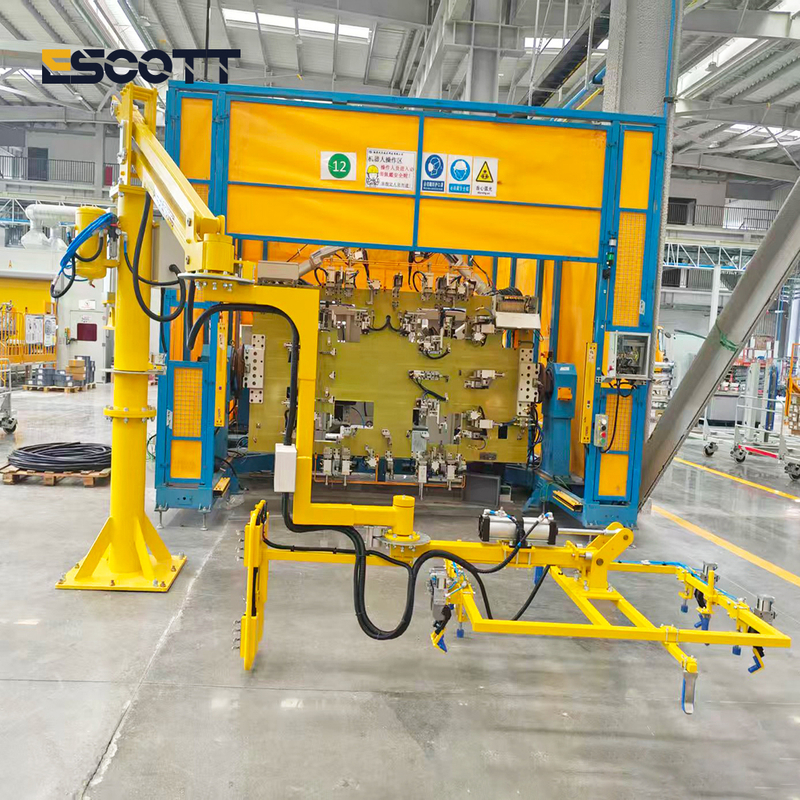

150kg Pneumatic Manipulator with Customized Fixture for Material Handling

Load Capacity : 150 kg
Drive Type : Pneumatic
Working Radius : Customizable according to layout
Lifting Stroke : Customizable for different heights
Rotation Angle : 360° continuous rotation
Control Mode : Manual handle with pneumatic assistance

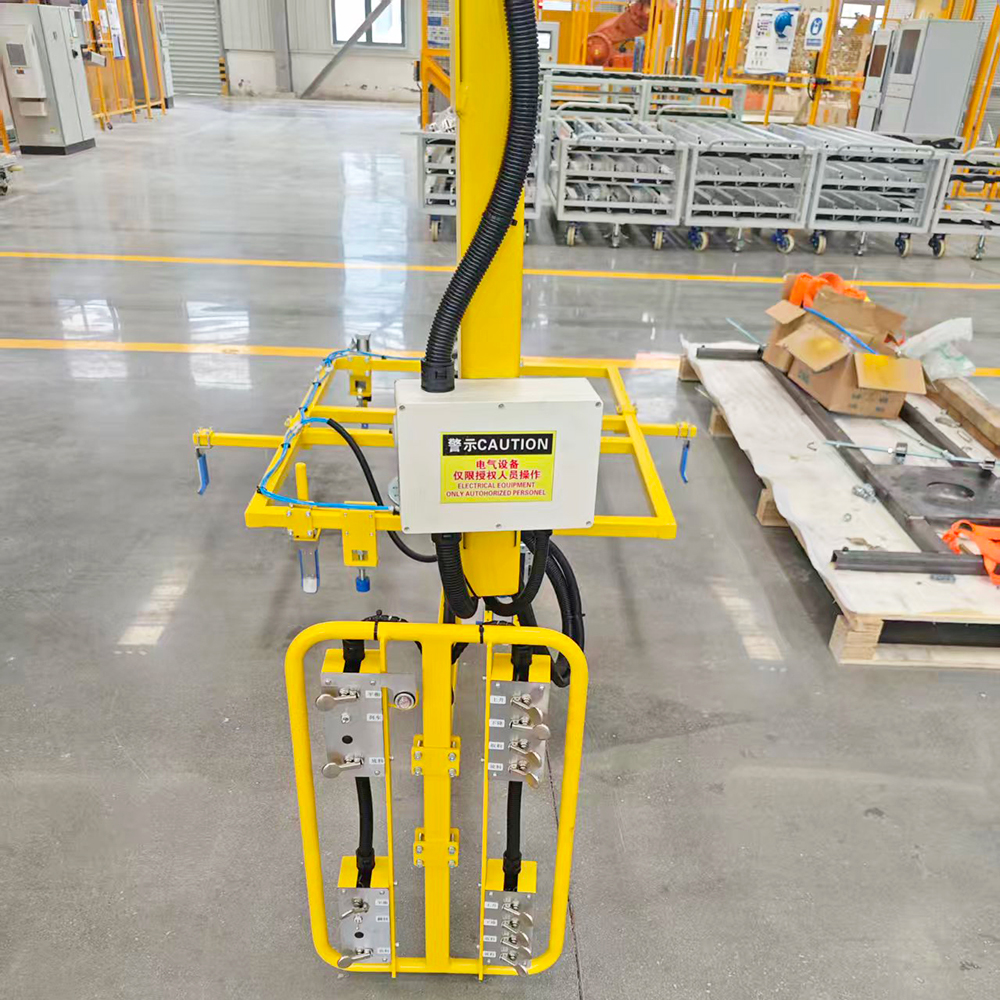

Fixture Type : Customized clamp / gripper
Installation Type : Floor-mounted column structure
Air Pressure : 0.6 – 0.8 MPa
Application : Loading, unloading, transfer, assembly

Availability:

Quantity:



Inquire Add to Basket

Model:
GR150-3023
Brand:
ESCOTT

Product Overview

The 150kg Loading and Unloading Pneumatic Manipulator with Customized Fixture is an advanced material handling solution designed to optimize industrial workflows. Combining a robust pneumatic balancing system with a precision-engineered articulated arm, it allows operators to lift, move, and position heavy or irregular workpieces with exceptional ease and control.

The customized fixture is specifically designed according to the shape, size, and handling requirements of your products, ensuring a secure grip and damage-free operation. By significantly reducing manual handling effort, this manipulator improves productivity, enhances workplace safety, and ensures consistent operational accuracy in demanding environments.

Technical Parameters

Item	Specification
Load Capacity	150 kg
Drive Type	Pneumatic
Working Radius	Customizable according to layout
Lifting Stroke	Customizable for different heights
Rotation Angle	360° continuous rotation
Control Mode	Manual handle with pneumatic assistance
Fixture Type	Customized clamp / gripper
Installation Type	Floor-mounted column structure
Air Pressure	0.6 – 0.8 MPa
Application	Loading, unloading, transfer, assembly

Key Features

Introduction

1. High Load Capacity with Stability
Capable of handling up to 150kg, the manipulator maintains smooth and stable performance even during continuous operation, ensuring reliability in high-intensity production environments.

2. Customized Fixture for Precision Handling

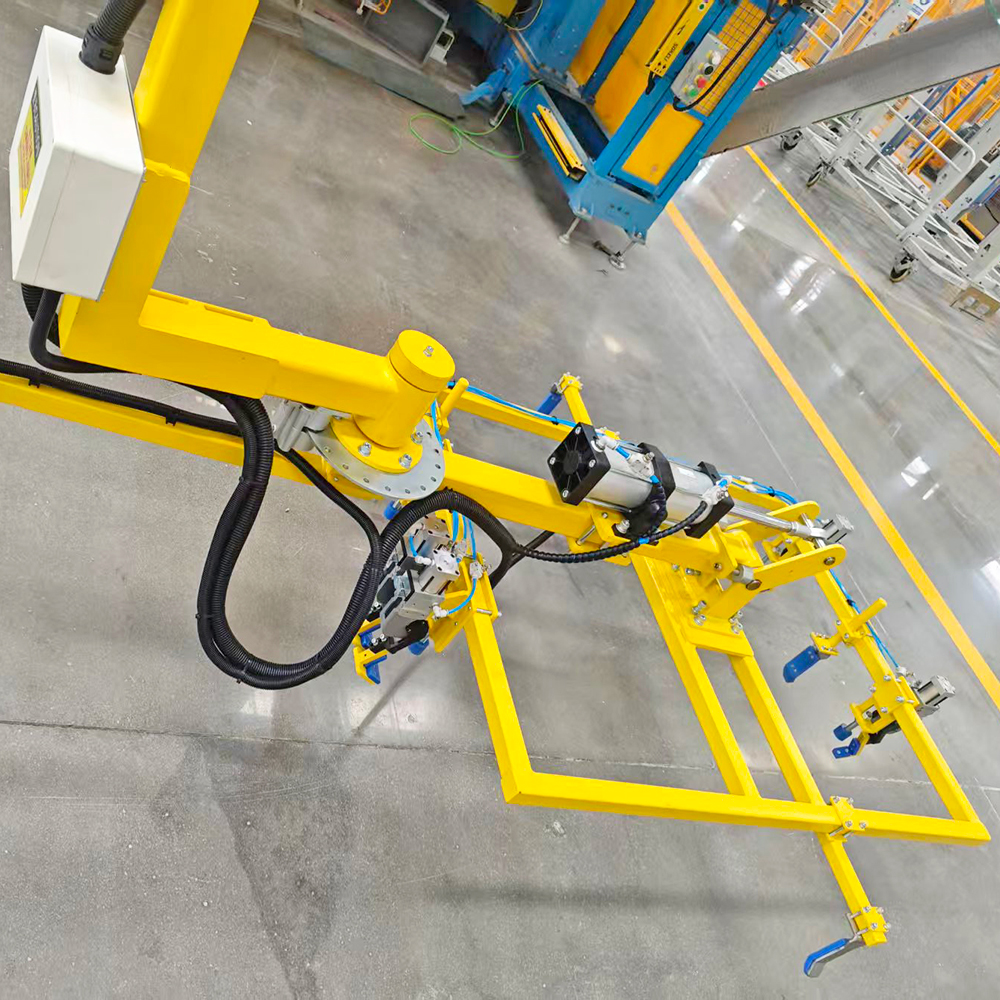

The end-effector is fully customized to match your specific workpieces, enabling secure gripping of irregular, delicate, or complex components without deformation or slipping.

3. Flexible Multi-Axis Movement
The articulated arm design allows for free movement in multiple directions, including lifting, rotation, and horizontal transfer, ensuring precise positioning in tight or complex workspaces.
4. Near Weightless Operation
With advanced pneumatic balancing technology, operators can move heavy loads effortlessly, achieving a “floating” handling experience that greatly improves efficiency.
5. Enhanced Operational Safety
Reduces the risks associated with manual lifting, such as injuries and product damage, while ensuring stable load control throughout the entire handling process.

6. Ergonomic and User-Friendly Design
The intuitive control handle allows operators to quickly learn and operate the system, minimizing fatigue during long working hours and improving overall comfort.
7. Heavy-Duty and Durable Structure
Built with high-quality steel and precision components, the manipulator ensures long service life, strong rigidity, and resistance to industrial wear and tear.

8. Versatile Application Compatibility
Suitable for a wide range of industries and workpieces, including metal parts, automotive components, panels, and assemblies.

9. Low Maintenance and High Reliability
The pneumatic system is simple in structure, reducing maintenance complexity while ensuring consistent and reliable long-term performance.

Applications

APPLICATION

This area can be fully edited and gives you the opportunity to introduce yourself, your website, your products or your services.

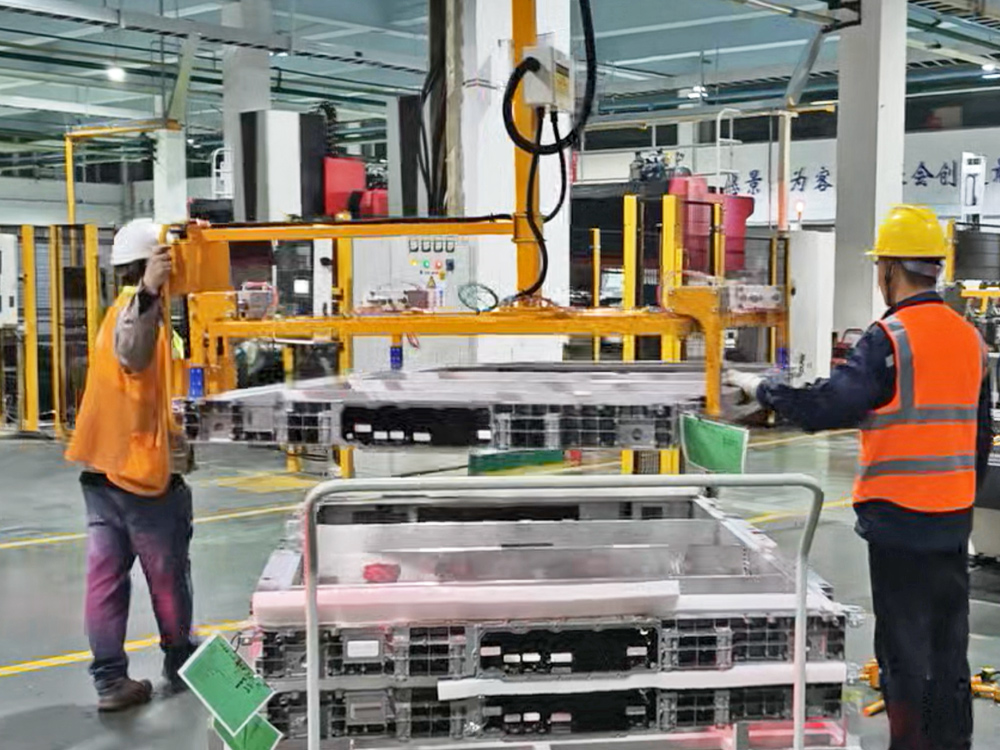

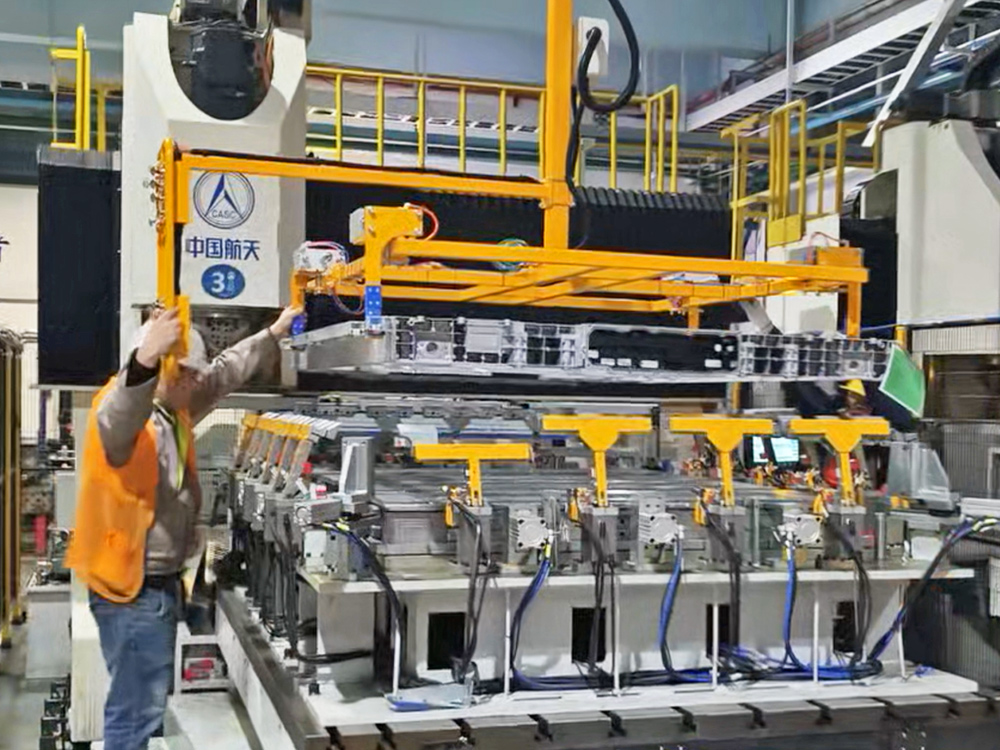

Automotive Manufacturing

Ideal for handling engine parts, chassis components, and other automotive assemblies, ensuring precise positioning and efficient production flow.

CNC Machine Loading & Unloading

Improves efficiency by enabling quick and accurate transfer of parts into and out of CNC machines, reducing cycle time and manual effort.

Metal Processing Industry

Perfect for lifting and moving sheet metal, steel plates, and fabricated components, especially those with large sizes or irregular shapes.

After-Sales Service

After-Sales Service

Quick response within 24 hours to resolve any technical issues and ensure continuous operation.

Responsive Technical Service
Quick response within 24 hours
We provide professional consultation to help you select the most suitable configuration based on your application needs.

Pre-Sales Engineering Support
provide professional consultation
Detailed guidance and optional on-site assistance ensure quick installation and smooth operation.

Installation & Training Support
Detailed guidance and optional
Full customization available, including fixtures, arm length, and system layout to match your production requirements.

Customization Capability
Full customization available
