GR250-3022
ESCOTT
Product Description

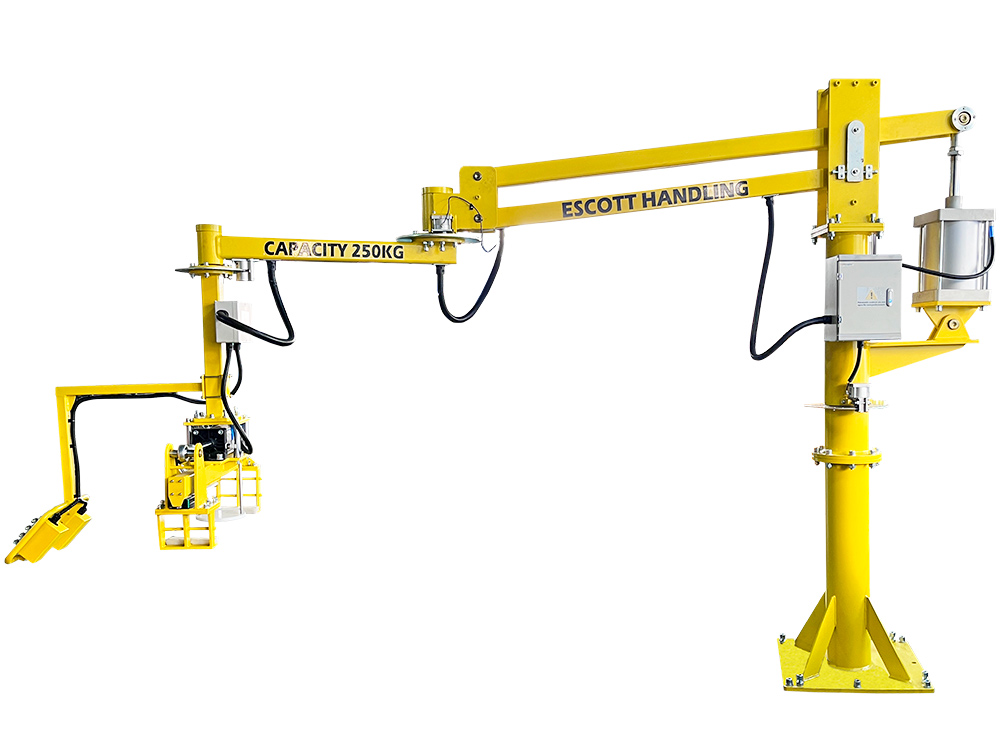

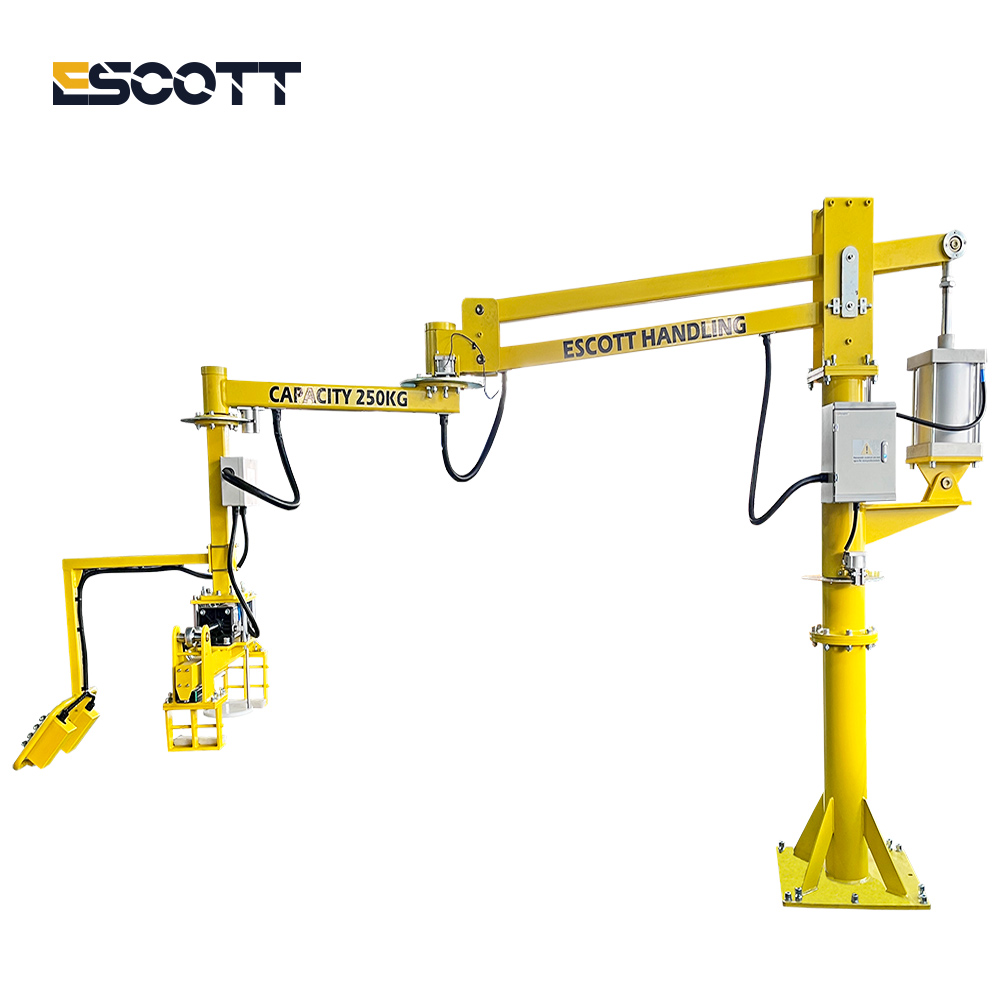

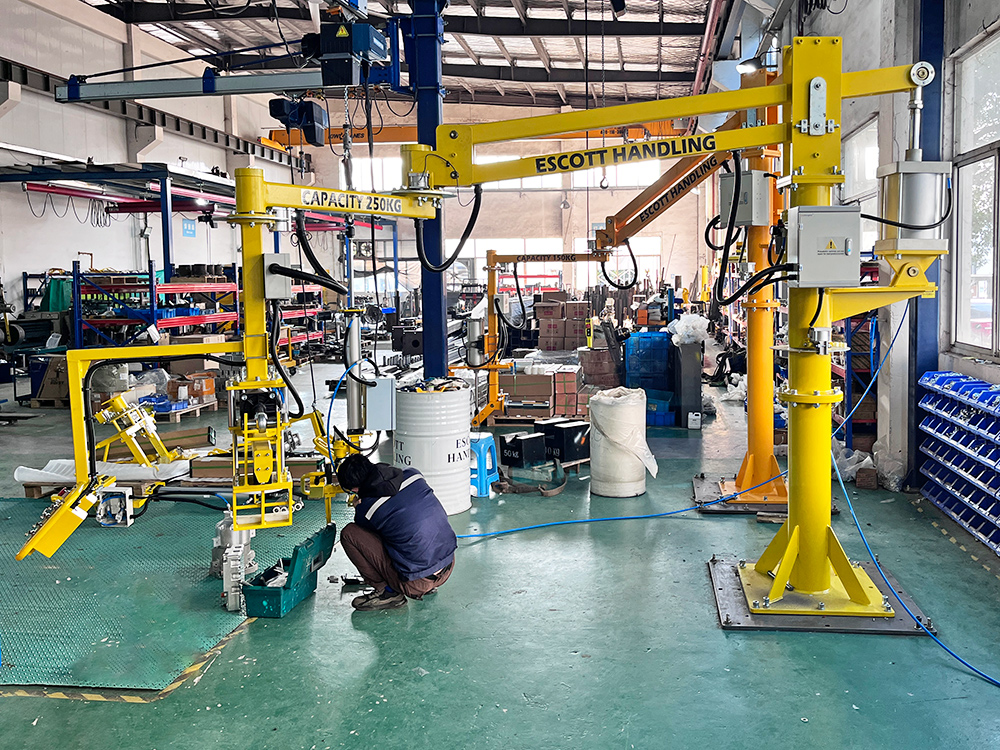

The 250kg Industrial Pneumatic Manipulator with External Clamp for Water Bucket Handling is designed for safe, efficient, and ergonomic lifting and handling of heavy water buckets and liquid containers. Equipped with a pneumatic balance system and a robust external clamping gripper, it allows operators to lift, move, rotate, and position buckets smoothly with minimal effort. This manipulator significantly reduces labor intensity while improving workplace safety and productivity across various industrial applications.
| Item | Specification |
|---|---|
| Rated Load Capacity | ≤ 250 kg |
| Drive Type | Pneumatic balancing system |
| Working Air Pressure | 0.6 – 0.8 MPa |

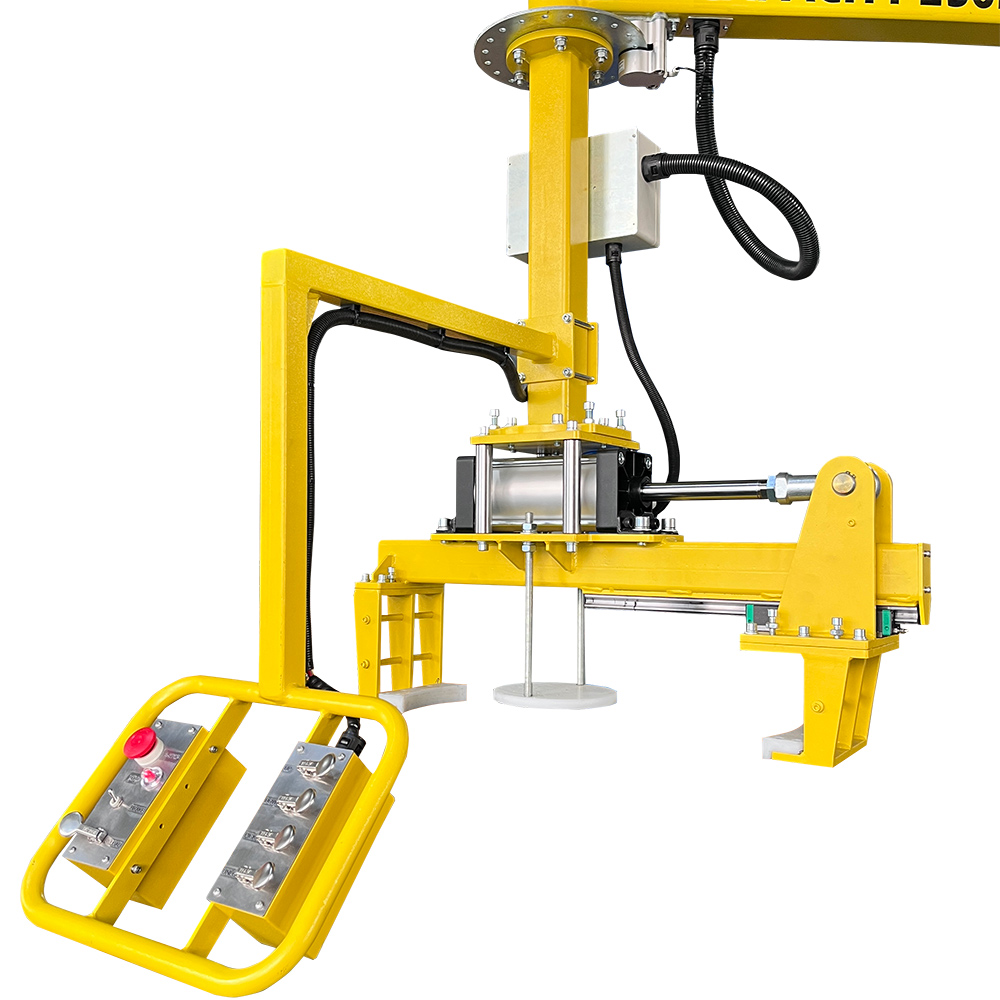

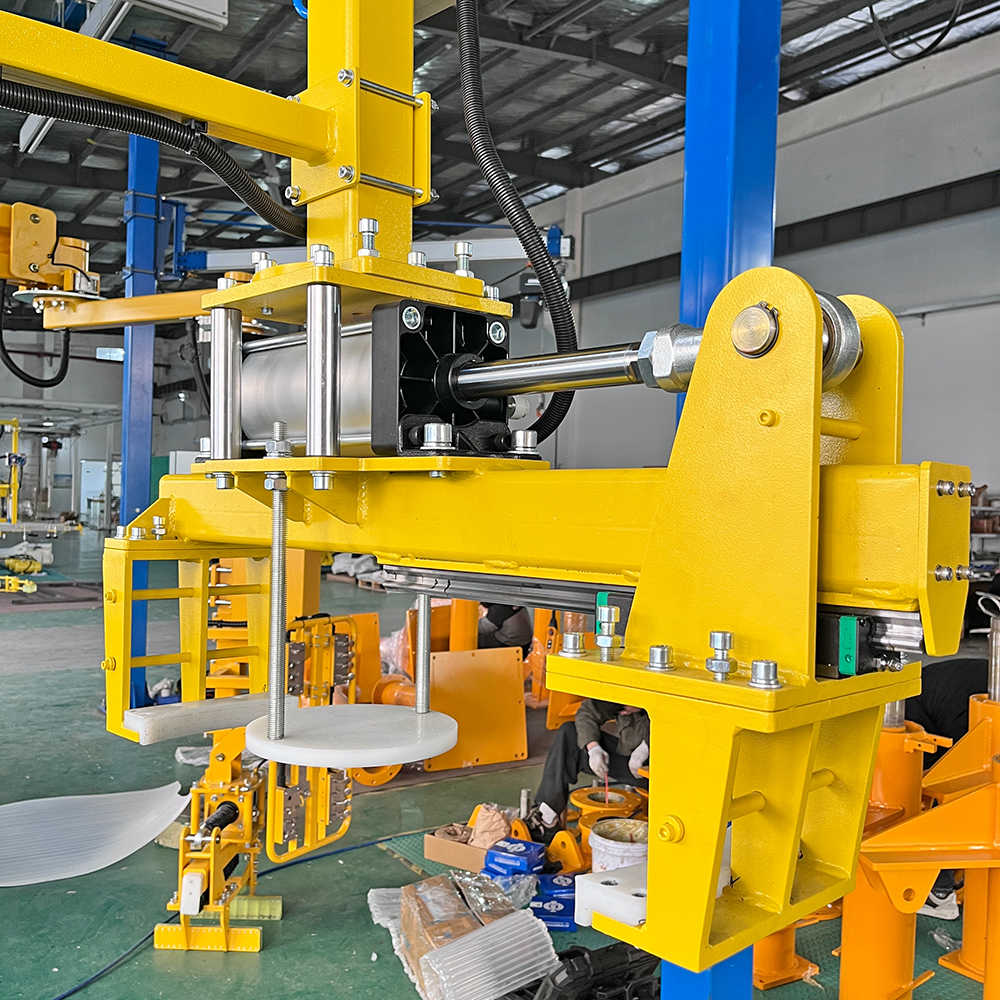

| Gripping Type | External mechanical clamp |
| Applicable Bucket Diameter | Ø300 – Ø600 mm (customizable) |
| Vertical Lifting Stroke | 1600 mm (customizable) |

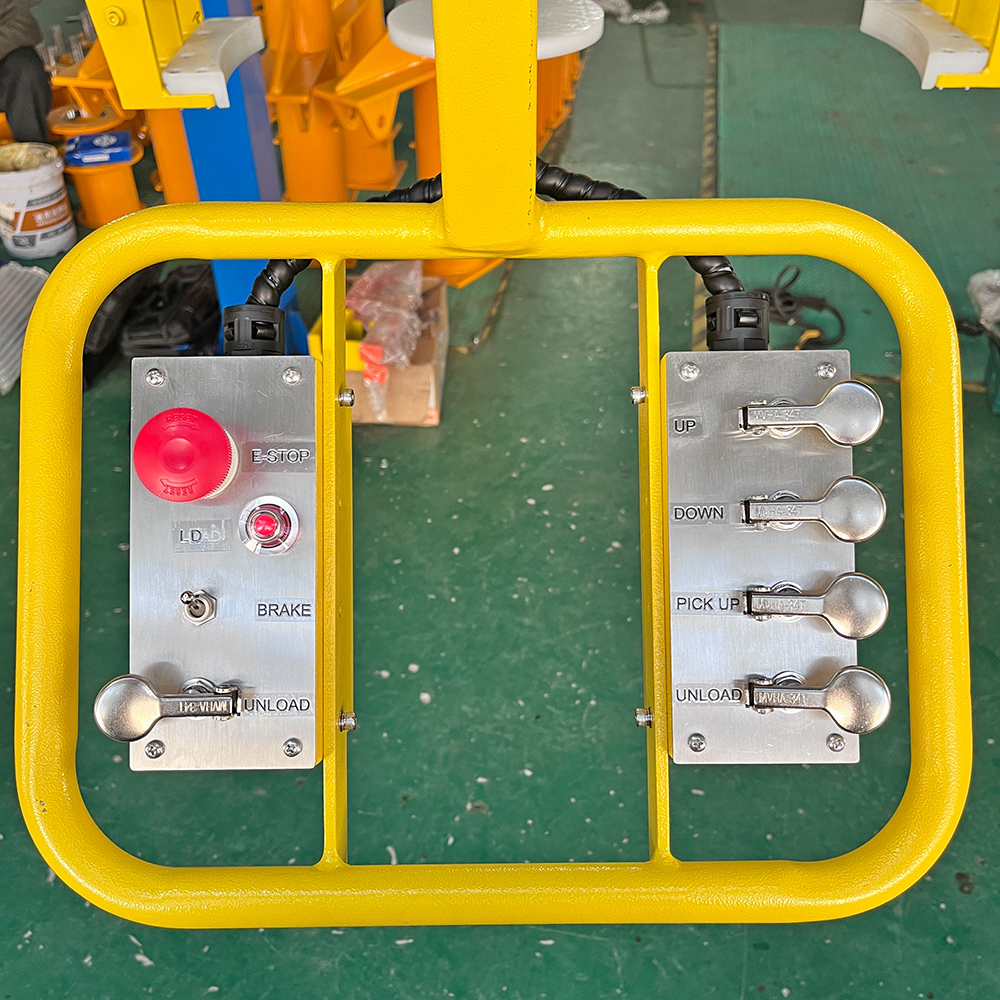

| Control Method | Handle-mounted pneumatic buttons |
| Horizontal Rotation | Up to 360° |
| Tilting Function | Optional 90° / 180° |
| Positioning Accuracy | ±5 mm |
| Safety Protection | Anti-drop valve, air-loss protection |
| Installation Options | Column-mounted / Jib-mounted / Rail-mounted |
1. High Load Capacity – Handles up to 250kg, suitable for fully filled water and liquid buckets.
2. Pneumatic Zero-Gravity Balance – Enables smooth, effortless lifting and lowering with precise control.

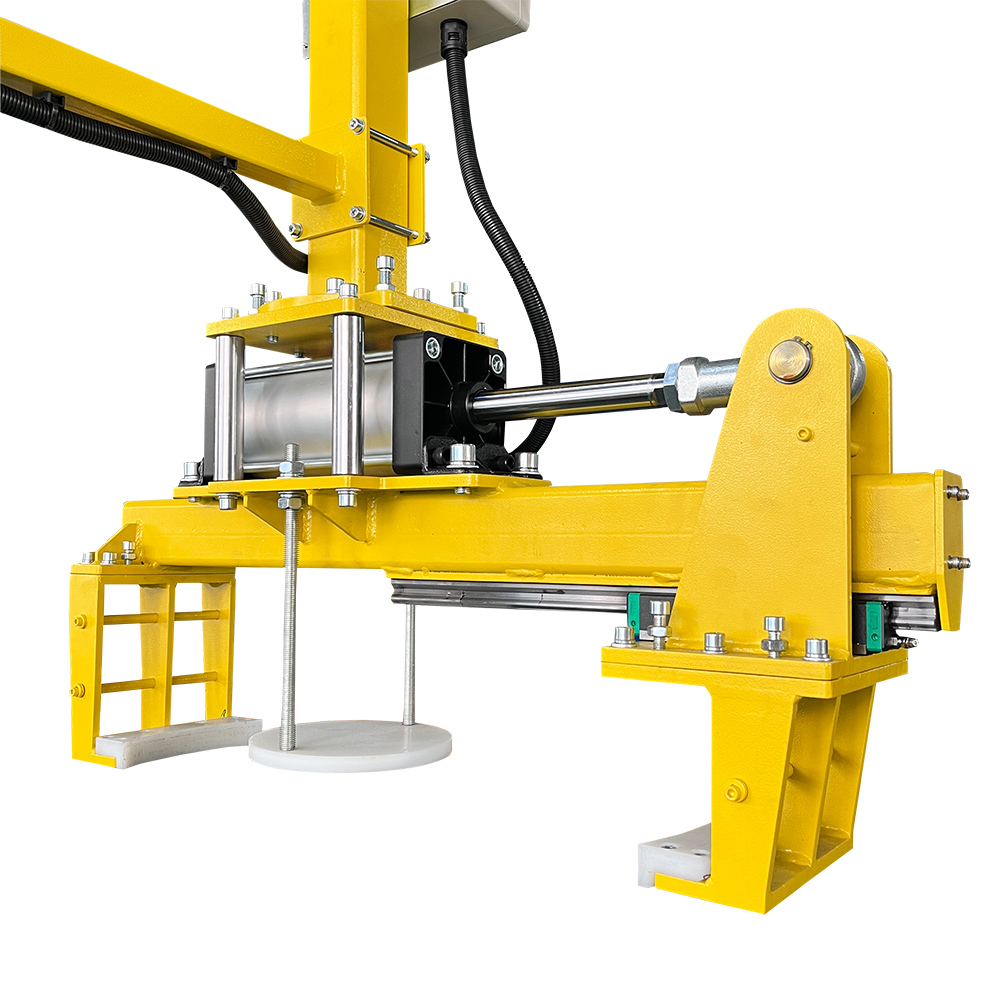

3. External Clamp Design – Secure gripping without contact with internal contents, ideal for liquid handling.
4. Ergonomic Operation – Intuitive handle controls reduce operator fatigue and training time.
5. Accurate Positioning – Fine-motion control allows precise alignment with pallets or filling lines.
6. Multi-Directional Movement – Supports vertical, horizontal, and rotational movements for flexible operation.
7. Enhanced Safety – Automatic load holding in case of air pressure loss prevents accidental dropping.
8. Customizable Configuration – Gripper size, stroke, rotation, and mounting type can be tailored to site needs.
9. Low Maintenance – Durable pneumatic components ensure long service life with minimal upkeep.
1. Chemical Industry – Handling and transferring chemical liquid drums and water buckets.
2. Food & Beverage – Hygienic lifting of ingredient buckets and processing containers.
3. Paint & Coatings – Safe movement of heavy paint, resin, and ink buckets.
4. Manufacturing Lines – Loading and unloading water buckets between pallets and workstations.
5. Warehouse & Logistics – Stacking, depalletizing, and internal transport of bucketed materials.
