GR50-3010
ESCOTT
Product Description

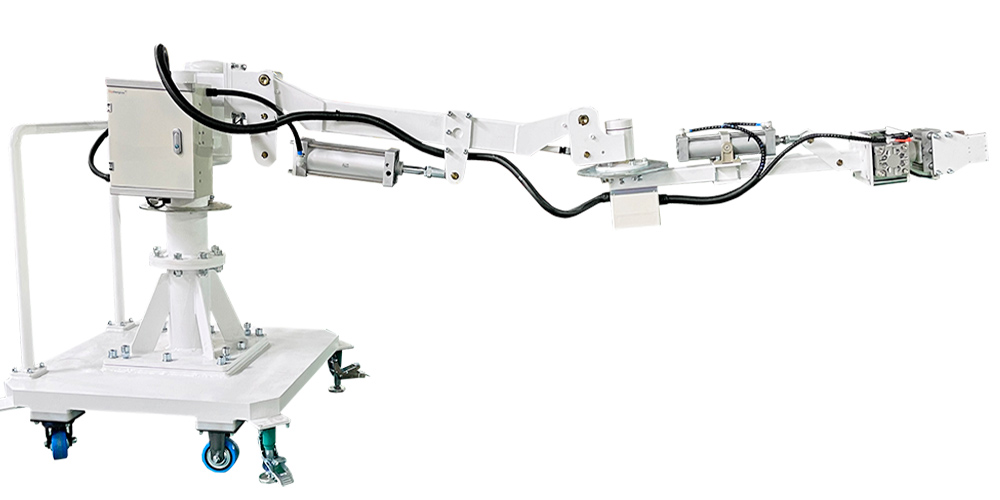

The 50kg Mini Robot Arm with Rotating Function is a compact and efficient material handling device designed for lifting and positioning cylindrical bars in industrial environments. Using pneumatic balancing technology, the robot arm enables operators to move heavy bars smoothly with minimal effort. The rotating function allows the workpiece to be easily adjusted to the required angle during handling or processing.
With its small footprint and flexible movement, this mini robot arm is ideal for CNC workshops, machining centers, and production lines where space is limited but efficient material handling is required. It improves productivity, reduces worker fatigue, and enhances operational safety.
| Parameter | Specification |
|---|---|
| Load Capacity | 50 kg |
| Equipment Type | Mini Pneumatic Robot Arm |
| Rotation Function | 360° manual rotation |
| Working Radius | 2–2.5 meters |
| Lifting Stroke | 1.5 meters |
| Control Method | Ergonomic handle control |
| Air Pressure | 0.6–0.8 MPa |
| Installation Type | Column mounted / Jib crane mounted |
| Gripper Type | Cylindrical bar clamp |
| Structure Material | High-strength steel |
| Surface Treatment | Industrial powder coating |
| Application | Cylindrical bar and rod handling |
1. Compact Mini Structure
The small-sized design makes the robot arm suitable for tight workspaces and small production areas.
2. Pneumatic Balanced Operation
The pneumatic balancing system provides smooth lifting and effortless positioning during handling tasks.
3. 360° Rotating Function
The rotating mechanism allows cylindrical bars to be easily adjusted to different angles during operation.
4. Efficient Material Handling
The robot arm improves work efficiency by enabling quick lifting and placement of cylindrical materials.

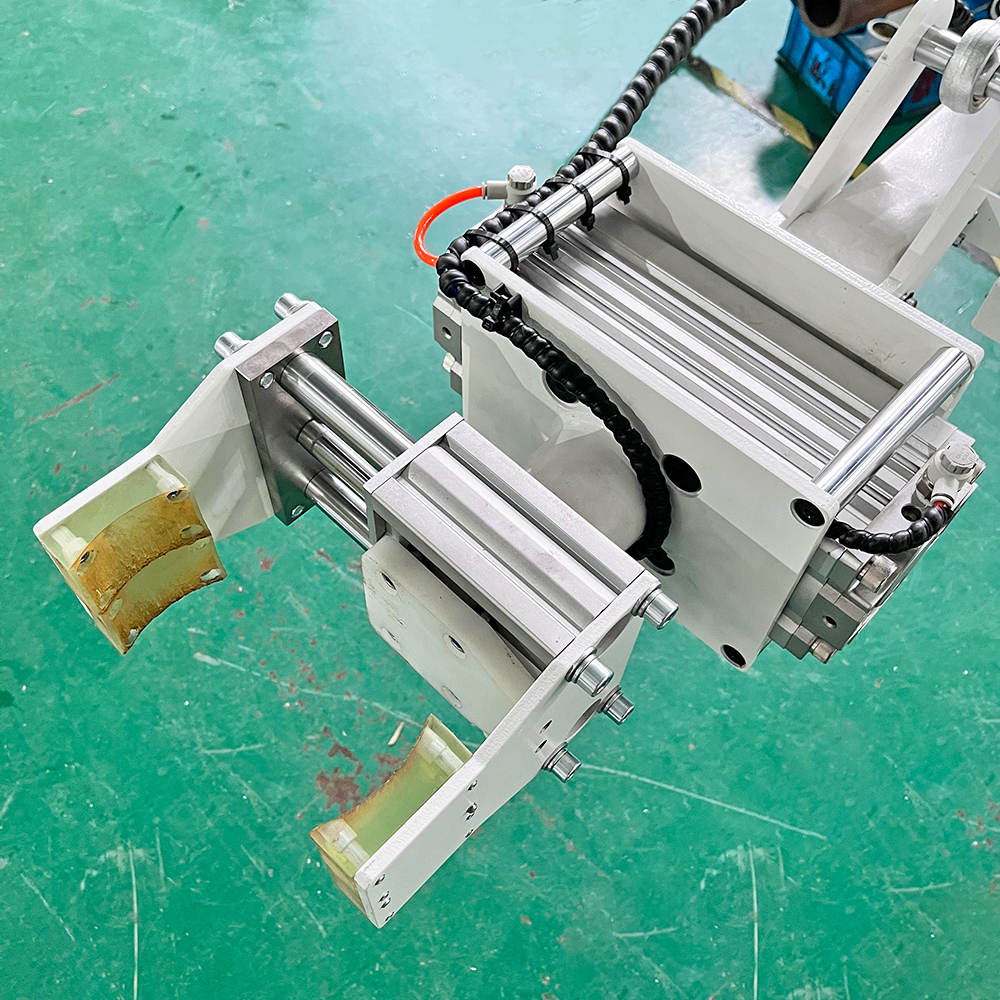

5. Specialized Bar Clamp
Equipped with a dedicated clamp designed to securely grip round bars and prevent slipping.
6. Ergonomic Control Handle
The handle control allows precise movement and easy operation for improved comfort and safety.
7. Flexible Installation Options
The system can be installed on a column or combined with a jib crane depending on workspace requirements.
8. Durable Industrial Construction
High-strength steel structure ensures long service life and reliable performance in industrial environments.
9. Improved Workplace Safety
Reduces the risk of worker injuries caused by manual lifting of heavy cylindrical materials.
1. CNC Machining Centers
Used for loading and unloading cylindrical bars into machining equipment.
2. Metal Processing Workshops
Efficiently transfers round bars between workstations.
3. Manufacturing Production Lines
Supports handling tasks during mechanical part production.
4. Shaft and Rod Handling
Suitable for lifting shafts, rods, and other cylindrical components.
5. Warehouse Material Handling
Assists with transporting cylindrical stock materials safely and efficiently.
