GR300-3022
ESCOTT
Product Description

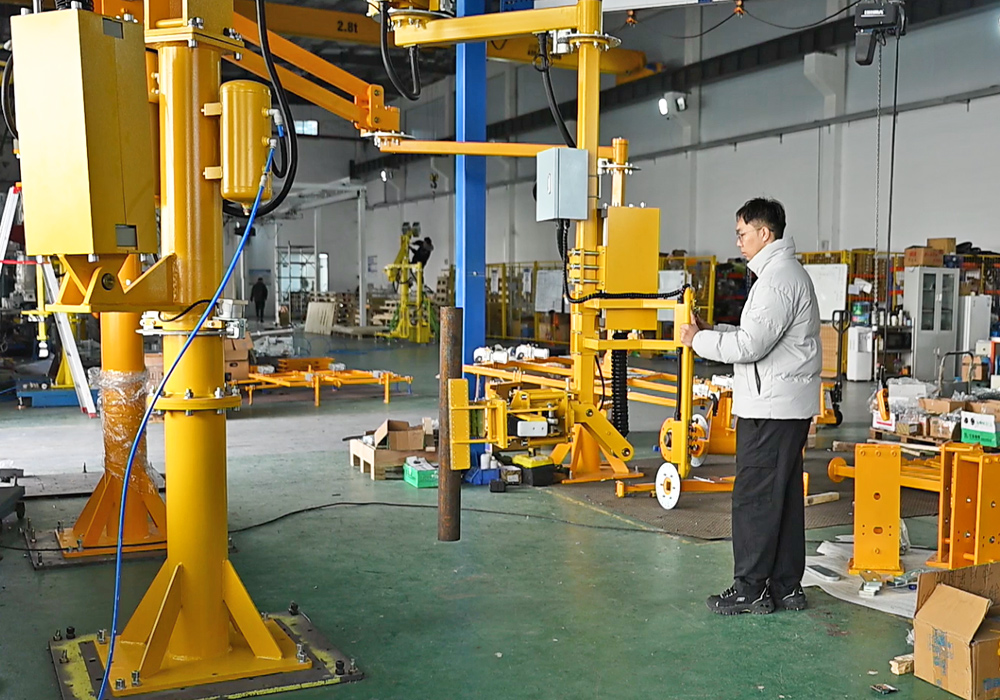

The 300kg Pneumatic Robotic Arm Lifter with External Grippers for Cylinder Bar Handling is a power-assisted handling device designed for repetitive lifting and positioning of heavy cylindrical workpieces.
It is intended to replace manual handling and conventional hoisting methods in applications where controlled movement, stability, and operator safety are critical.

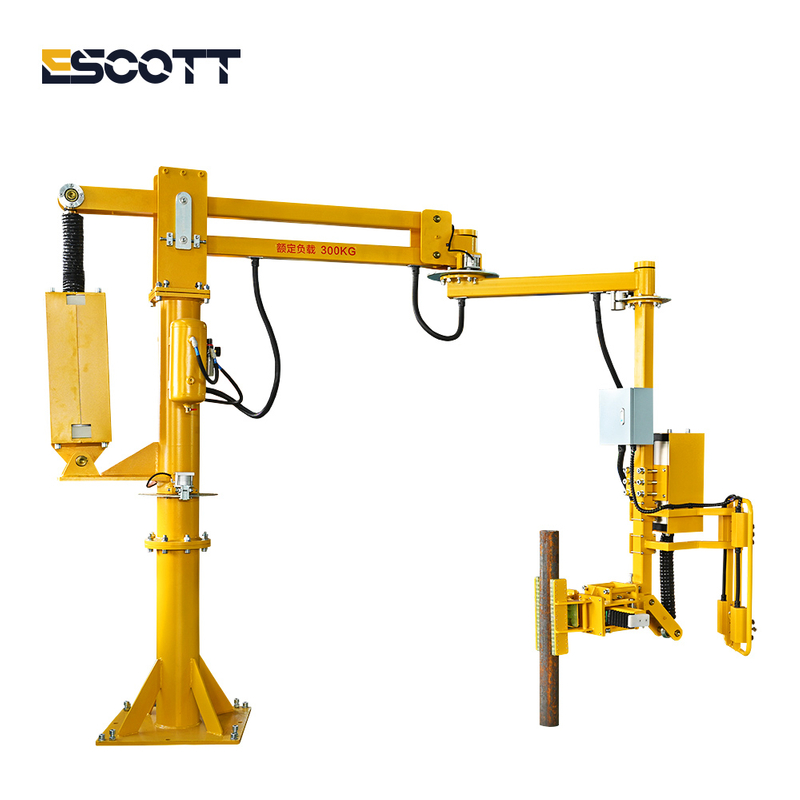

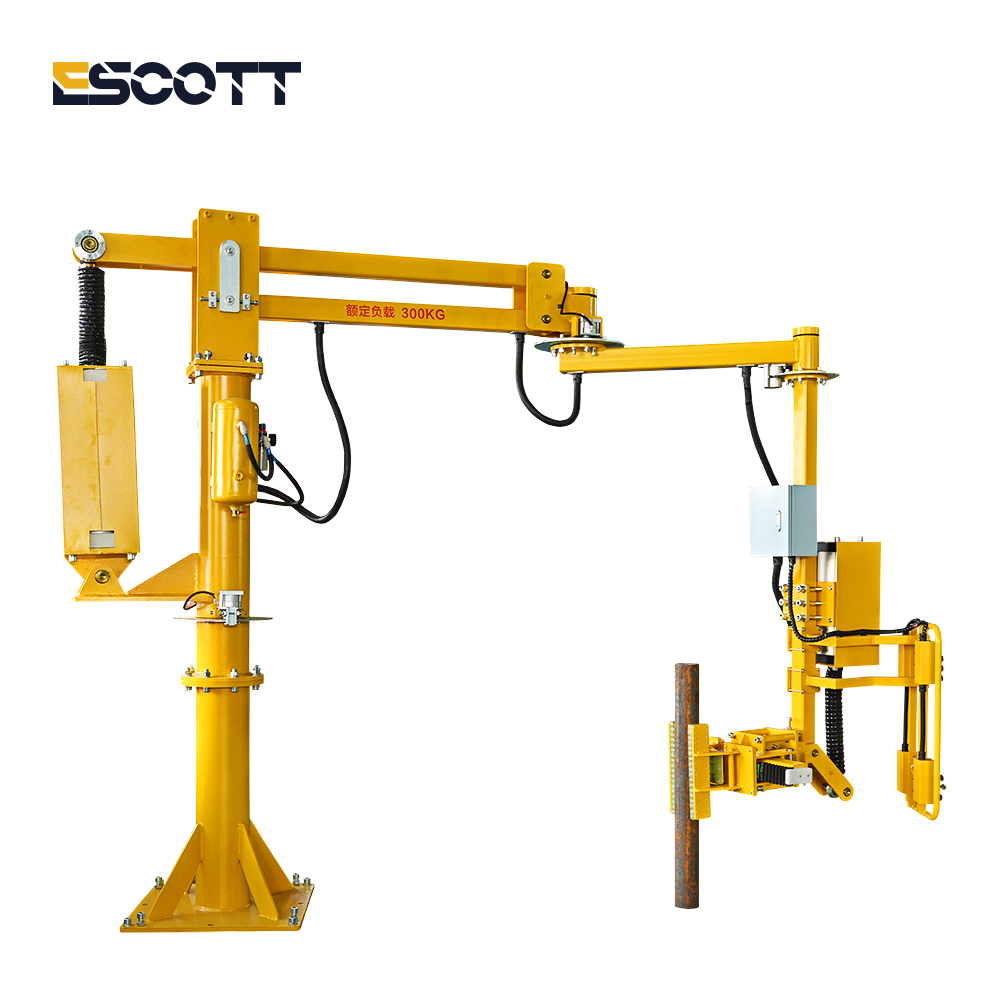

The system consists of a pneumatic balancing arm, a rigid support structure, and purpose-built external grippers for cylindrical bars. Through pneumatic load compensation, operators can guide heavy workpieces smoothly and accurately throughout the handling process, achieving consistent positioning with reduced physical strain.
| No. | Specification | Description |
|---|---|---|
| 1 | Rated Load Capacity | 300 kg |
| 2 | Handling System Type | Pneumatic power-assisted manipulator |
| 3 | Gripping Method | External grippers for cylindrical components |
| 4 | Vertical Travel | Up to 2,500 mm |
| 5 | Horizontal Reach | 1,200–3,500 mm |
| 6 | Rotation Capability | 360° arm rotation |

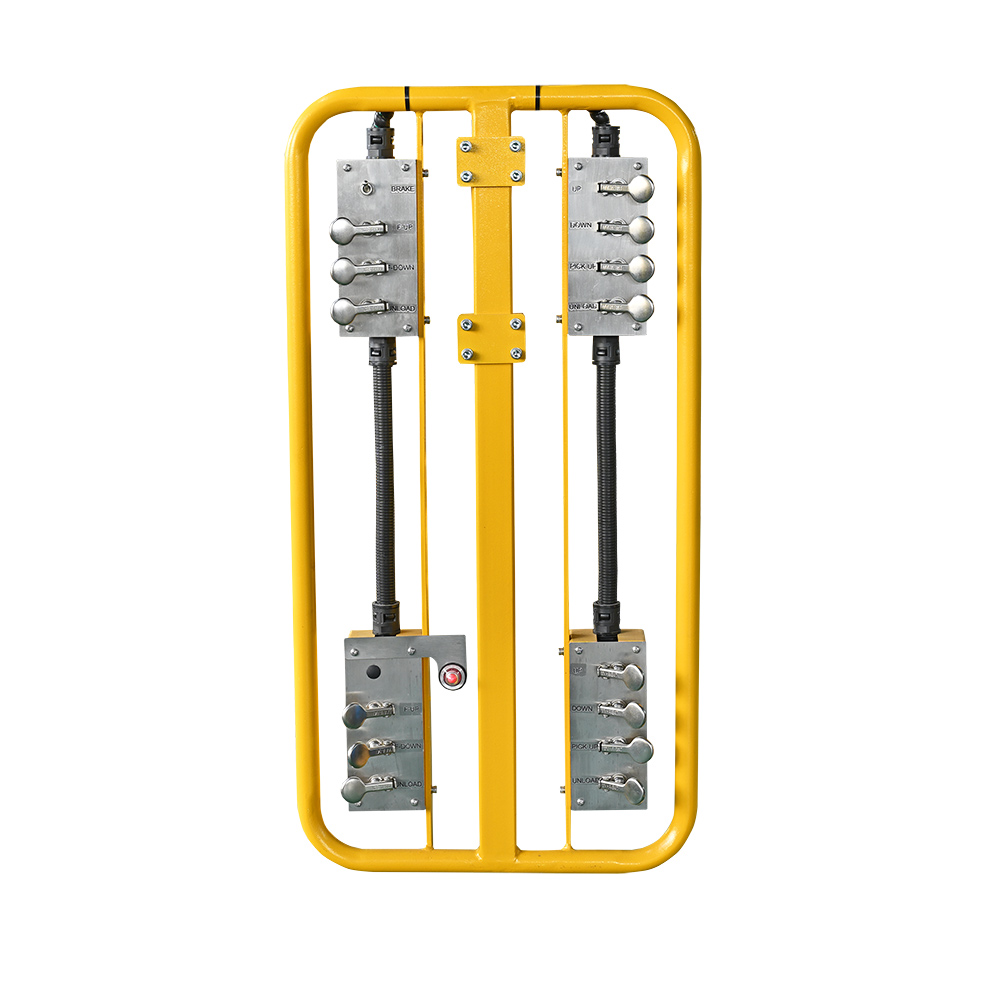

| 7 | Operation Interface | Handle-mounted pneumatic control |
| 8 | Installation Method | Fixed floor mount or mobile base |
| 9 | Operating Air Pressure | 0.6–0.8 MPa |
| 10 | Suitable Workpieces | Cylinder bars, shafts, pipes |
| 11 | Main Structural Material | Reinforced carbon steel |
| 12 | Surface Treatment | Industrial powder coating |
1. Pneumatic Load Compensation
The pneumatic system balances the load weight, enabling smooth lifting and lowering without sudden movements.

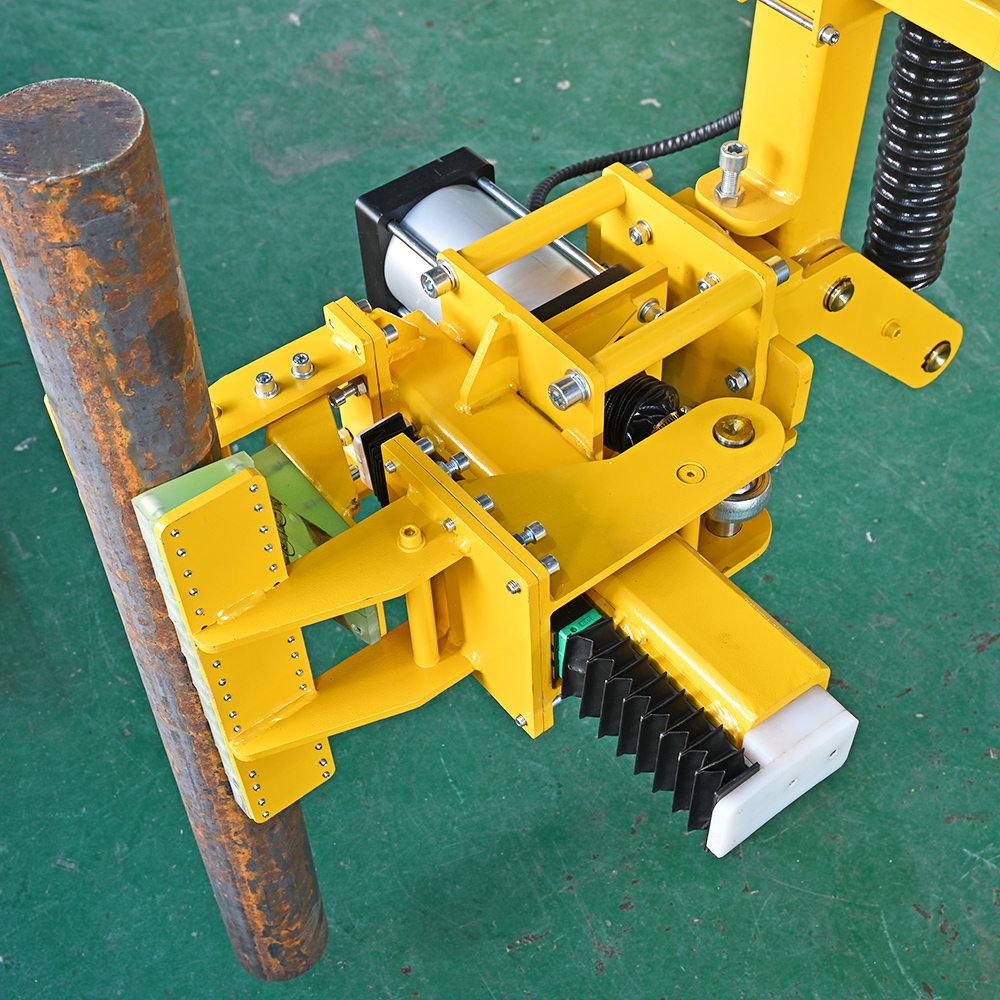

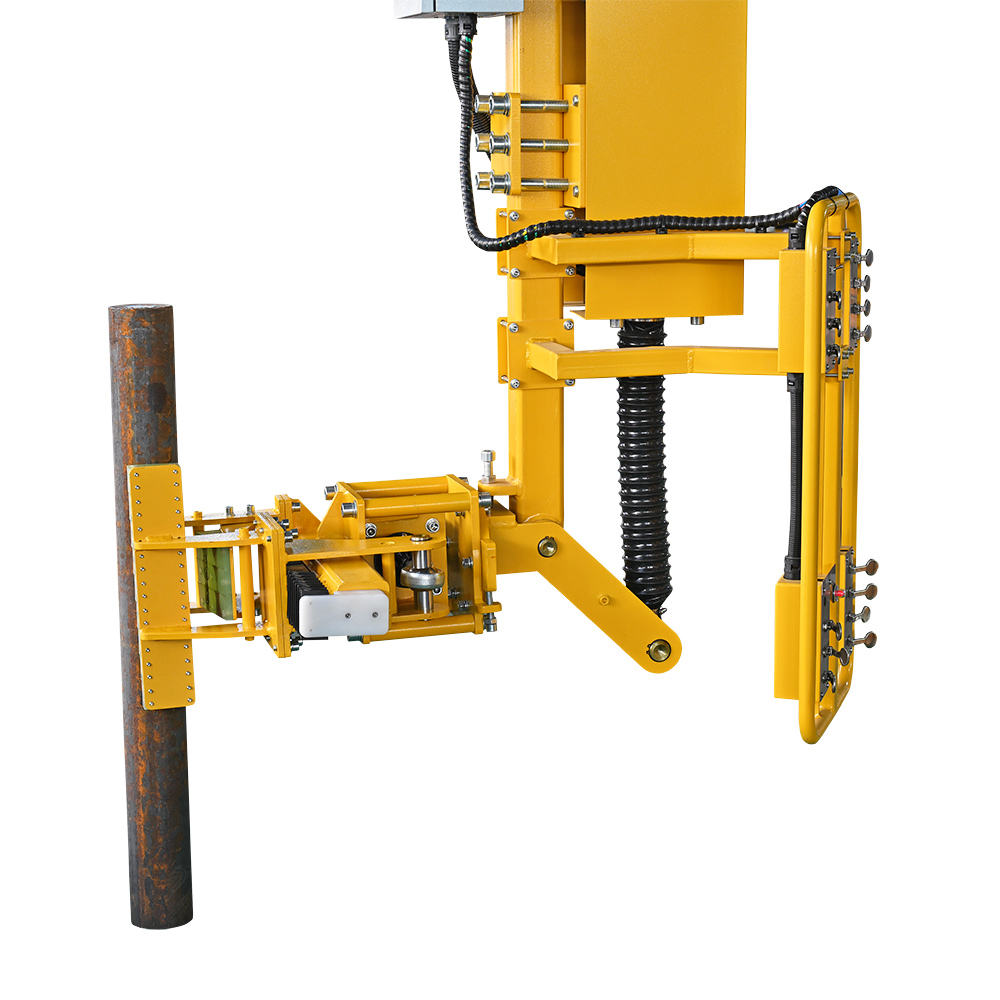

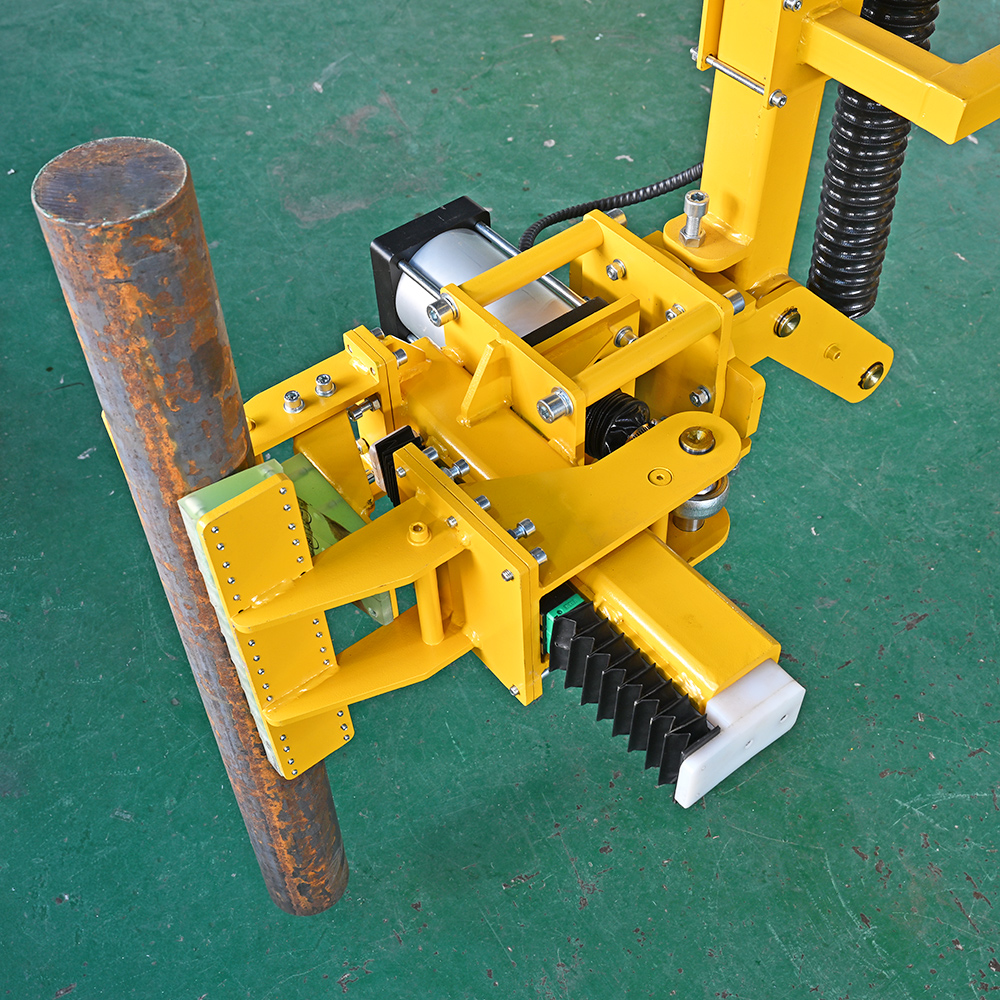

2. Dedicated Cylindrical Gripping Design
External grippers are engineered to clamp round workpieces securely, minimizing rotation or slipping during handling.
3. Manual-Guided Accuracy
Direct operator guidance allows precise alignment of cylindrical bars during loading, unloading, or placement.
4. Structural Rigidity Under Load
Reinforced arm and column design maintain stability when handling loads close to the rated capacity.
5. Large Working Envelope
Wide horizontal reach and full rotation reduce the need for repositioning the manipulator.
6. Flexible Installation Options
Can be integrated as a fixed workstation device or configured with a mobile base for multi-station use.
7. Application-Oriented Customization
Gripper size, jaw profile, and arm reach can be adapted to specific cylinder diameters and lengths.
8. Designed for Industrial Duty Cycles
Suitable for continuous operation in metalworking and heavy manufacturing environments.
9. Reduced Operator Risk
Minimizes manual lifting and supports compliance with workplace safety standards.
1. Round Bar Feeding Operations
Transferring cylinder bars from storage racks to processing machines.
2. Machining and Turning Centers
Loading and unloading shafts and cylindrical parts into lathes and CNC machines.
3. Pipe and Tube Production
Handling heavy cylindrical pipes during cutting, welding, or assembly.
4. Heat Treatment and Forging Lines
Moving cylindrical components between furnaces and work areas.
5. Internal Material Handling
Transporting cylindrical workpieces between production stages.
