GR50-3011
ESCOTT
Product Description

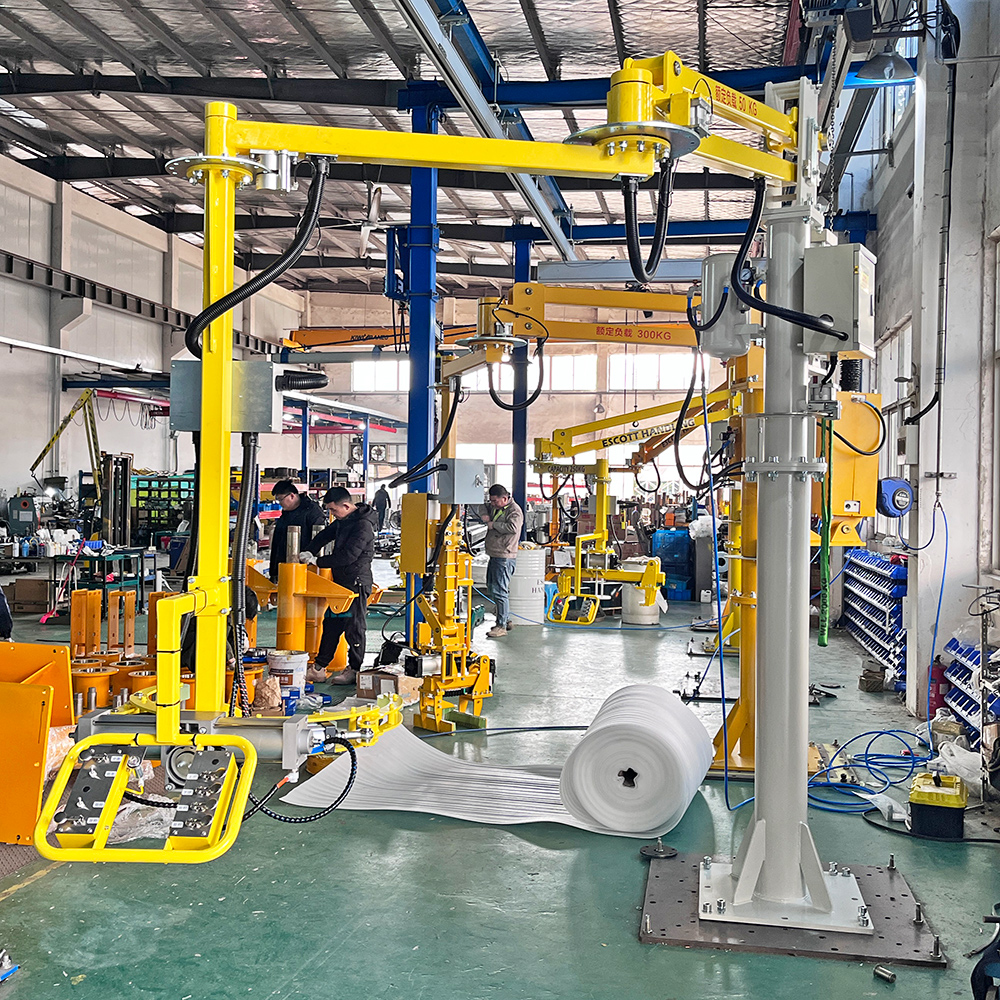

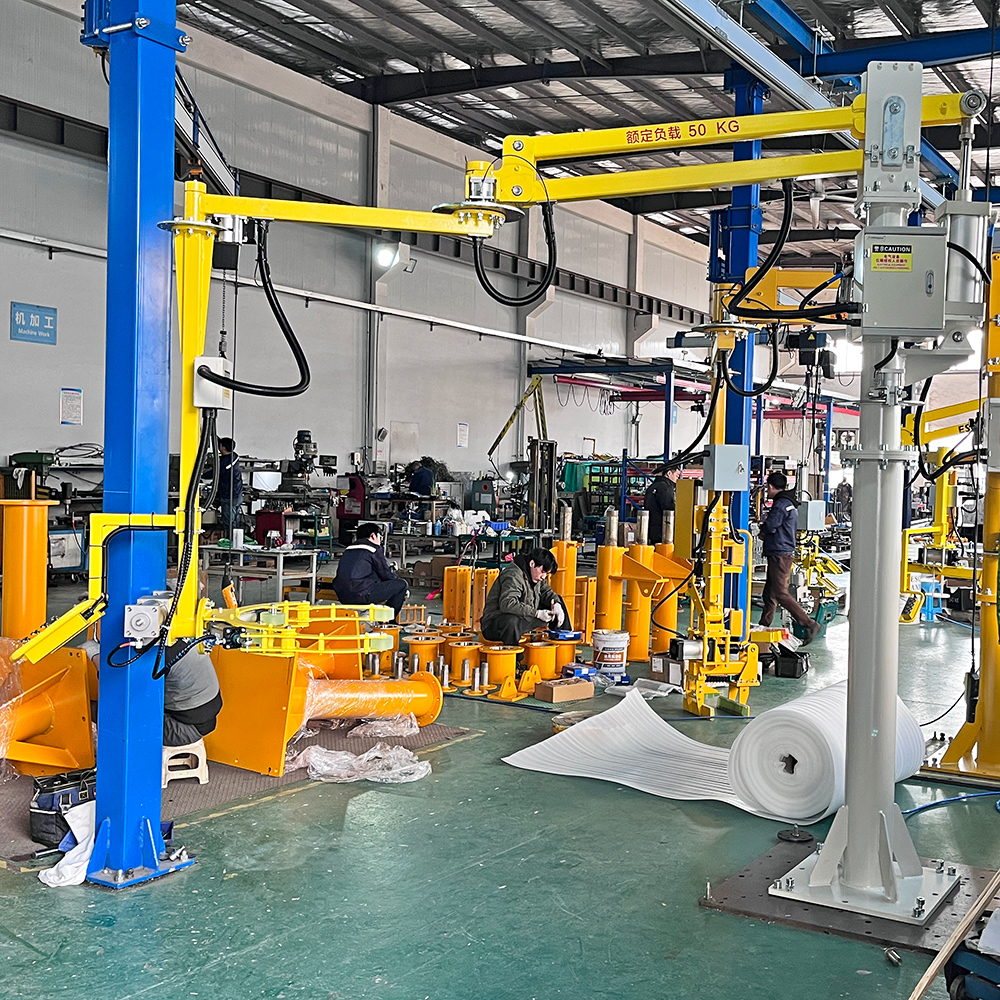

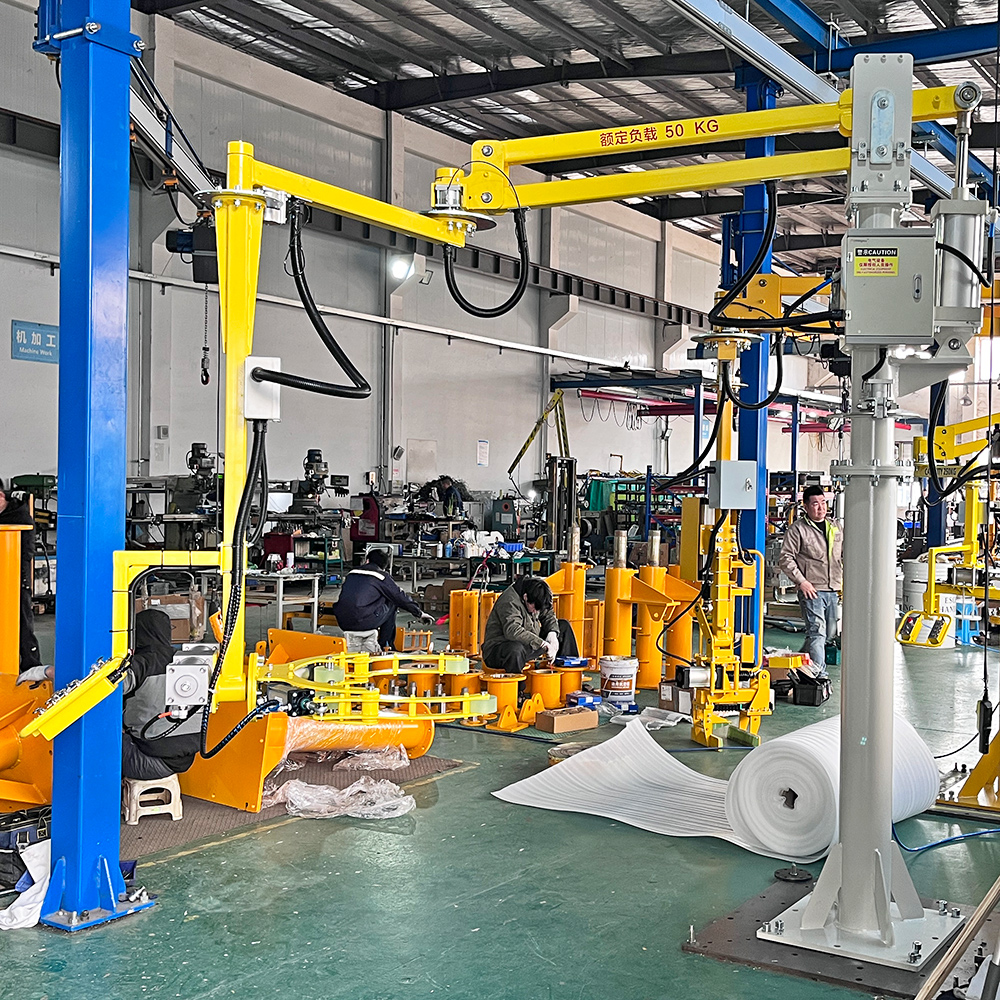

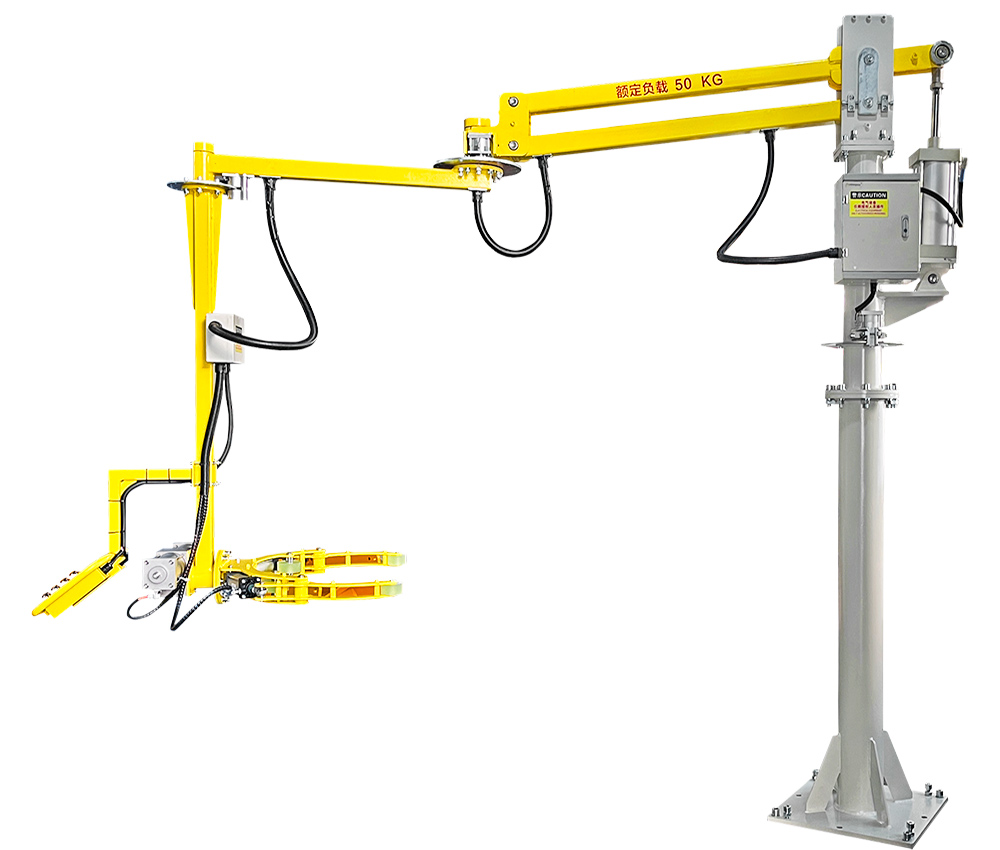

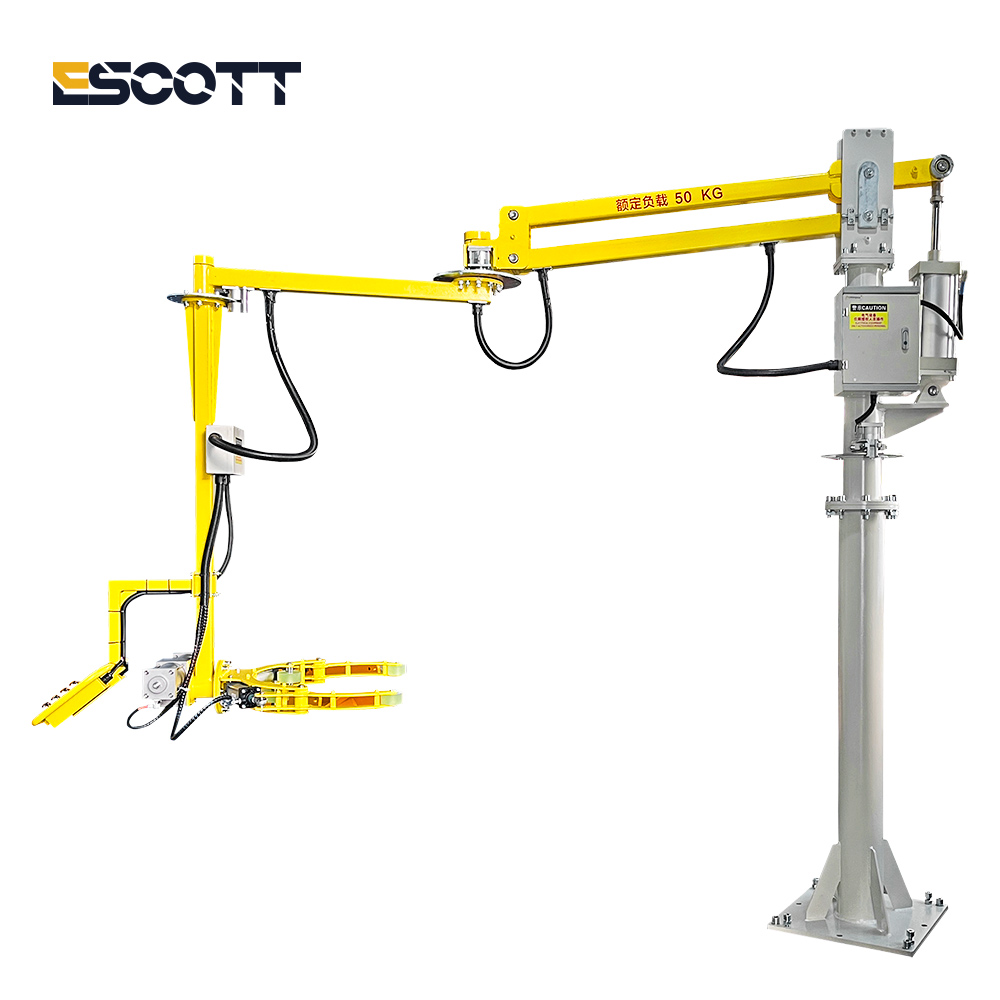

The 50kg External Clamping Handling Robot Arm for Assembling Circular Rings is a specialized ergonomic handling solution designed for lifting, positioning, and assembling circular metal rings. Featuring a customized external clamping gripper, the system ensures firm and damage-free gripping of circular workpieces during assembly operations.
With an intuitive control handle and balanced lifting system, the robot arm allows operators to move and position circular rings smoothly and accurately, significantly reducing manual labor, minimizing assembly errors, and improving overall production efficiency. It is ideal for repetitive handling tasks in metalworking and mechanical assembly environments.
| Parameter Item | Specification |
|---|---|
| Rated Load Capacity | 50 kg |
| Maximum Load Capacity | 60 kg |
| Applicable Workpiece Type | Circular iron rings |
| Applicable Ring Outer Diameter | 200–800 mm |
| Applicable Ring Thickness | 20–80 mm |
| Gripping Type | External clamping |
| Clamping Mode | Pneumatic |
| Lifting Stroke | 1200–2500 mm (customizable) |
| Rotation Function | Optional manual rotation |

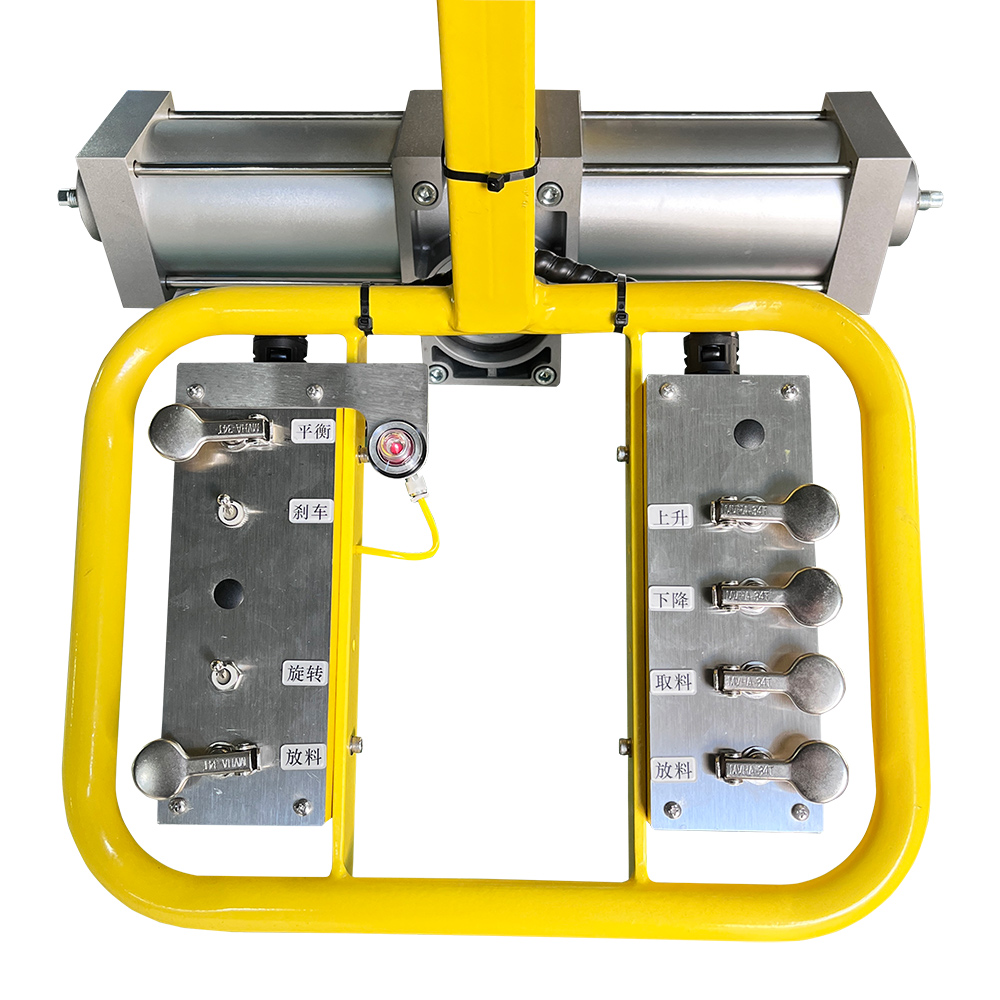

| Control Mode | Ergonomic handle with push buttons |
| Lifting Speed | 0–200 mm/s (adjustable) |
| Power Supply | AC 220V / 380V, 50–60 Hz |

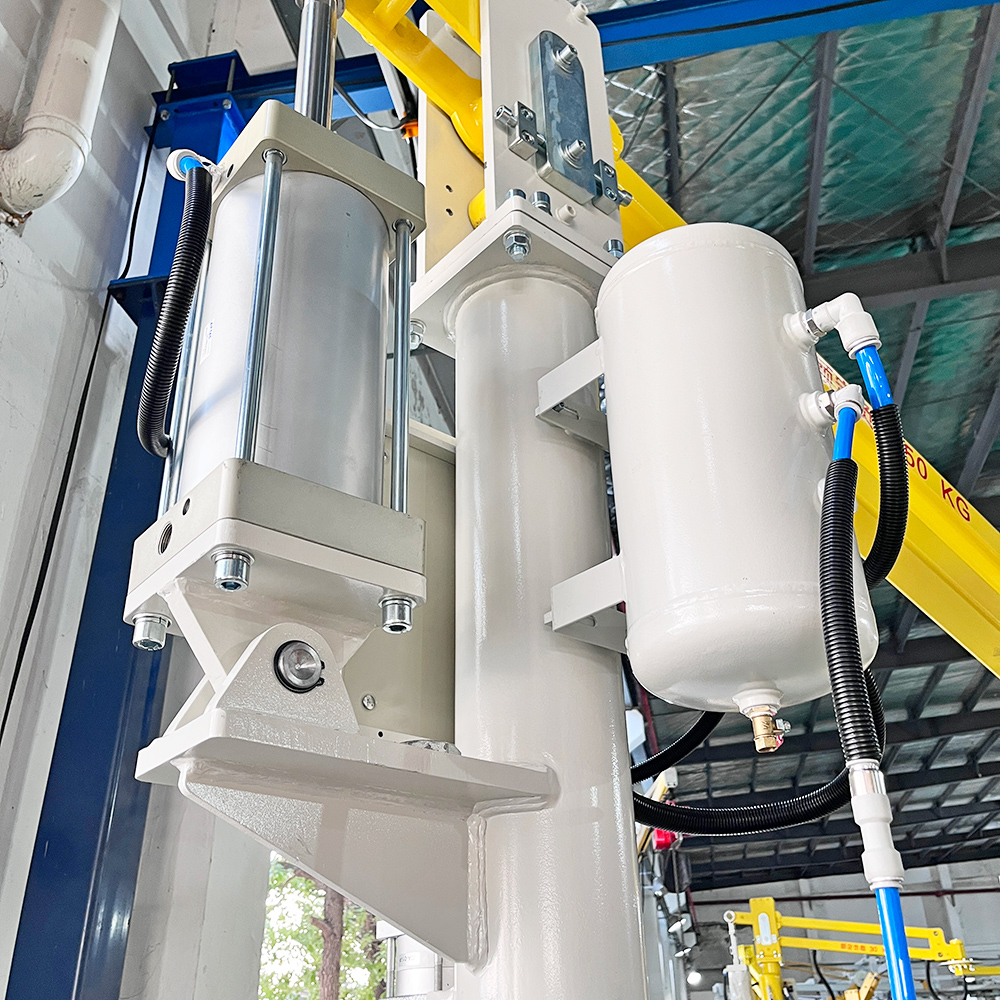

| Drive System | Pneumatic balancing system |

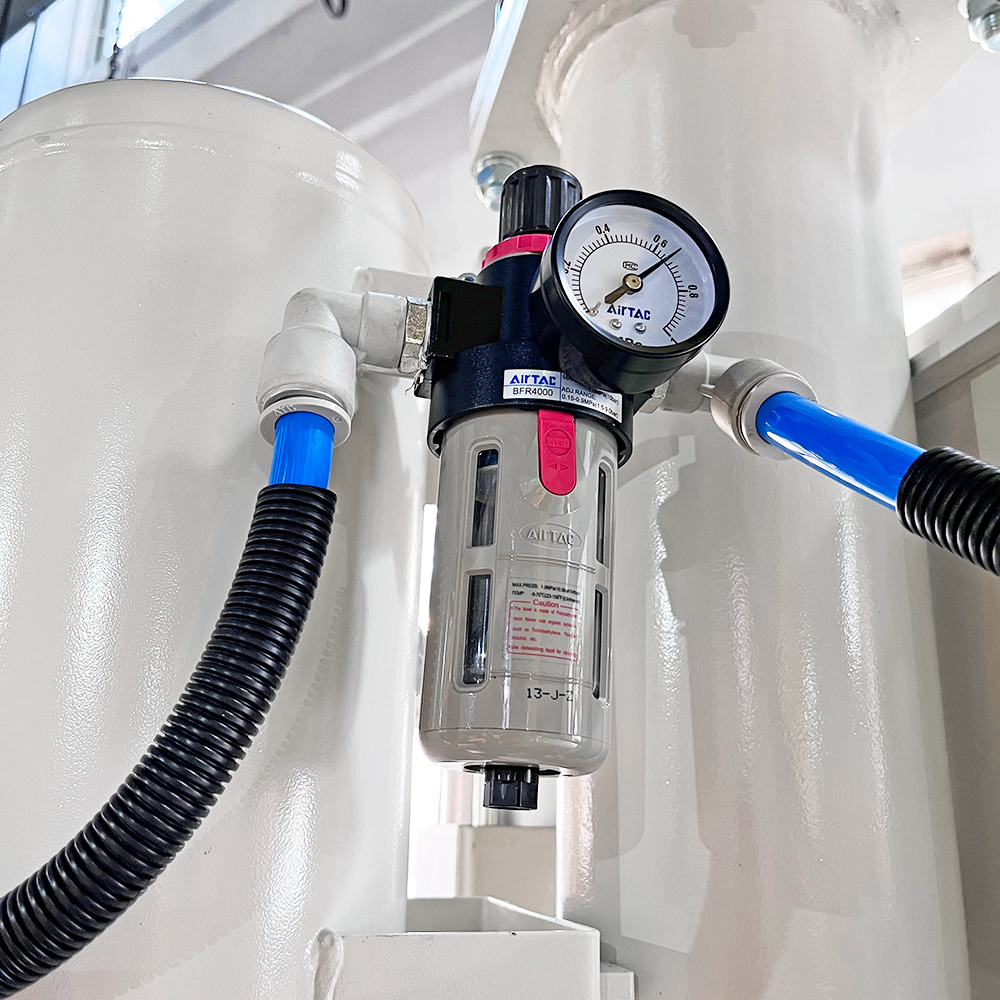

| Working Air Pressure | 0.6–0.8 MPa |
| Installation Type | Column-mounted / Overhead rail |
| Operating Temperature | -10 ℃ to +45 ℃ |
| Safety Protection | Overload protection, emergency stop |

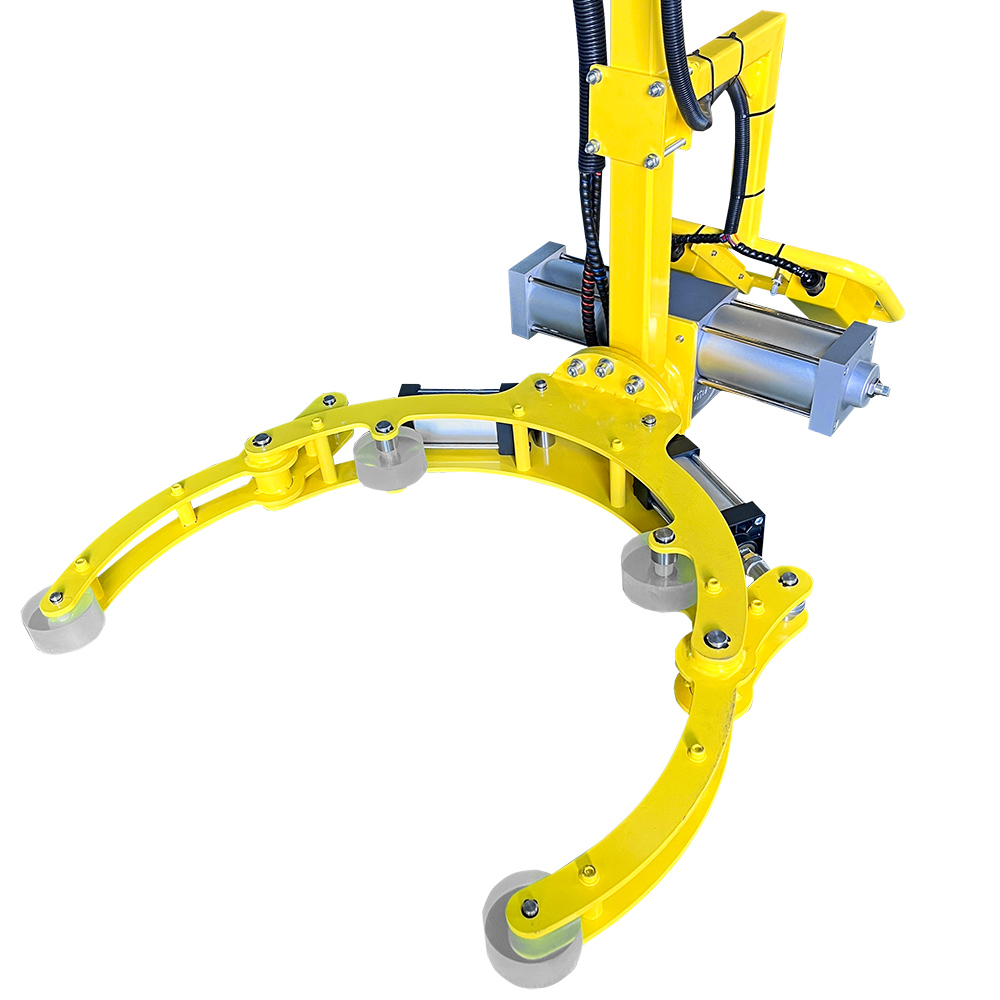

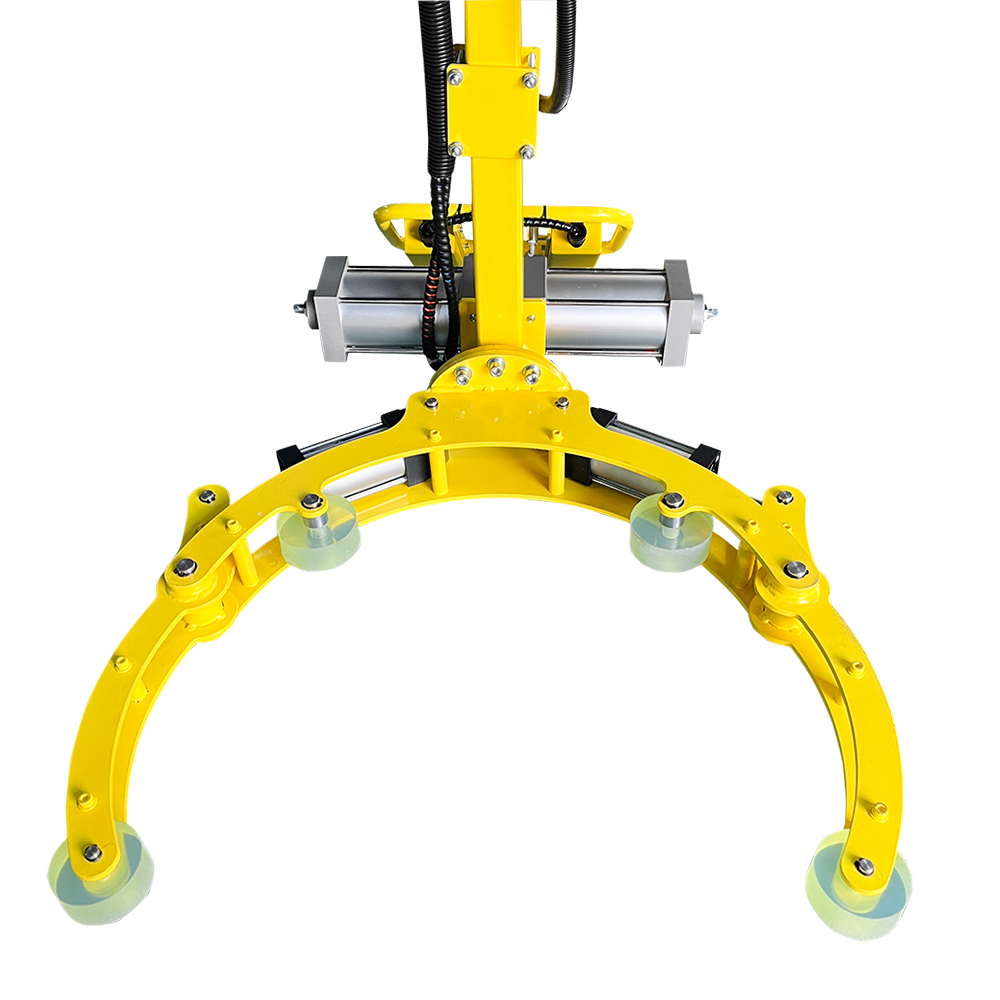

1. Precise External Clamping Design
Ensures stable and uniform gripping of circular rings without surface damage or deformation.
2. 50kg Load Capacity
Suitable for handling medium-weight circular metal components in assembly operations.
3. Ergonomic and Effortless Operation
Balanced lifting system provides smooth, low-force handling, reducing operator fatigue.
4. High Assembly Accuracy
Enables precise positioning and alignment, improving assembly consistency and quality.
5. Customizable Configuration
Gripper size, lifting stroke, and installation type can be tailored to specific application needs.
6. Reliable Industrial Structure
Robust construction ensures long-term performance in demanding production environments.
1. Circular iron ring assembly lines
2. Mechanical and industrial equipment manufacturing
3. Automotive and heavy machinery component assembly
4. Metal fabrication and machining workshops
5. Repetitive lifting and positioning tasks for ring-shaped components
