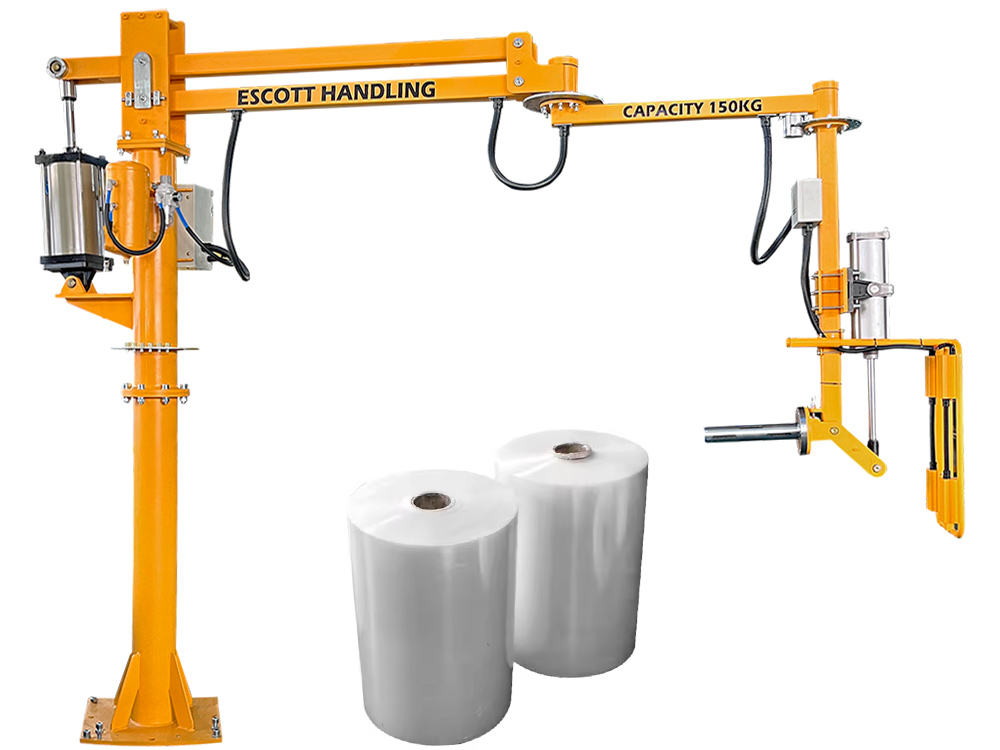

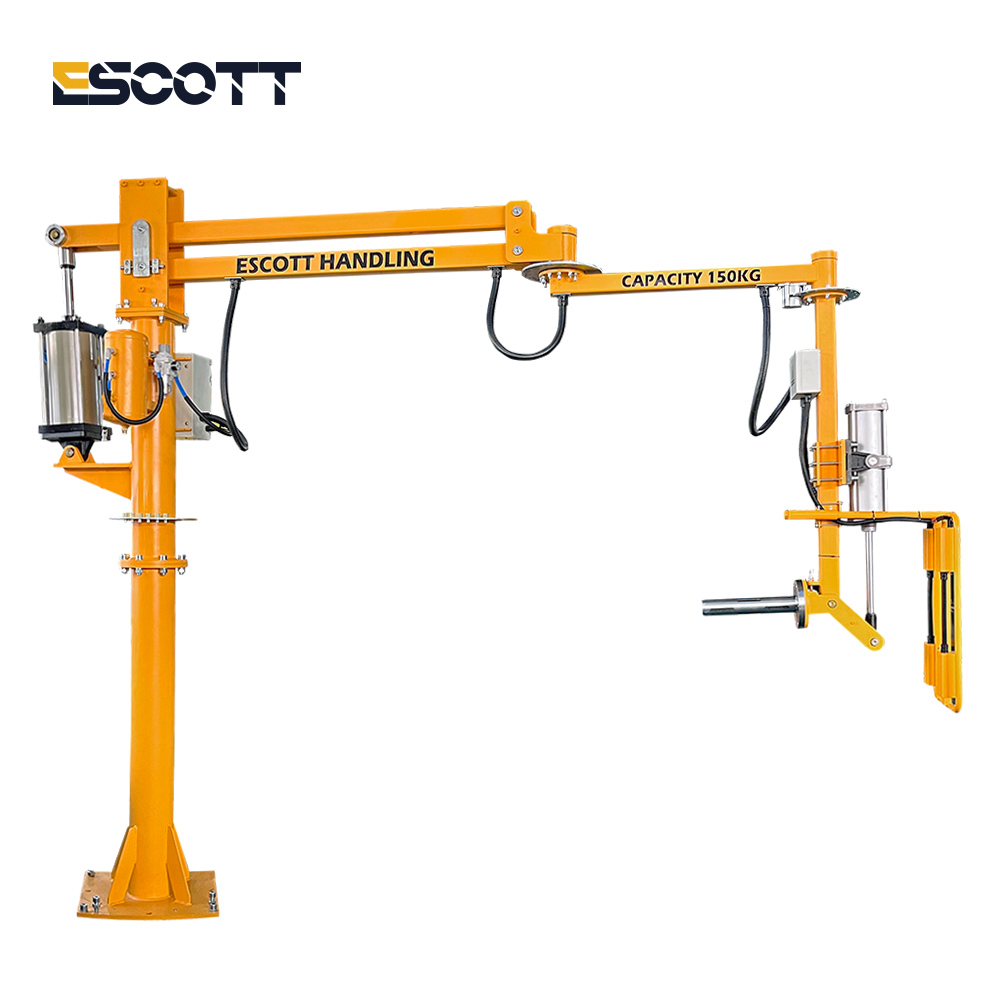

Product Description
The Ergonomic 150kg Roll Film Lifting Robot Arm (Customized) is a professional material handling solution developed for lifting, rotating, and positioning heavy roll films. With a maximum load capacity of 150kg, the system is designed to reduce manual labor, improve handling efficiency, and enhance workplace safety.
The robot arm features an ergonomic control handle and a customized roll film gripping system, enabling smooth lifting, precise positioning, and optional 90-degree rotation for vertical or horizontal handling. It is widely used in packaging, printing, film converting, and warehousing industries.
|
Technical Parameters
| Parameter Item | Specification |
| Rated Load Capacity | 150 kg |
| Maximum Load Capacity | 160 kg |
| Applicable Roll Film Weight | 20–150 kg |
| Roll Film Outer Diameter | 300–1200 mm |
| Roll Film Inner Diameter | 76 / 152 mm (customizable) |
| Lifting Stroke | 1500–3000 mm (customizable) |
| Rotation Angle | 0–90° (optional 180°) |
| Rotation Type | Manual / Pneumatic-assisted |
| Control Mode | Ergonomic handle with push buttons |
| Lifting Speed | 0–200 mm/s (adjustable) |
| Power Supply | AC 220V / 380V, 50–60 Hz |
| Drive System | Pneumatic balancing system |
| Working Air Pressure | 0.6–0.8 MPa |
| Installation Type | Floor-mounted / Column-mounted / Overhead rail |
| Operating Temperature | -10 ℃ to +45 ℃ |
| Safety Features | Mechanical lock, overload protection, emergency stop |
|
Key Features
1. High Load Handling up to 150kg
Designed for stable lifting and transfer of heavy roll films without manual strain.
2. Ergonomic and User-Friendly Control
Intuitive handle operation allows precise movement with minimal training required.
3. Customized Roll Film Gripper
Internal shaft or external clamping grippers can be tailored to different roll sizes and materials.
4. Smooth and Balanced Lifting
Pneumatic balancing ensures zero-gravity-like operation for accurate positioning.
5. Flexible Installation Options
Suitable for floor, column, or overhead rail mounting to fit different workshop layouts.
6. Reliable Safety Design
Multiple safety protections ensure secure operation in continuous industrial use.
-

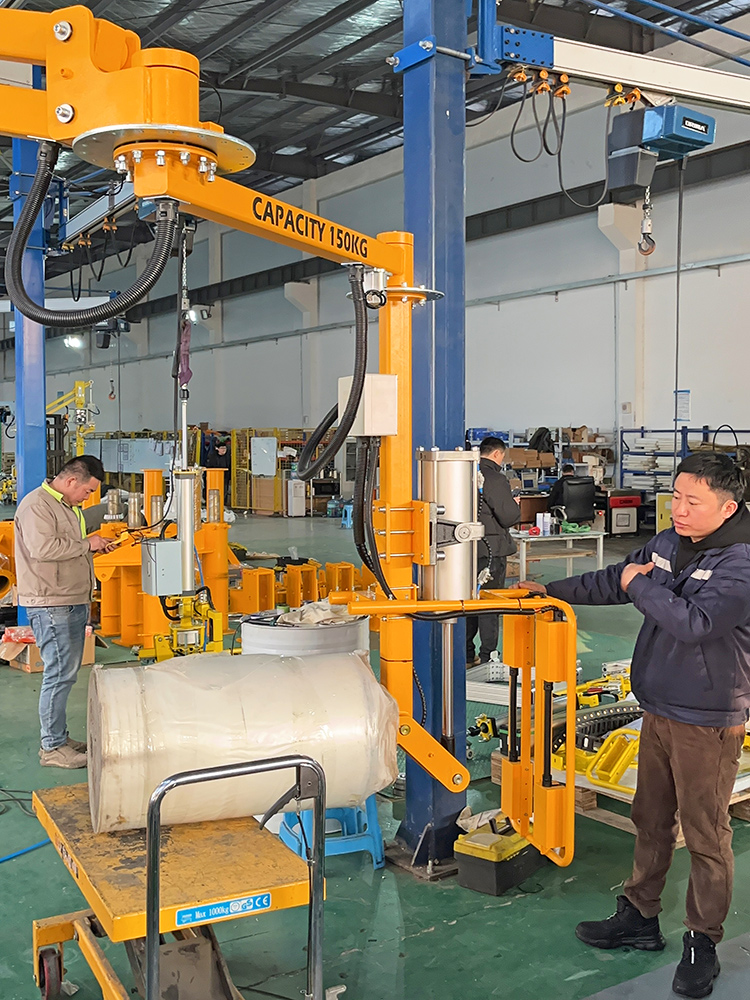

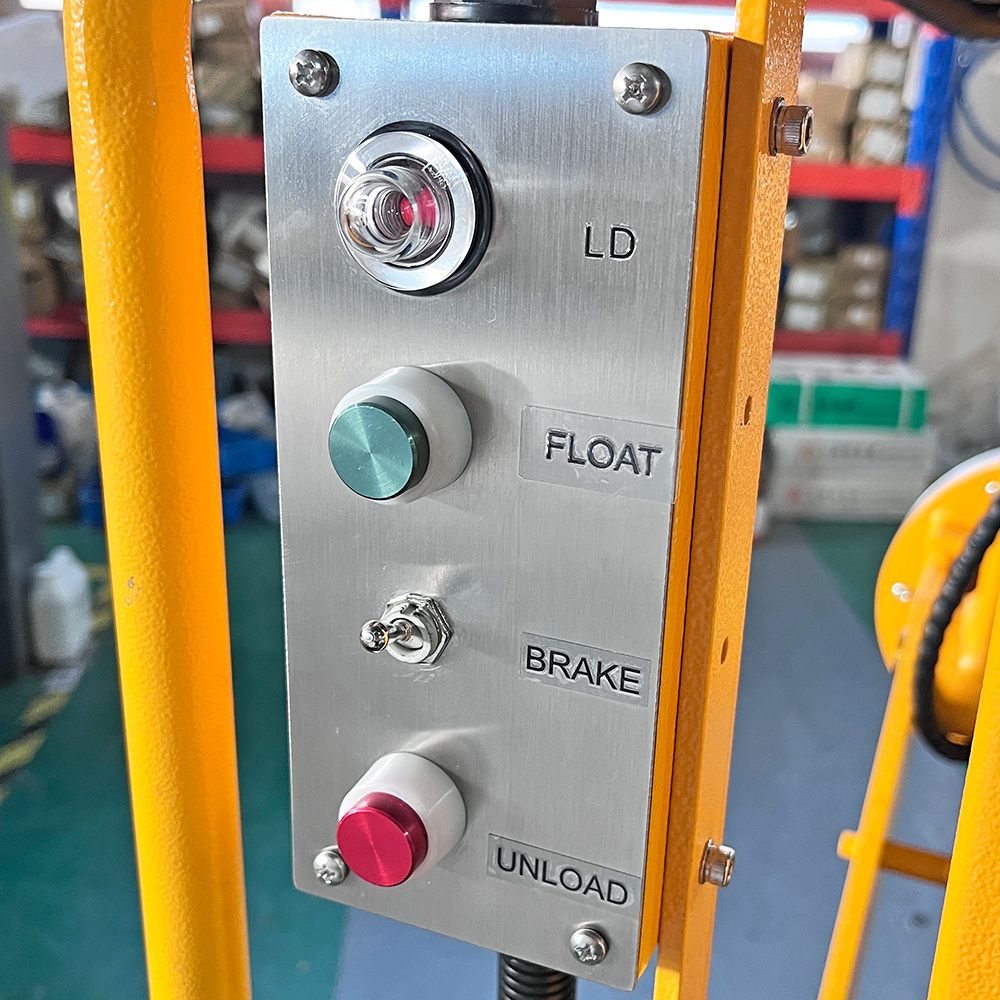

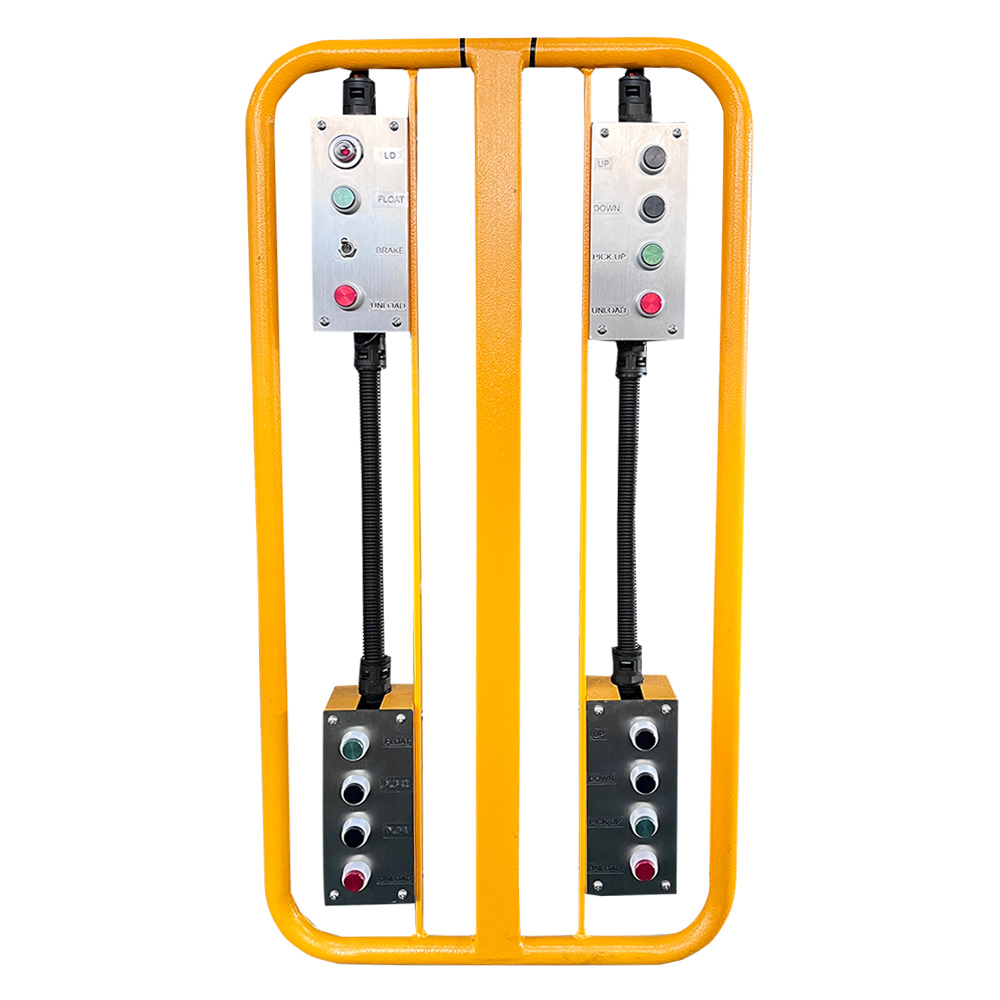

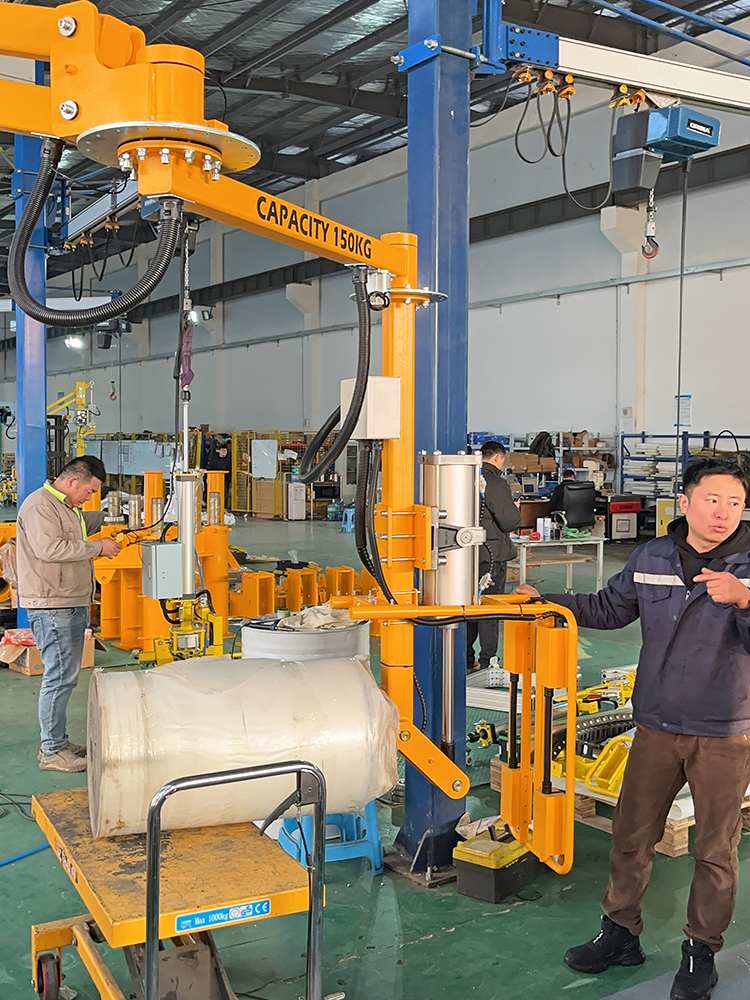

handle

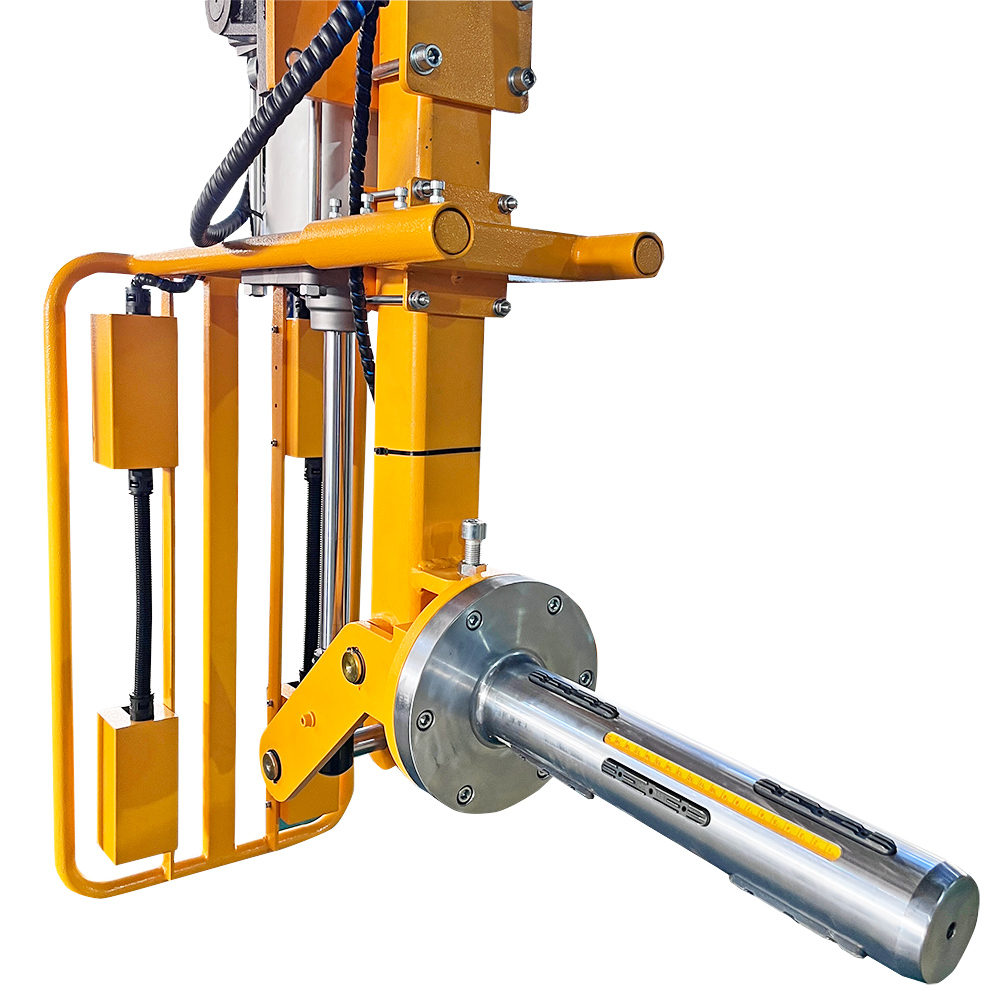

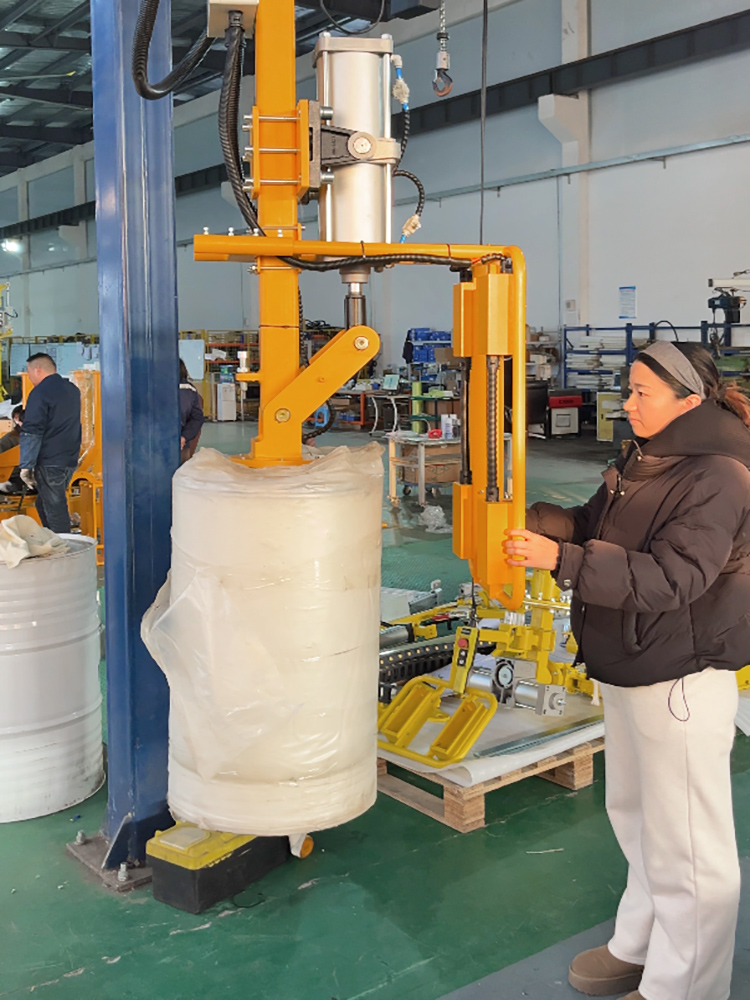

clamp

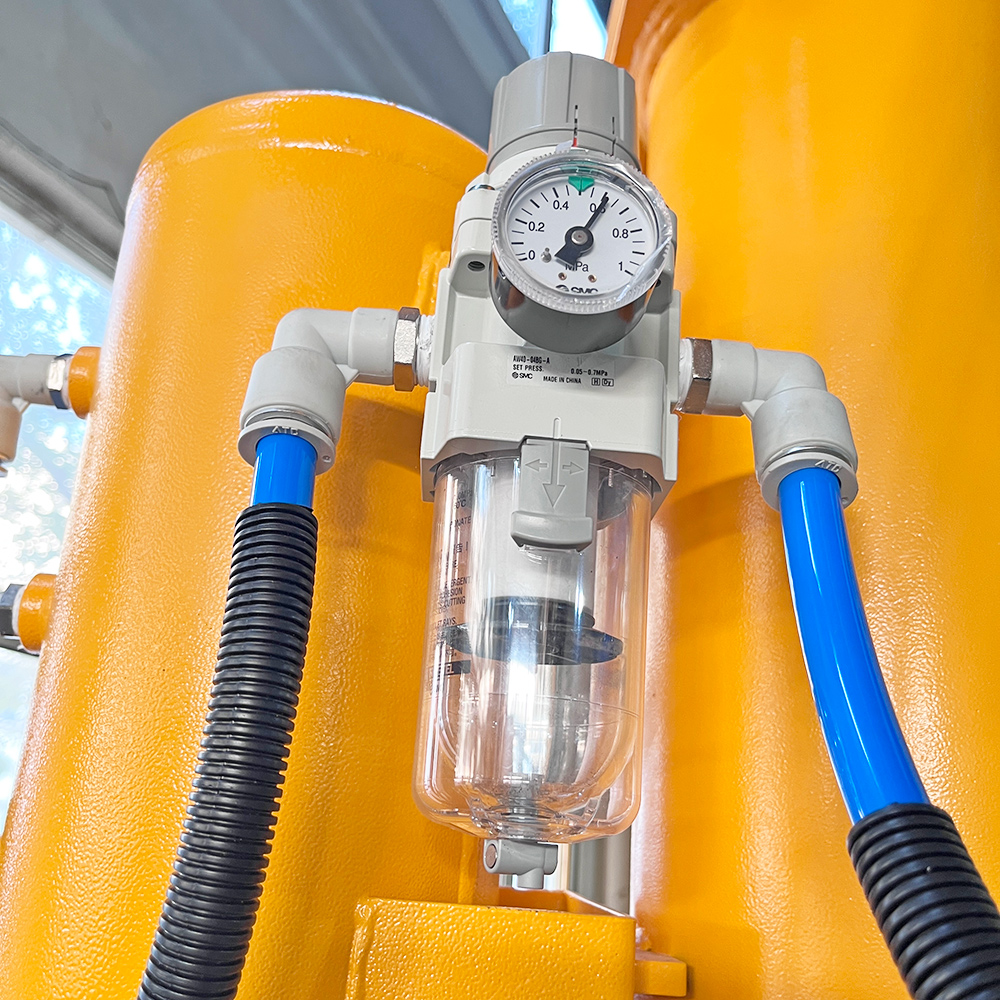

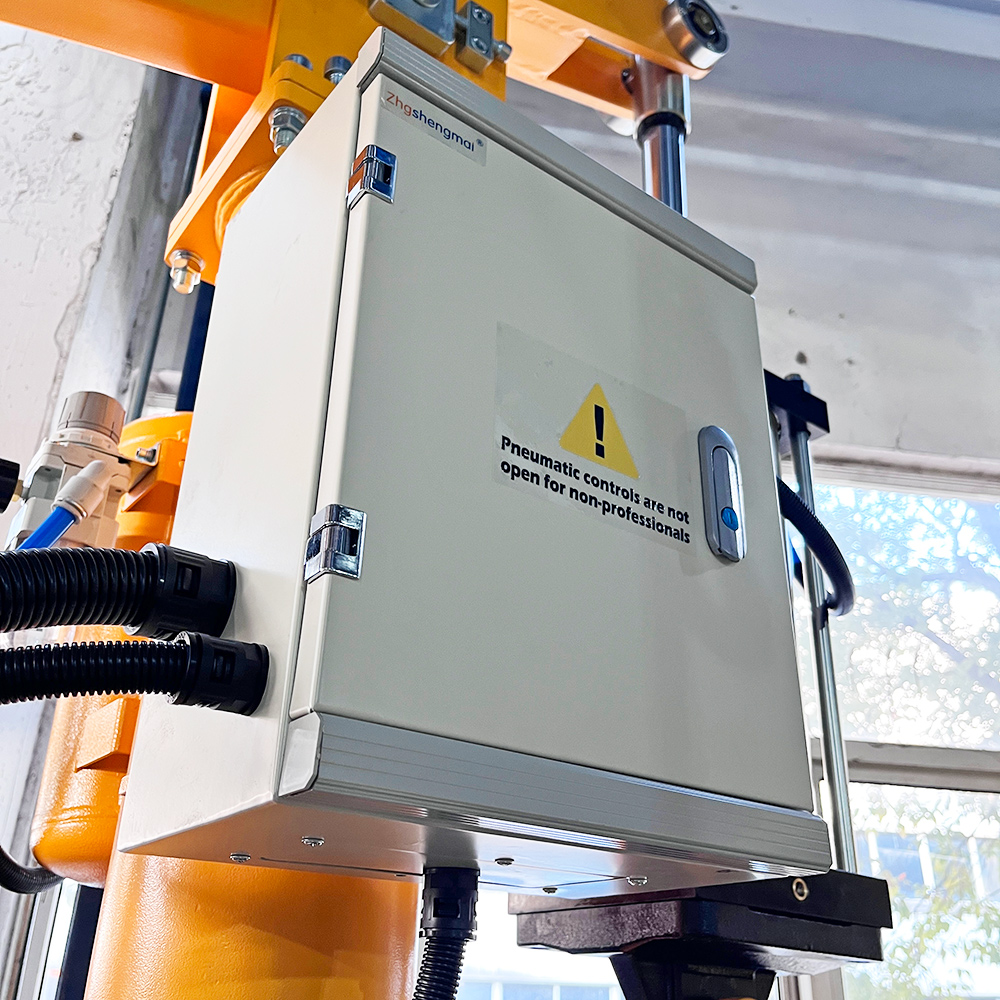

air pressure valve
|
Applications
1. Roll film packing and carton loading lines
2. Plastic film, paper roll, and flexible packaging industries
3. Printing, laminating, and slitting workshops
4. Pallet-to-machine roll transfer operations
5. Warehouse handling and storage of roll materials
