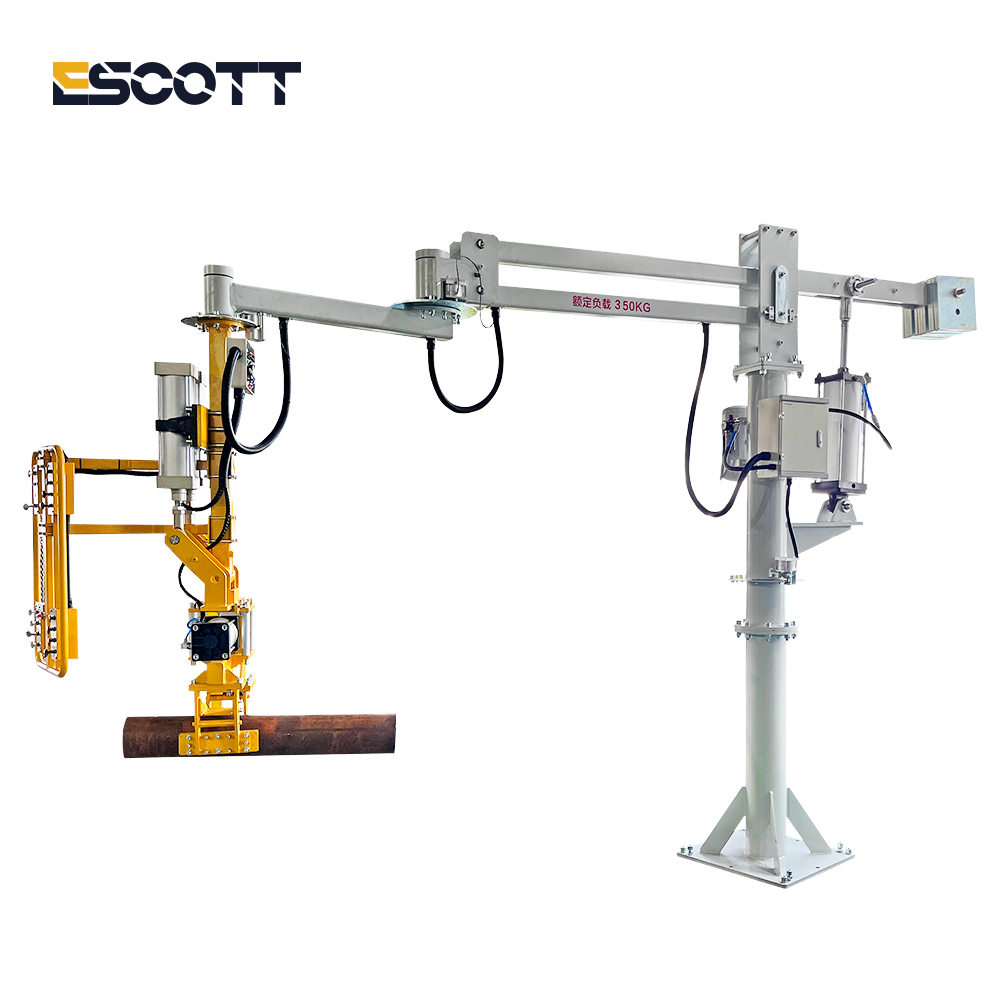

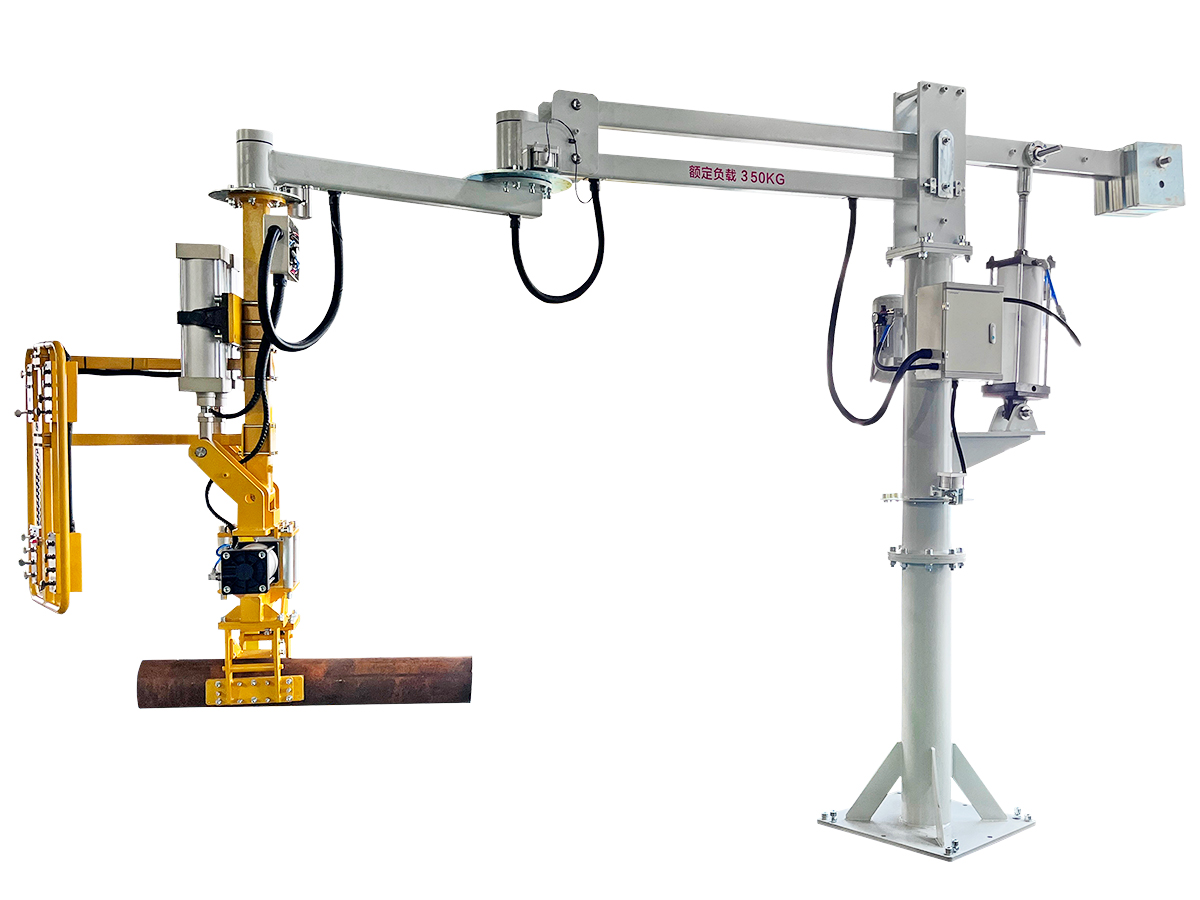

Industrial Robotic Arm Pneumatic Manipulator With Fixture for Roll Handling

Product Name : Pneumatic Assisted Robotic Arm Manipulator
Lifting Capacity : 50–500 kg (customizable up to 800 kg)
Maximum Arm Reach : 2000–4000 mm
Vertical Lifting Stroke : 1200–2500 mm
Air Supply Requirement : 0.6–0.8 MPa
Fixture Type : Customized clamp / mandrel / suction cup
Rotation : 0–360° horizontal & vertical rotation
Mounting Options : Floor-mounted / Overhead / Rail-mounted
Control Method : Pneumatic handle with safety interlock
Safety System : Overload protection, anti-drop device

Availability:

Quantity:



Inquire Add to Basket

Model:
EST-350
Brand:
ESCOTT

Product Description

Product Description

Overview

The Industrial Pneumatic Assisted Robotic Arm Manipulator with Fixture for Roll Handling is a high-performance lifting solution designed for safe, efficient, and ergonomic handling of heavy rolls such as paper rolls, film reels, fabric rolls, and metal coils. Powered by compressed air, the manipulator provides zero-gravity balance, reducing operator effort and preventing workplace injuries. With customized fixtures including clamps, mandrels, or suction devices, it adapts to different roll diameters and materials, making it an ideal solution for industries requiring frequent loading, unloading, and positioning of rolls.

Product Description

Product Name : Pneumatic Assisted Robotic Arm Manipulator

Lifting Capacity : 50–500 kg (customizable up to 800 kg)

Maximum Arm Reach : 2000–4000 mm

Vertical Lifting Stroke : 1200–2500 mm

Air Supply Requirement : 0.6–0.8 MPa

Fixture Type : Customized clamp / mandrel / suction cup

Rotation : 0–360° horizontal & vertical rotation

Mounting Options : Floor-mounted / Overhead / Rail-mounted

Control Method : Pneumatic handle with safety interlock

Safety System : Overload protection, anti-drop device

Features

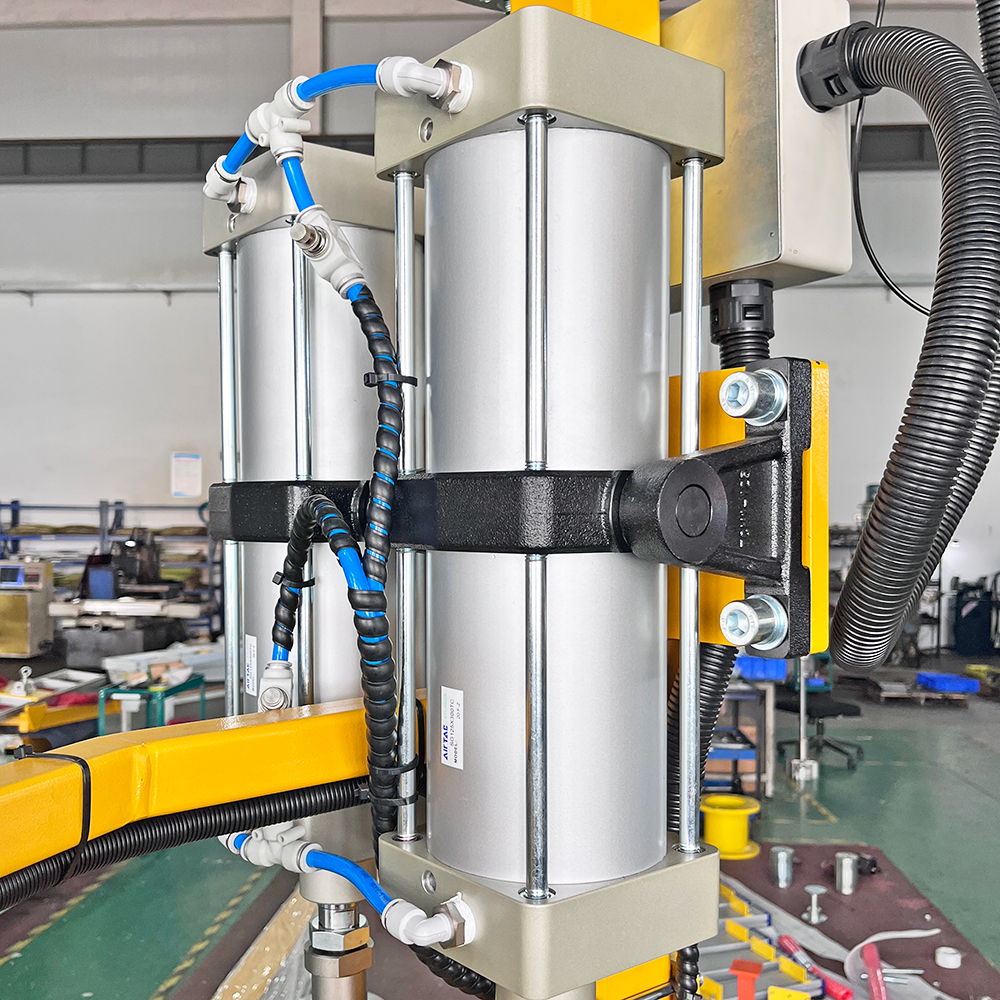

Air Tank

1. Zero-Gravity Balance – Effortless lifting with pneumatic balancing technology.

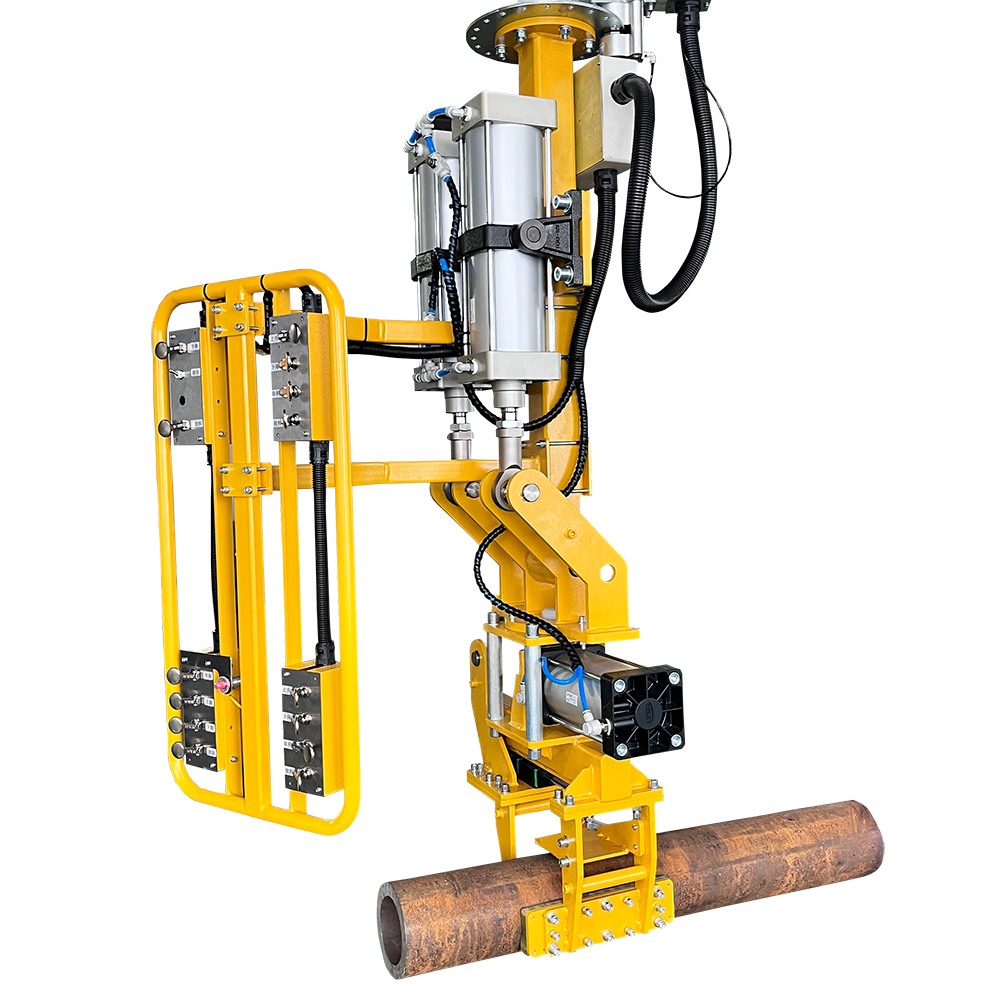

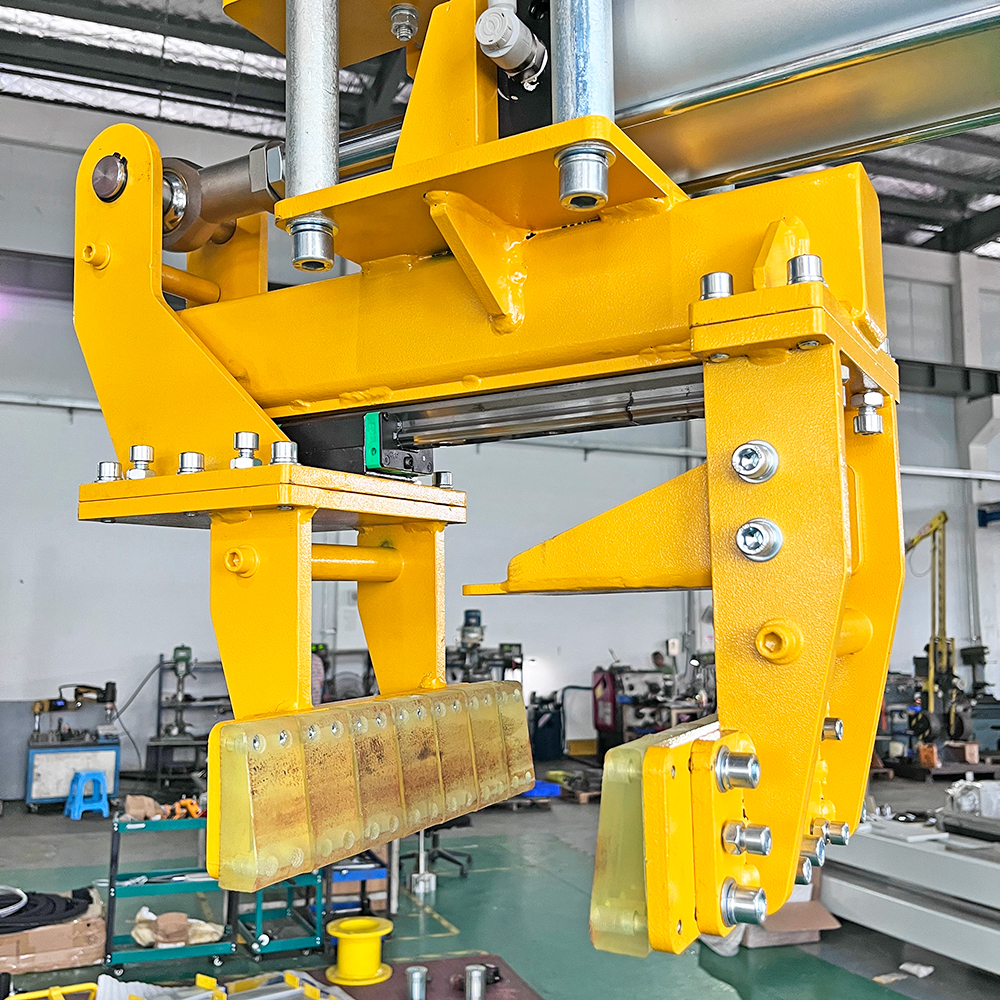

2. Custom Roll Fixture – Tailored clamps, mandrels, or suction tools for different roll sizes.
3. High Load Capacity – Handles up to 500 kg, suitable for heavy industrial rolls.

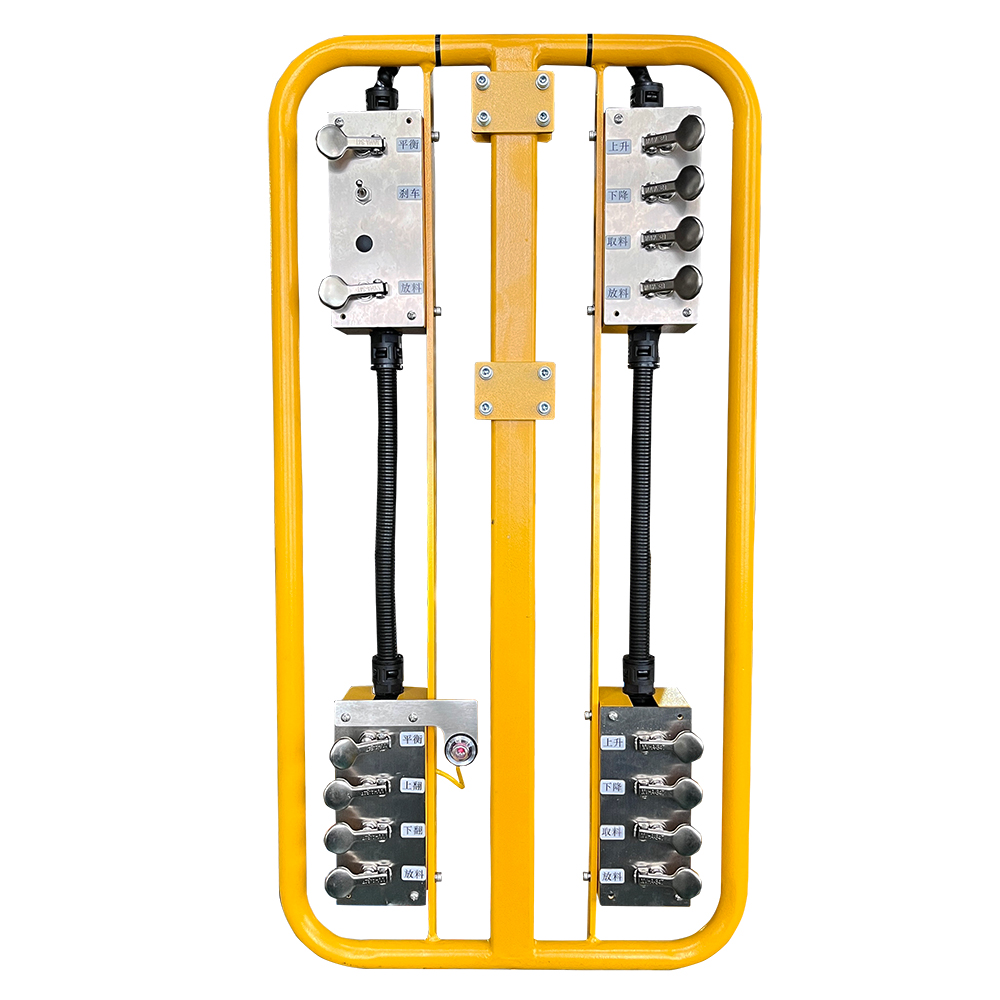

Handle

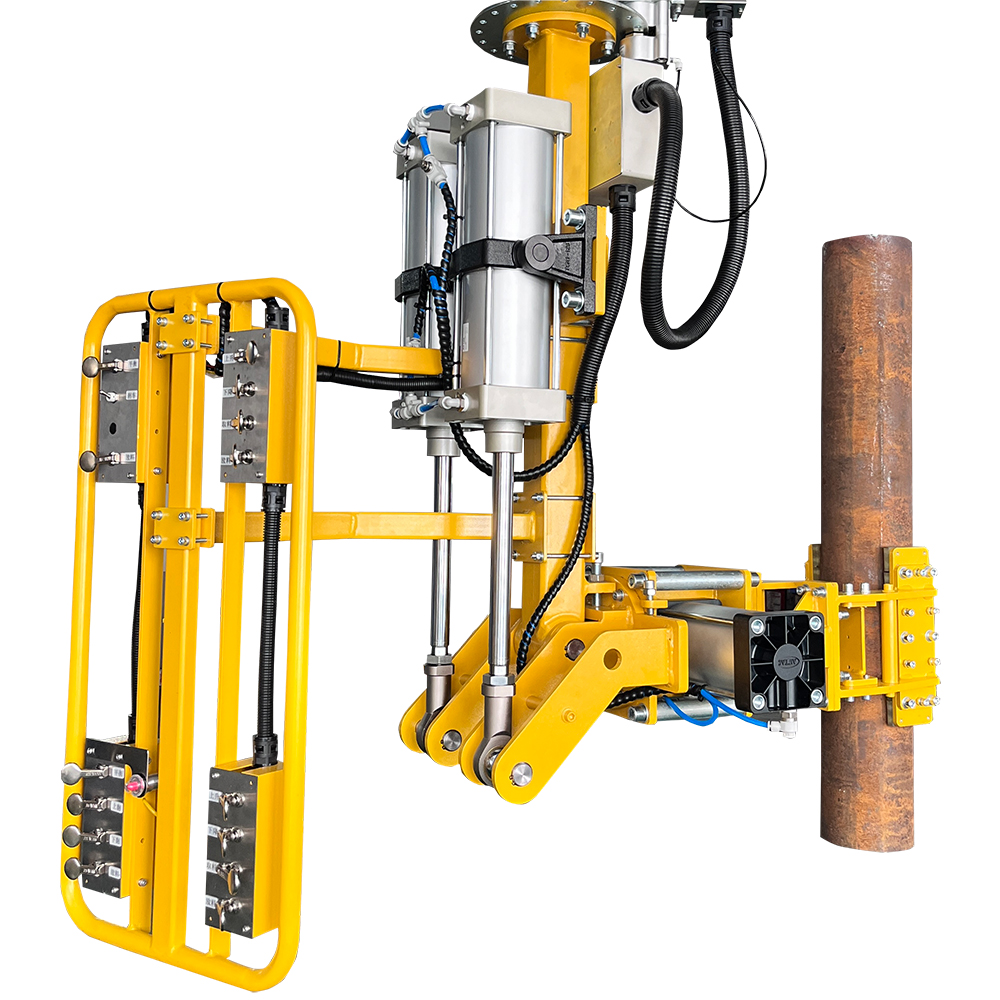

4. Full Rotation Design – 360° horizontal and vertical rotation for precise positioning.
5. Ergonomic Handling – Reduces operator strain and prevents workplace injuries.
6. Durable & Stable Structure – Heavy-duty robotic arm ensures long service life.

LD

7. Flexible Mounting – Available in floor, ceiling, or rail-mounted versions.
8. Energy-Saving System – Pneumatic drive requires only compressed air.
9. Advanced Safety Features – Equipped with overload alarm and anti-drop locks.

Application

1. Paper & Printing Industry – Handling large paper rolls for printing and packaging.
2. Textile & Fabric Mills – Lifting and positioning heavy fabric rolls.
3. Film & Plastic Industry – Loading and unloading plastic film reels in production.
4. Steel & Metal Coil Industry – Safely moving and positioning metal coils.
5. Warehousing & Logistics – Efficient storage and transportation of rolls and reels.
