ESCOTT
Product Description

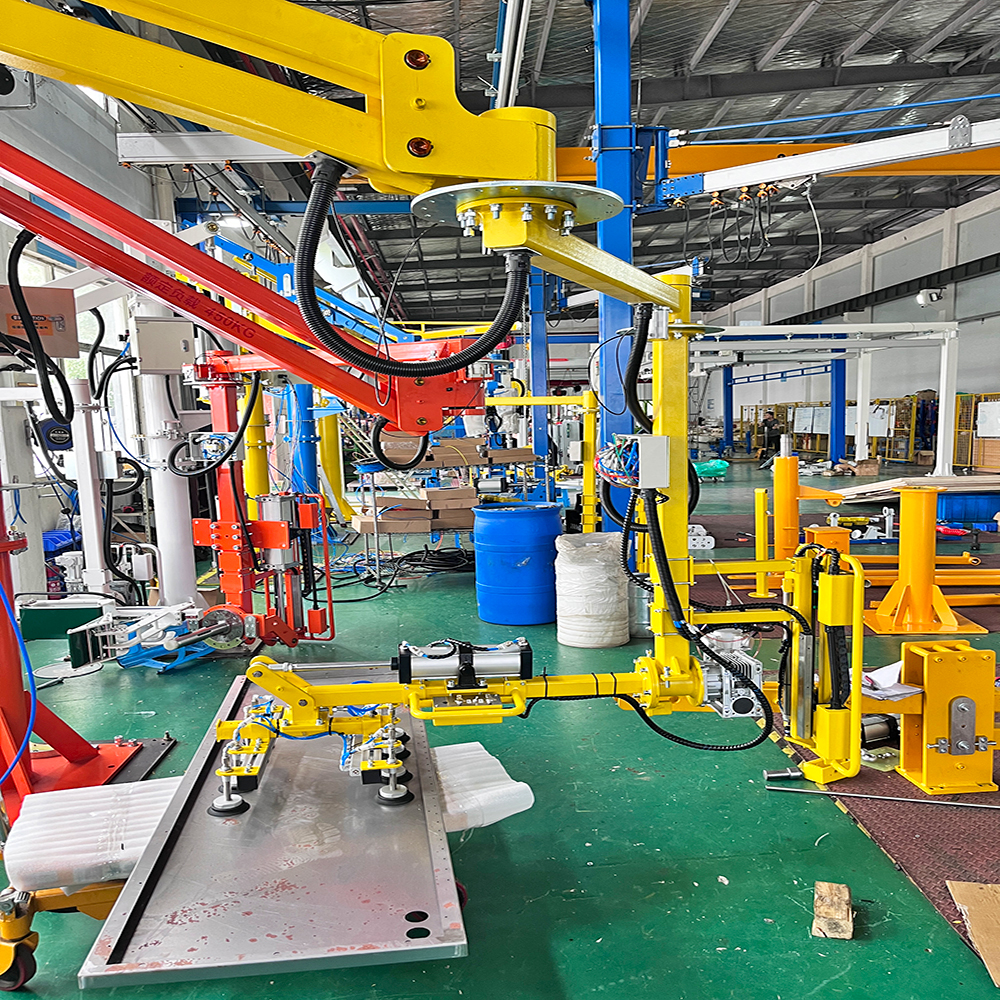

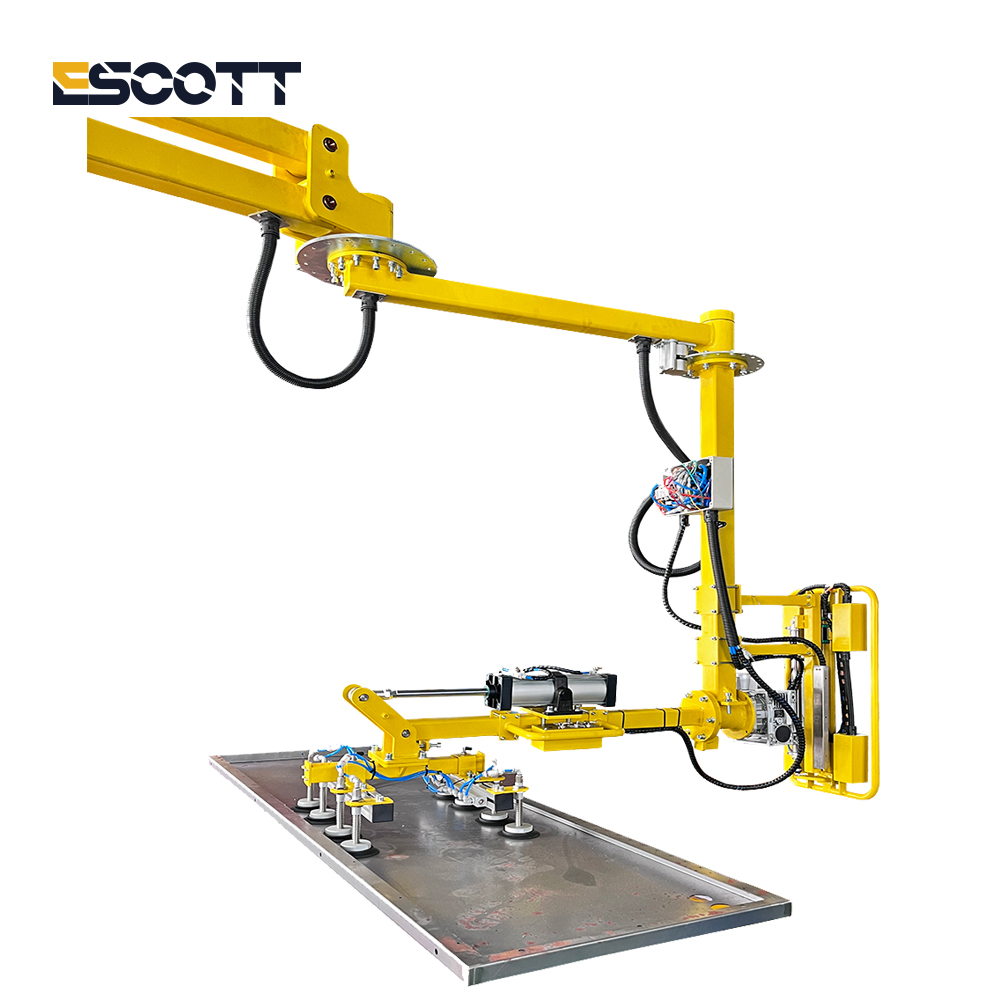

The Customized Pneumatic Manipulator with Suction Cup Fixture is a high-performance material handling equipment designed for fast, safe, and labor-saving loading and unloading of iron plates, steel sheets, aluminum panels, and other flat materials. It uses a compressed-air powered vacuum system to create strong suction force, allowing secure lifting and precise positioning of heavy workpieces without damaging the surface.
This manipulator is widely used in metal processing, sheet metal fabrication, shipbuilding, machinery manufacturing, and warehouse logistics. Its customizable lifting capacity, arm length, and suction cup arrangement make it adaptable to different production environments. Whether feeding sheets into a laser cutting machine, transferring metal plates to a press brake, or unloading processed parts, it provides stable performance, high efficiency, and ergonomic operation.
| Parameter | Details |
|---|---|
| Model | Customized Pneumatic Manipulator Suction Cup Fixture |
| Power Source | Compressed Air (0.6–0.8 MPa) |
| Lifting Capacity | 50 kg – 800 kg (customizable up to 1000+ kg) |
| Gripping Method | Vacuum suction cups |
| Suction Cup Material | High-quality rubber / silicone (optional heat-resistant type) |
| Number of Suction Cups | Customizable based on plate size |
| Working Radius | 1.5 – 3.5 meters (customizable) |
| Lifting Stroke | 0 – 2 meters |
| Structure Material | High-strength carbon steel / aluminum alloy |
| Rotation Function | Optional 0–360° rotation & 90° tilting |
| Safety Features | Anti-drop check valve, vacuum loss alarm, pressure monitoring |
| Mounting Options | Floor-mounted column, overhead rail, or mobile base |

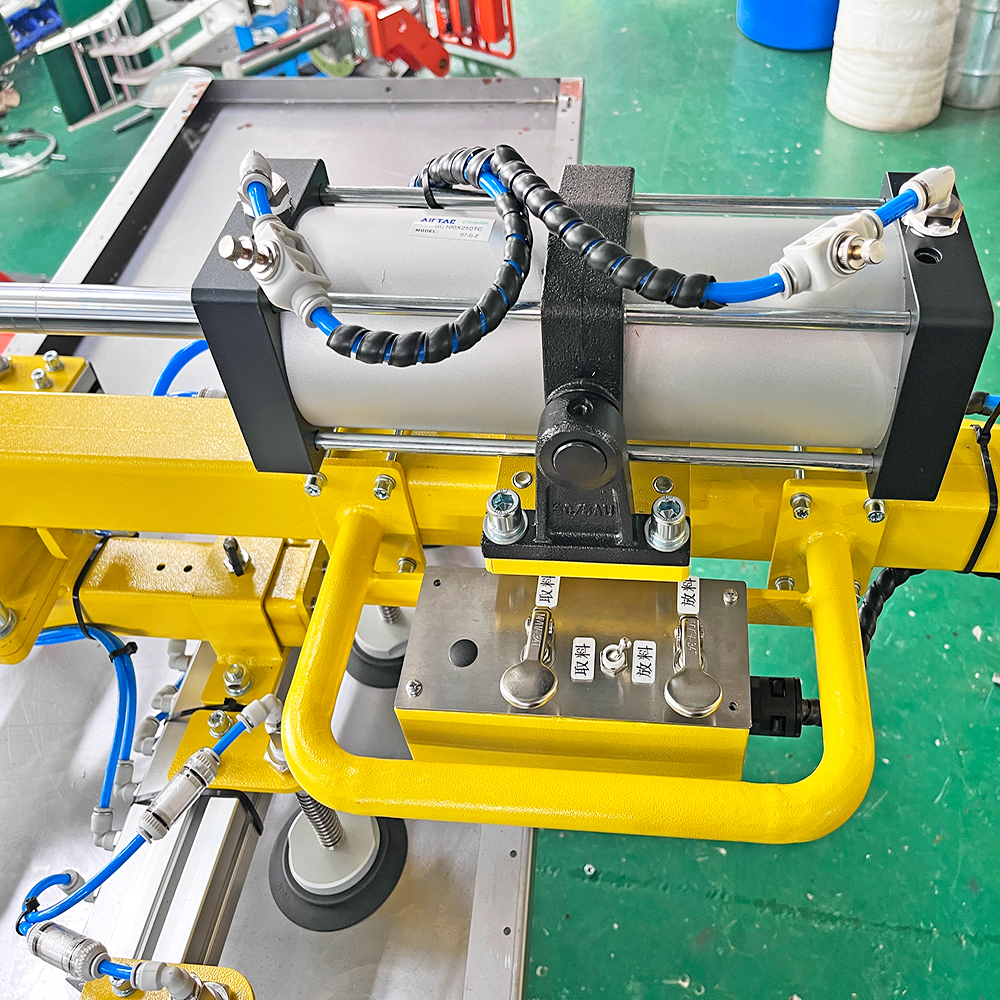

| Control Method | Pneumatic control handle, single or dual-hand operation |
Powerful Vacuum Grip – Strong suction holds heavy iron plates securely, preventing slipping or dropping.
Customizable Suction Layout – Suction cup positions, quantity, and size tailored to your material dimensions.
Optional Rotation & Tilting – Allows vertical-to-horizontal positioning for versatile handling.
Surface-Friendly Design – Rubber or silicone cups prevent scratches, dents, and deformation.
Ergonomic and Easy Operation – One operator can handle large plates effortlessly, reducing labor costs.
Safe and Reliable – Equipped with vacuum loss alarms, anti-drop valves, and emergency release controls.
Energy Efficient – Pneumatic drive eliminates the need for electric motors, reducing maintenance costs.
Durable Structure – High-strength steel/aluminum frame for long service life in industrial environments.

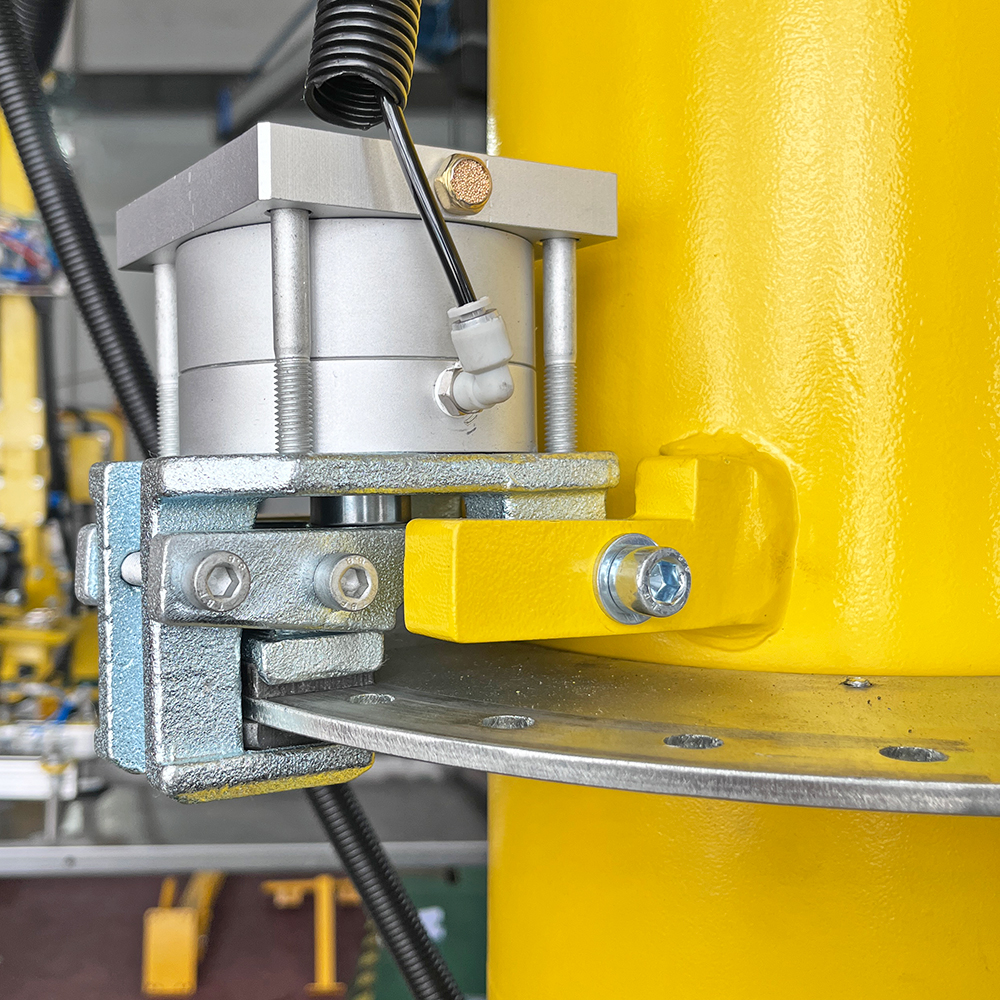

brake

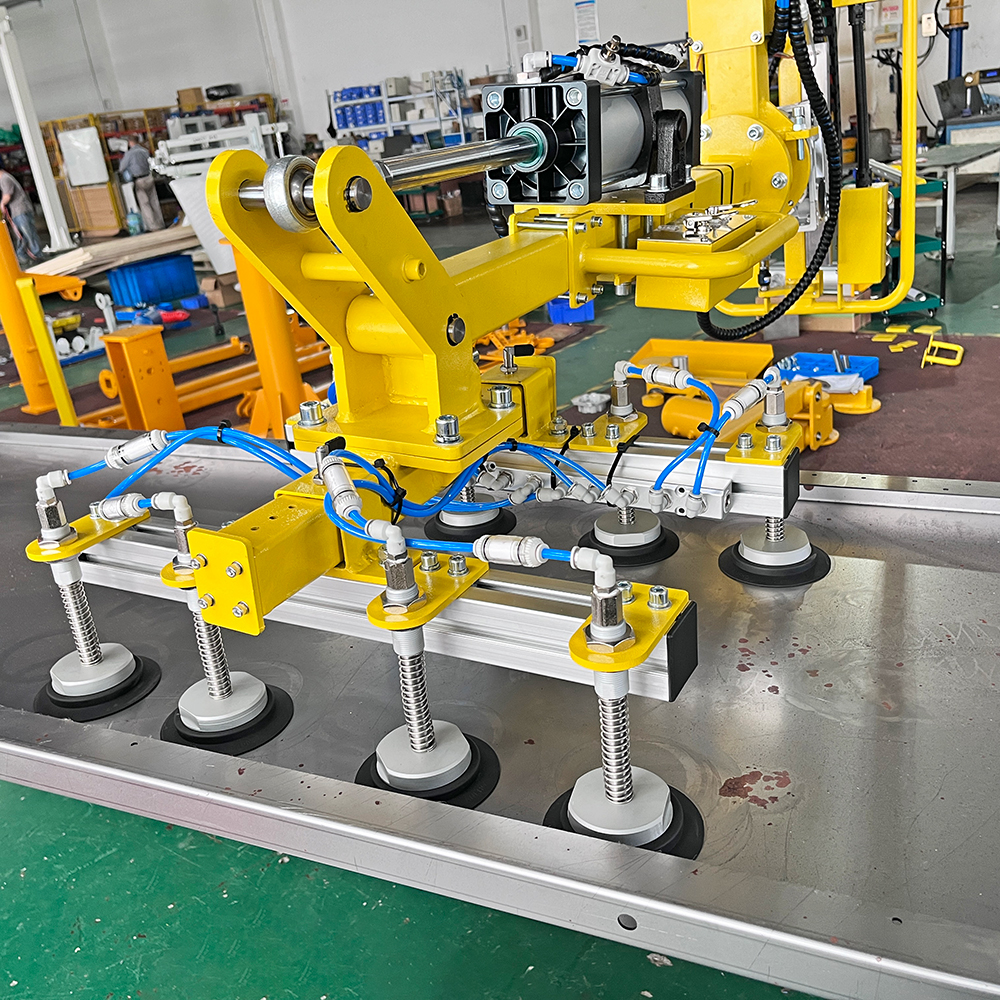

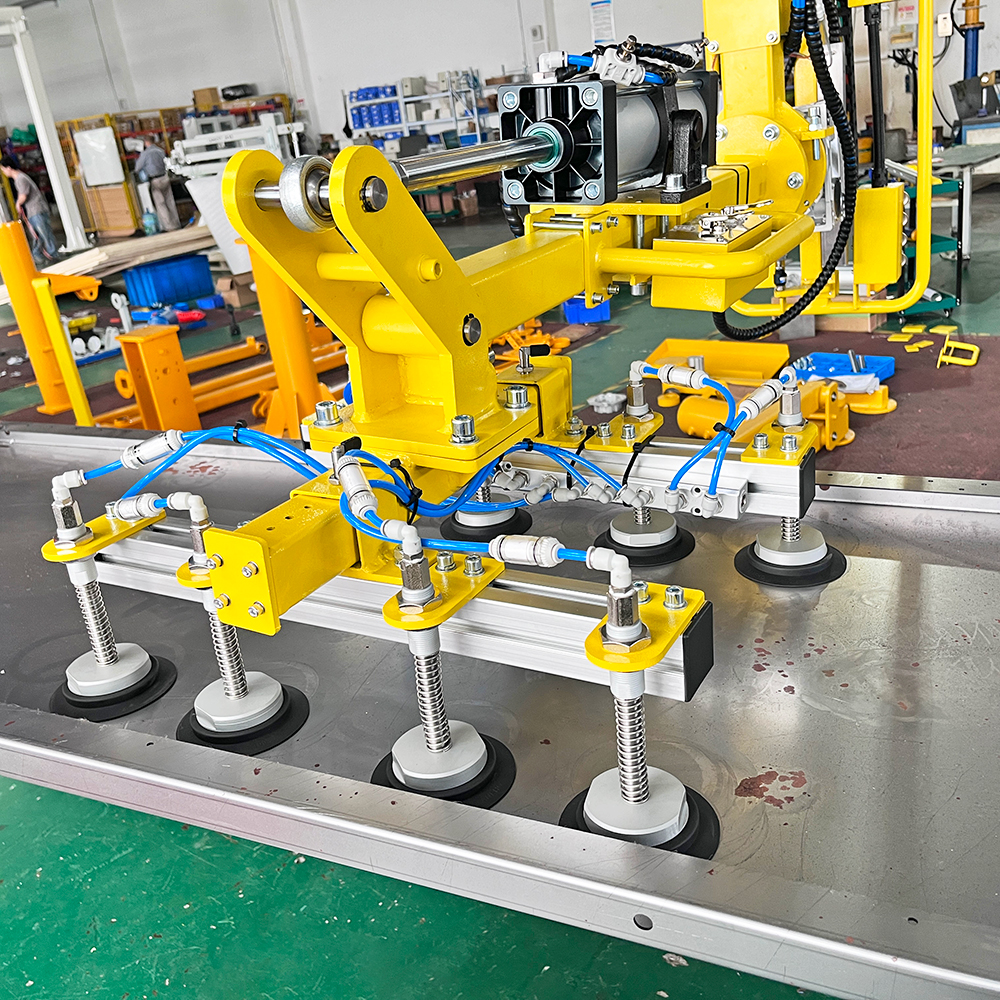

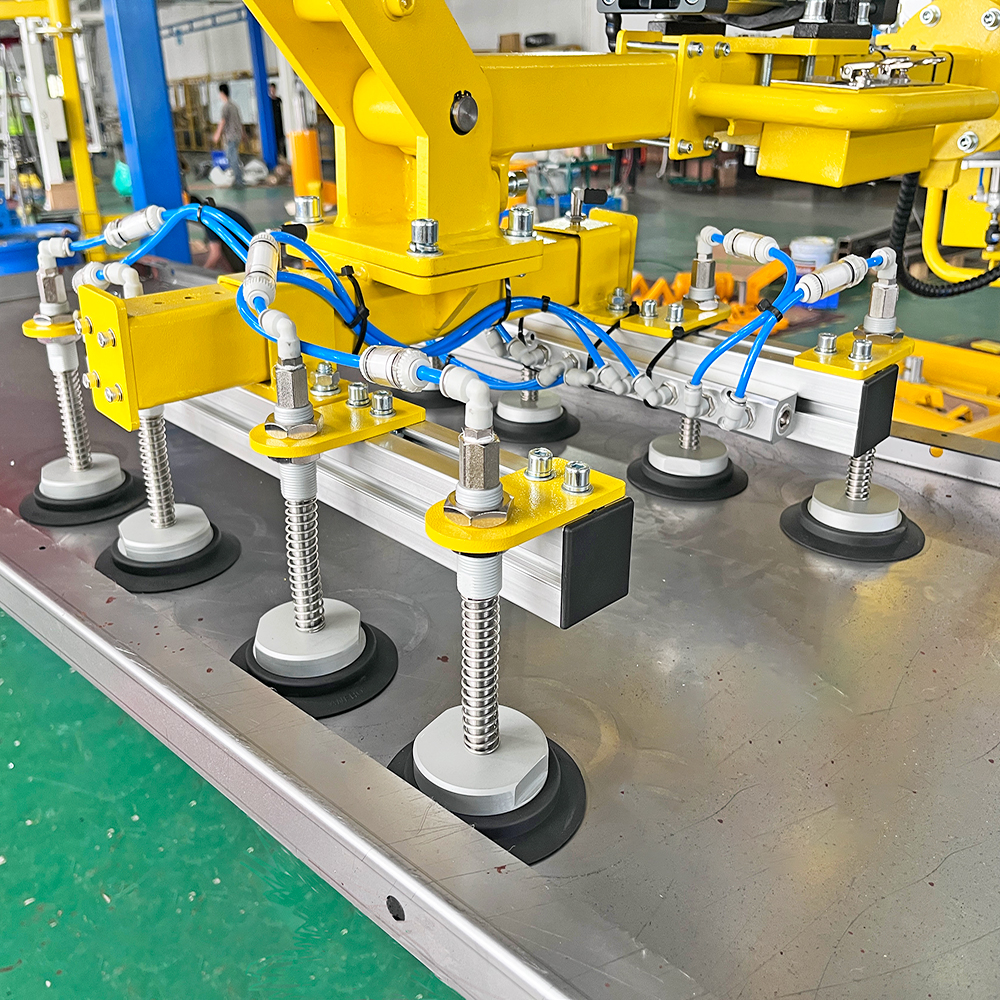

Suction cup

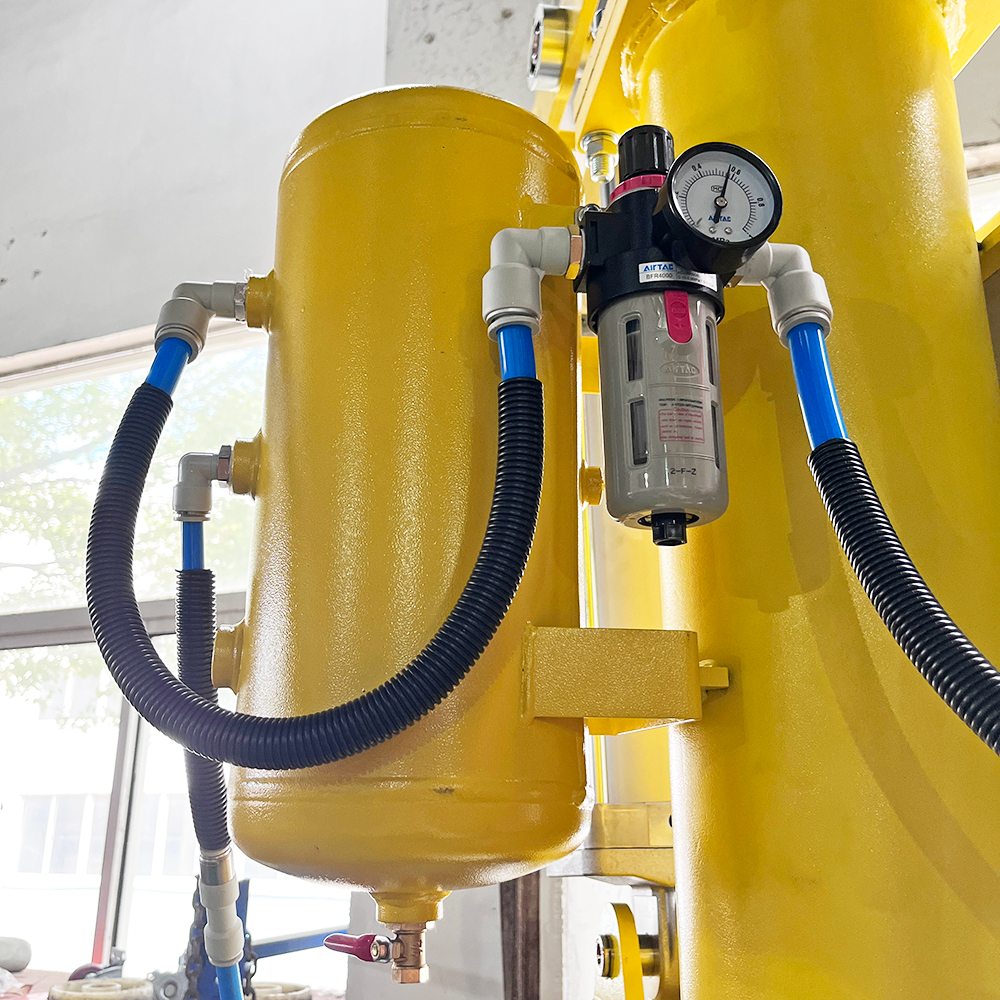

gas tank
Laser Cutting Machine Feeding – Quickly load metal sheets onto the working table without manual lifting.
Press Brake & Punch Machine Loading – Position plates accurately for bending or punching operations.
Shipbuilding & Heavy Equipment Manufacturing – Move large steel plates for welding and assembly.
Warehouse & Storage Handling – Efficiently transfer and stack iron plates in storage areas.
Automotive & Aerospace Fabrication – Handle aluminum or stainless steel sheets for precision manufacturing.

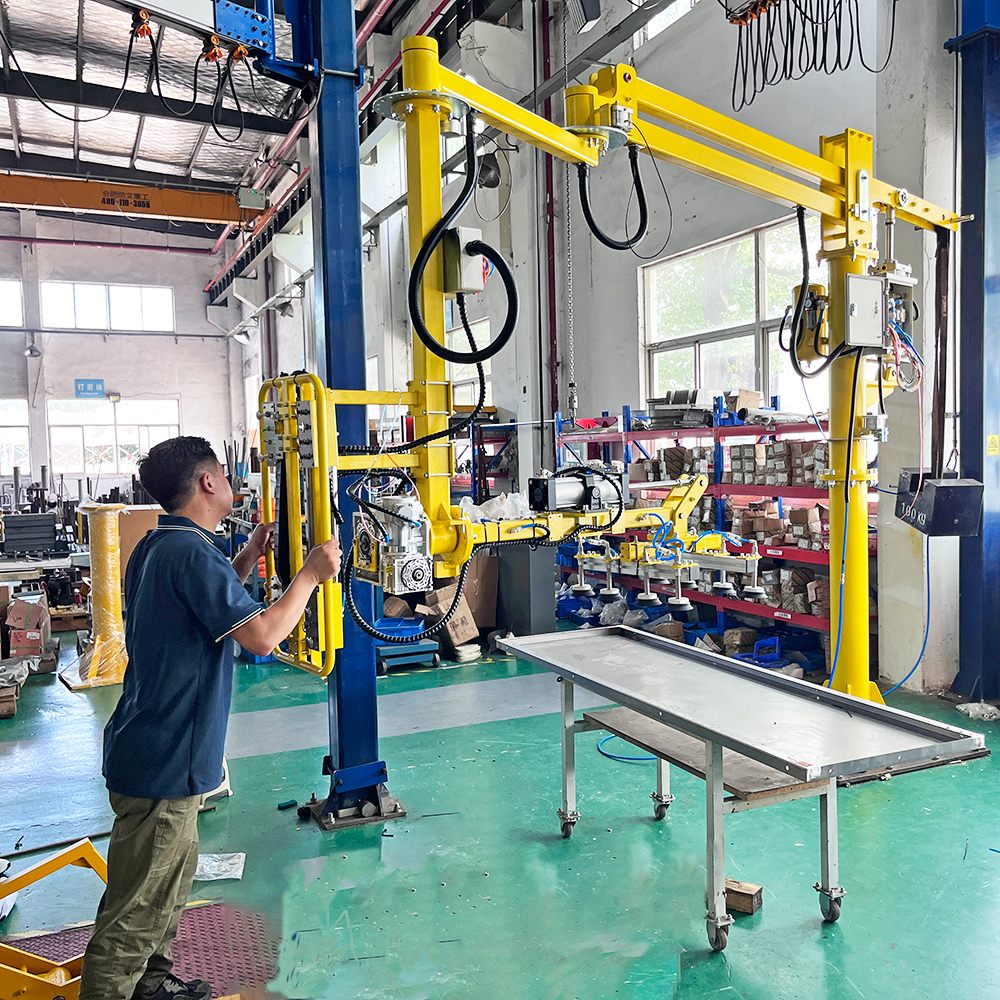

Loading and Unloading
Loading and Unloading
Q1: Can it handle plates with different thicknesses?
Yes, the vacuum cups adapt to various surface flatness and thickness levels.
Q2: How do I choose the right suction cup size?
We recommend size based on plate weight, dimensions, and surface conditions.
Q3: Can it handle oily or dusty plates?
Yes, we can equip special suction cups for oily, dusty, or rough surfaces.
Q4: Does it support 360° rotation?
Yes, optional designs allow full rotation and 90° vertical tilting.
Q5: Is it safe if the air supply is suddenly cut off?
Yes, the built-in check valve prevents immediate loss of suction, ensuring safe holding.
