Product Description
The intelligent electric lifting manipulator of the column-type cantilever crane is a modern material handling equipment that integrates rotary handling, intelligent control and multi-station operation. This product uses a high-strength column support system, a flexible rotating cantilever structure, and is equipped with an intelligent electric hoist and an end-effector fixture to achieve an industrial handling solution with small space occupation, convenient operation, precise positioning, safety and efficiency.
|
Parameter
Maximum lifting weight: 10kg – 1000kg (customizable)
Cantilever length: 2m – 6m (customizable according to needs)
Lifting height: 2m – 6m (supports special height customization)
Rotation angle: 0° – 270° / 0° – 360° (optional)
Power supply voltage: AC 380V / 50Hz (customizable 220V/60Hz)
Control mode: handle control / intelligent electric control system
Safety protection: overload protection, limit protection, emergency stop button
Installation method: ground expansion bolt fixing / pre-embedded anchor
|
Working principle
The operator starts the equipment through the control handle or control panel;
The intelligent hoist starts and drives the manipulator to rise or fall;
The cantilever rotating structure drives the entire cantilever to rotate and move the workpiece from point A to point B;
The manipulator clamp automatically adjusts the clamping force according to the shape of the workpiece;
The workpiece is accurately placed at the target position, and the system automatically decelerates and stops.
|
Structural composition

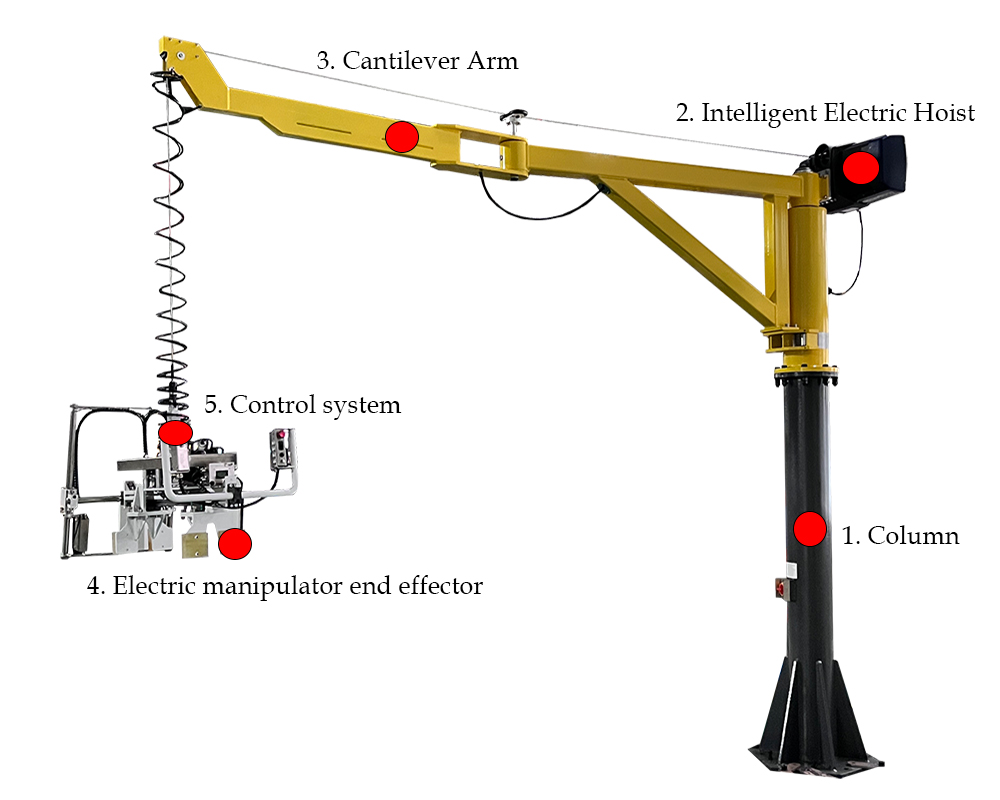

1. Column:
Made of high-strength seamless steel pipe or steel, it bears the weight of the whole machine and ensures a stable and reliable structure.

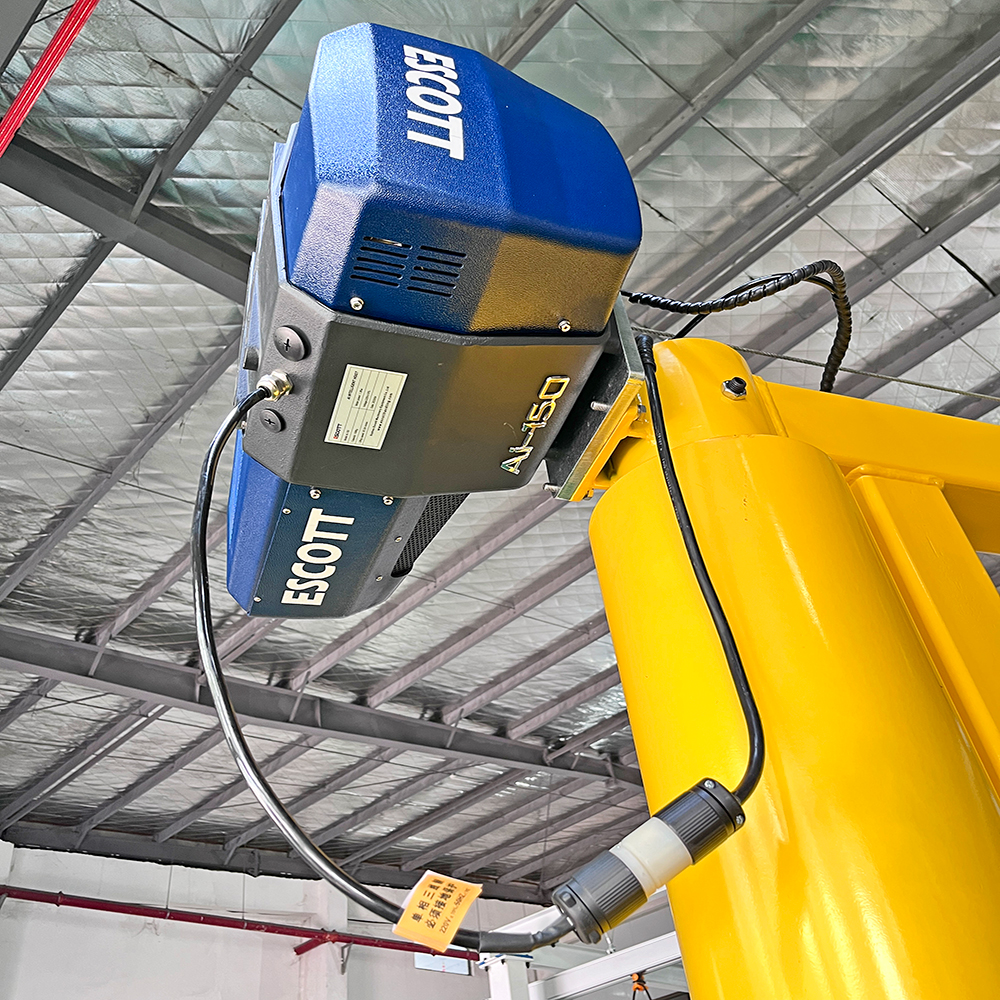

2. Intelligent Electric Hoist:
Built-in sensors and control chips, with overload detection, speed adjustment, slow start, slow stop and other functions.
3. Cantilever Arm:
The beam can be rotated, supporting 270° or 360° rotation, driving the electric hoist or manipulator to cover the required operating area.

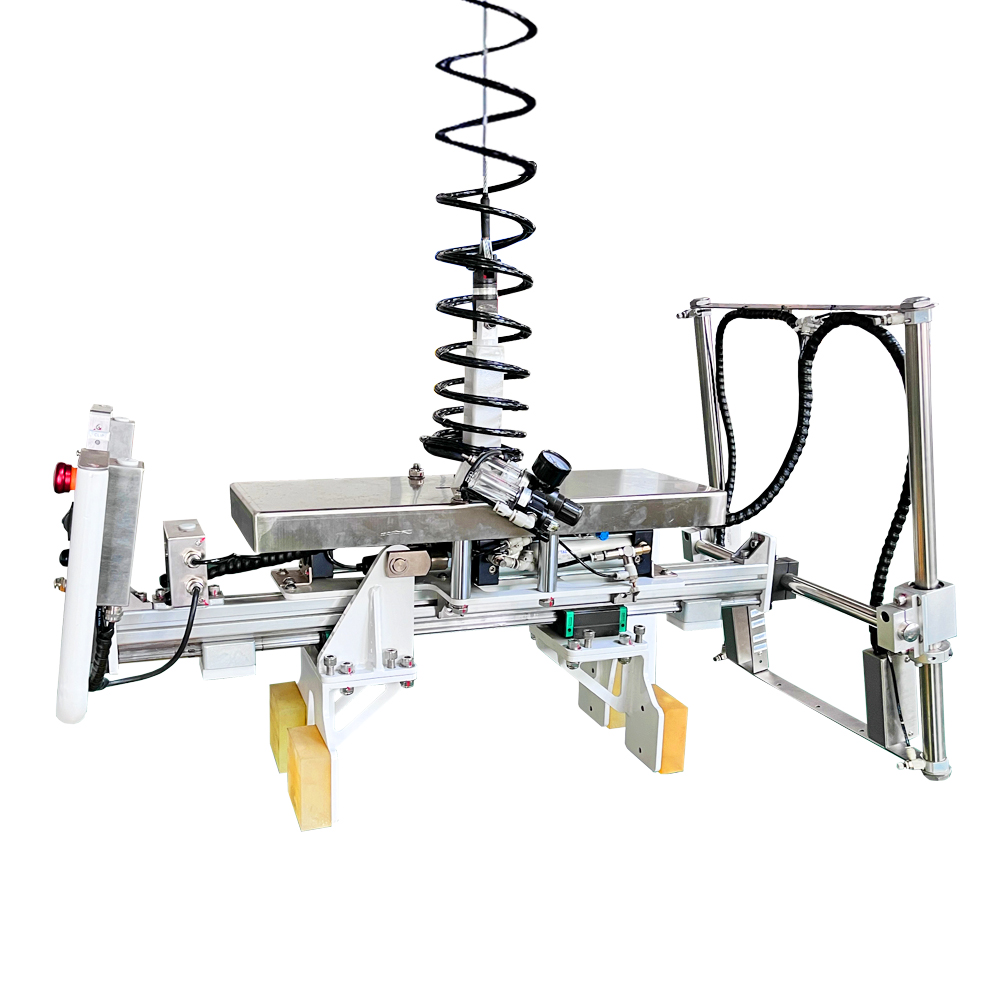

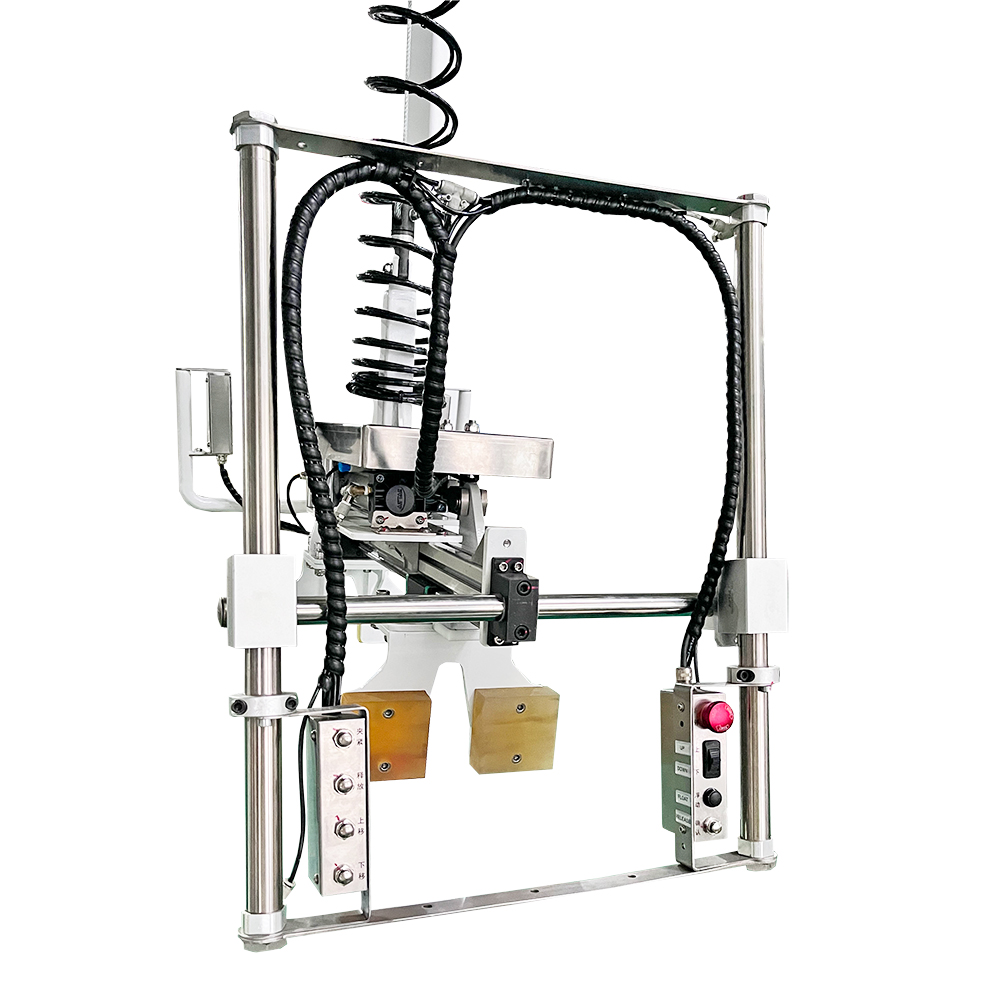

4. Electric manipulator end effector:
It can be equipped with a variety of fixtures (vacuum suction cups, grippers, magnetic suction heads, etc.) to adapt to workpieces of different shapes and materials.
5. Control system:
It supports button boxes, joysticks, wireless remote controls, and can even be connected to the MES system to achieve intelligent linkage.
|
Product Features
1. 360° rotating cantilever: can flexibly cover the working area and improve work efficiency.
2. Intelligent control system: supports weight sensing and adaptive adjustment of lifting speed.
3. Electric manipulator: flexible grasping, adaptable to a variety of workpiece shapes and materials.
4. Modular design: easy installation and maintenance.
5. High-strength column structure: strong bearing capacity, stable operation, and good anti-fatigue performance.
6. Low-noise drive: using high-quality electric hoists, quiet operation and low vibration.
7. Safety protection: equipped with emergency stop, overload protection, limiter and other safety devices.
8. Weight adaptive identification: automatically identify the weight of the workpiece and adjust the lifting speed and acceleration to prevent impact and shaking
9. Precision positioning system: can set specific lifting height and rotation angle to assist precise operation
10. Safety interlock control: prevent misoperation, and cannot execute lifting or rotation commands when lifting conditions are not met
Handle
intelligent hoist
Control System
|
Industry Application
Automobile Manufacturing
1. Engine hoisting and positioning 2. Chassis parts loading and unloading 3. Door assembly auxiliary installation
Electronic and electrical industry
1. Washing machine/refrigerator shell assembly and handling 2. Precise placement of circuit boards and heat sinks 3. LCD panel vacuum suction handling
Hardware processing/mold manufacturing
1. Mold core handling 2. Vertical hoisting and positioning of metal workpieces 3. CNC loading and unloading auxiliary system
Warehousing/logistics center
1. Pallet handling, cargo stacking 2. Automatic outbound/inbound assistance 3. Linkage handling with AGV and conveyor lines
