EST-80
ESCOTT
Product Description

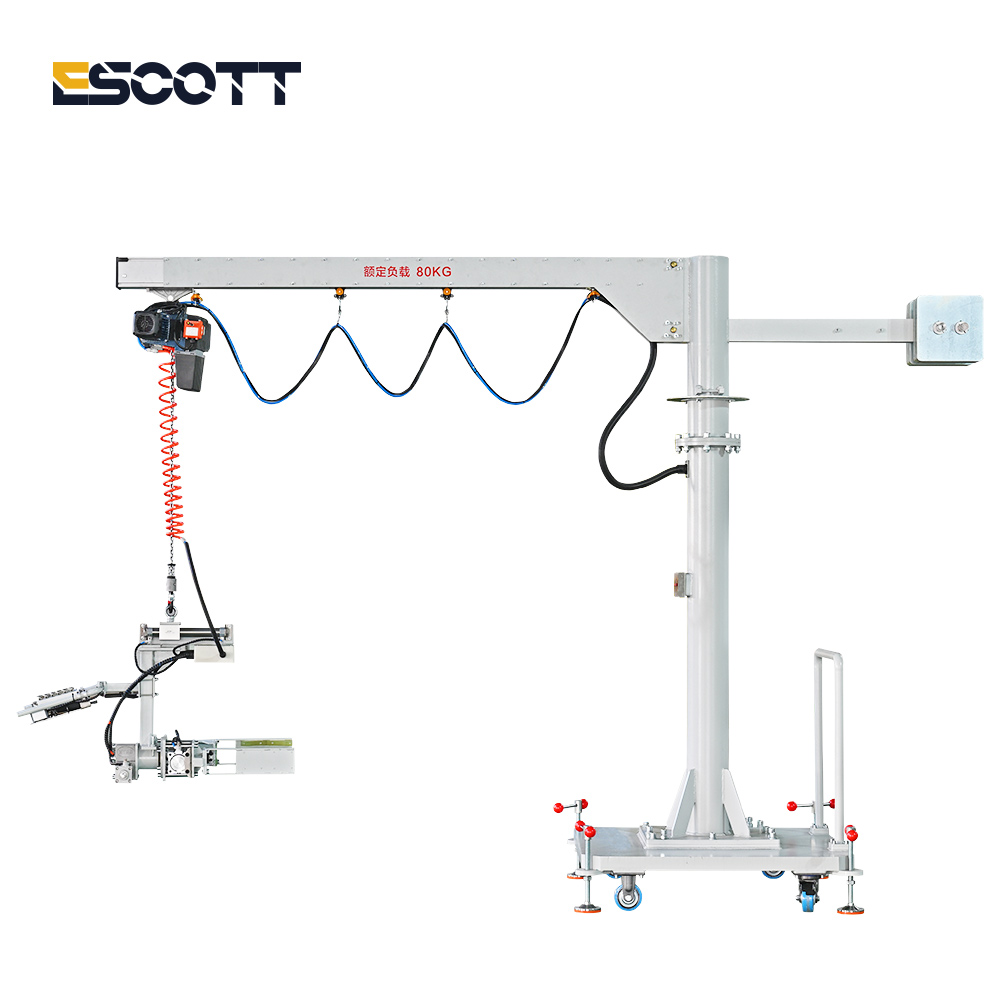

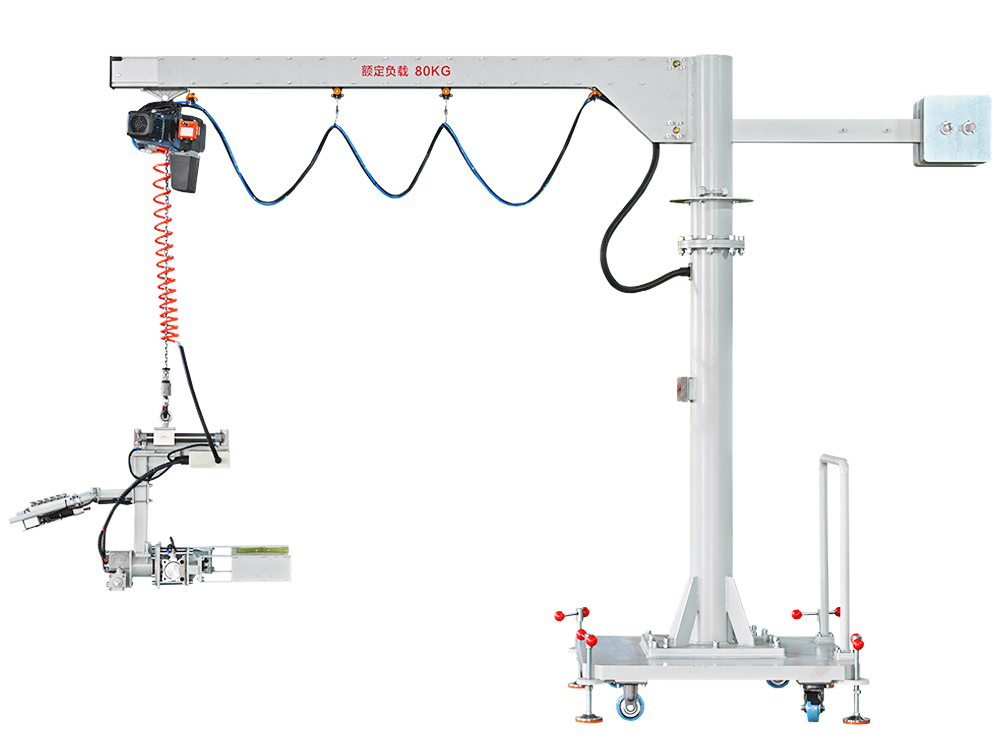

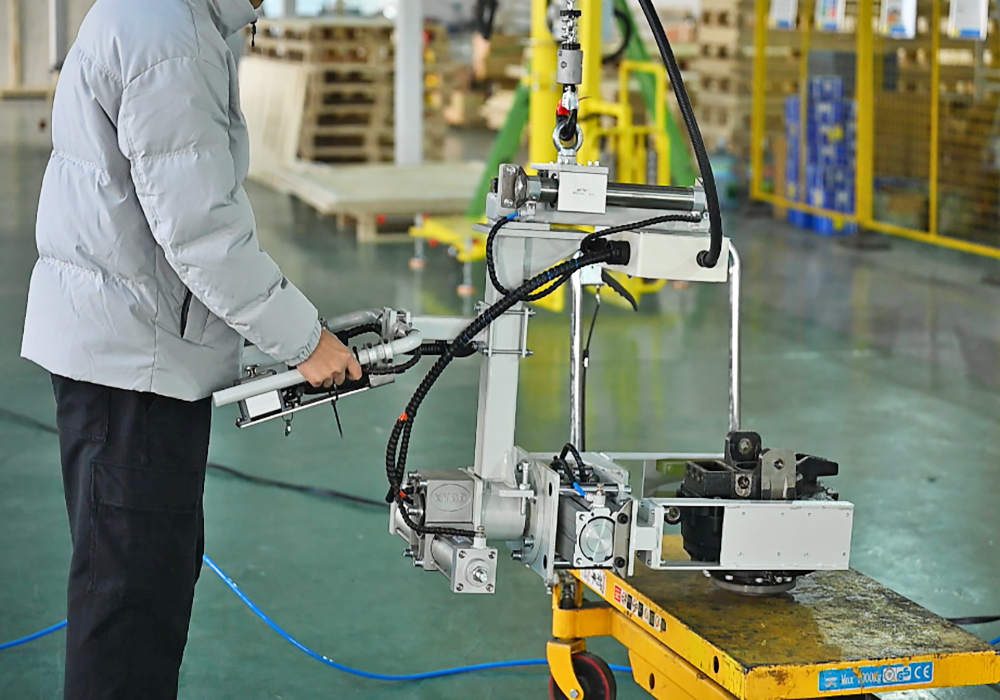

The 80kg Mobile Cantilever Crane with Hoist and Replaceable External Clamping Fixtures is designed to address frequent handling changes, limited workspace, and operator safety challenges in industrial environments.
Instead of relying on fixed lifting tools, this system offers a mobile, reconfigurable solution that adapts quickly to different loads and workflows.
By combining a mobile cantilever structure, a stable lifting hoist, and a quick-change external clamping interface, the crane allows operators to lift, transfer, and position materials smoothly and safely. One system can support multiple handling tasks simply by changing the clamping fixtures, making it an efficient alternative to multiple dedicated lifting devices.
| No. | Specification Item | Details |
|---|---|---|
| 1 | Maximum Load | 80 kg |

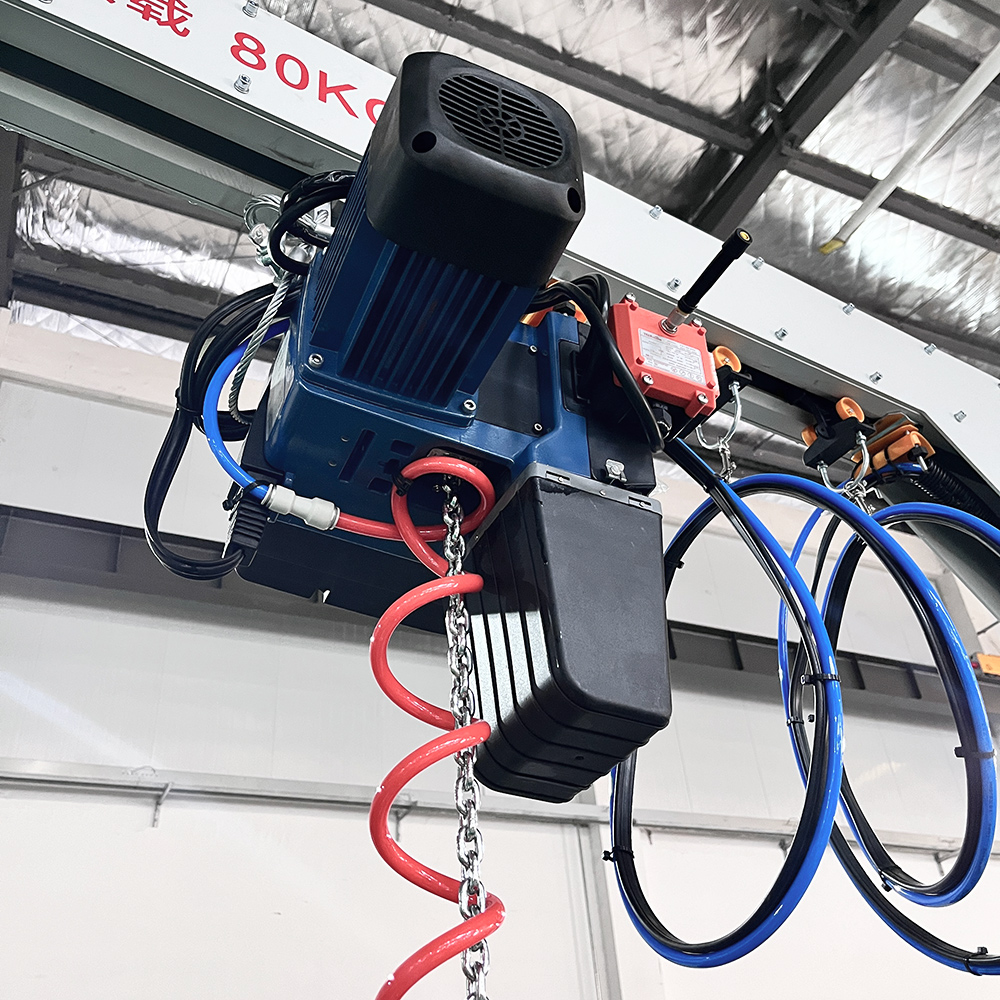

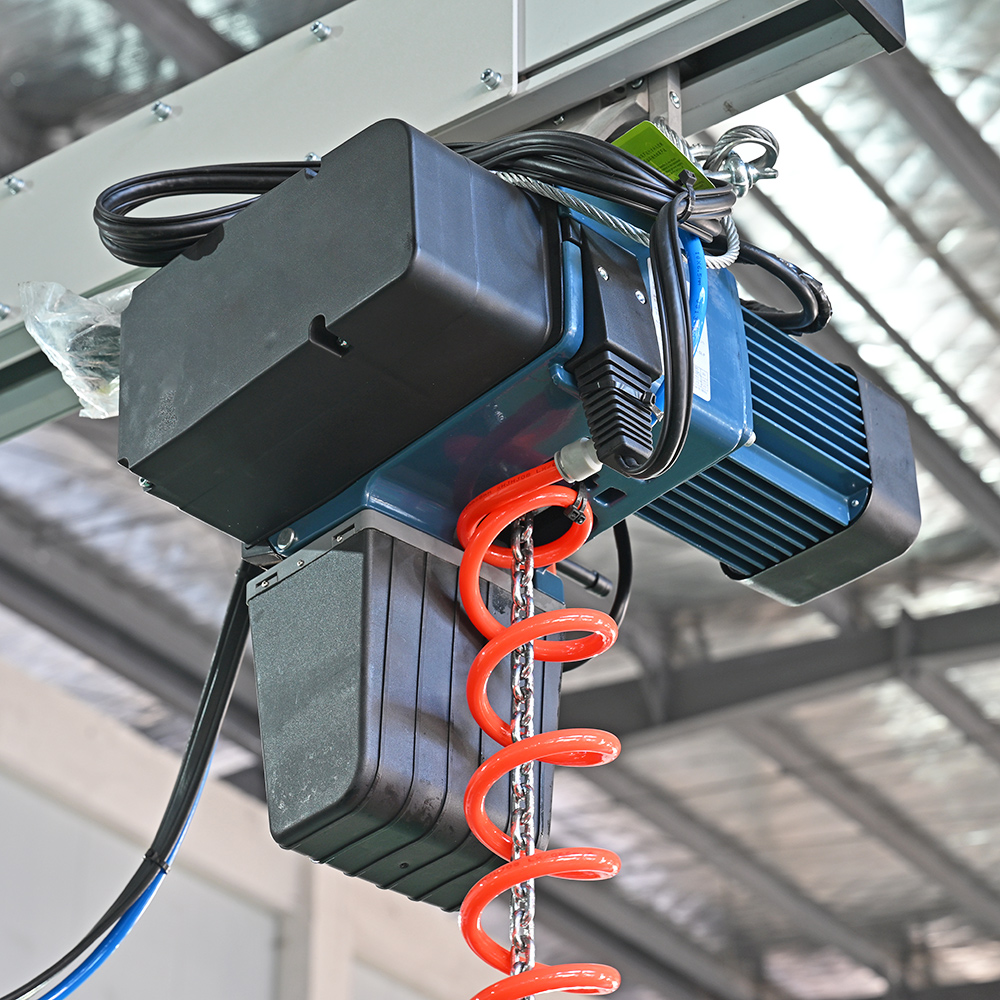

| 2 | Lifting Mechanism | Electric hoist / pneumatic hoist |
| 3 | Vertical Lifting Stroke | Up to 2,500 mm |
| 4 | Cantilever Working Radius | 1,000–3,000 mm |
| 5 | Slewing Angle | 270° or 360° rotation |

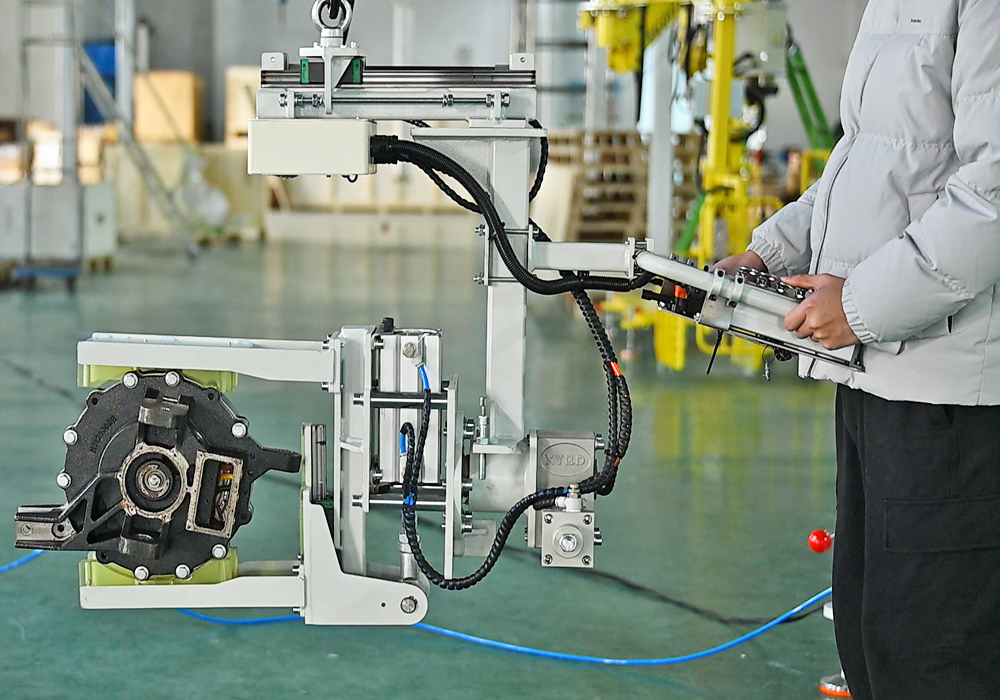

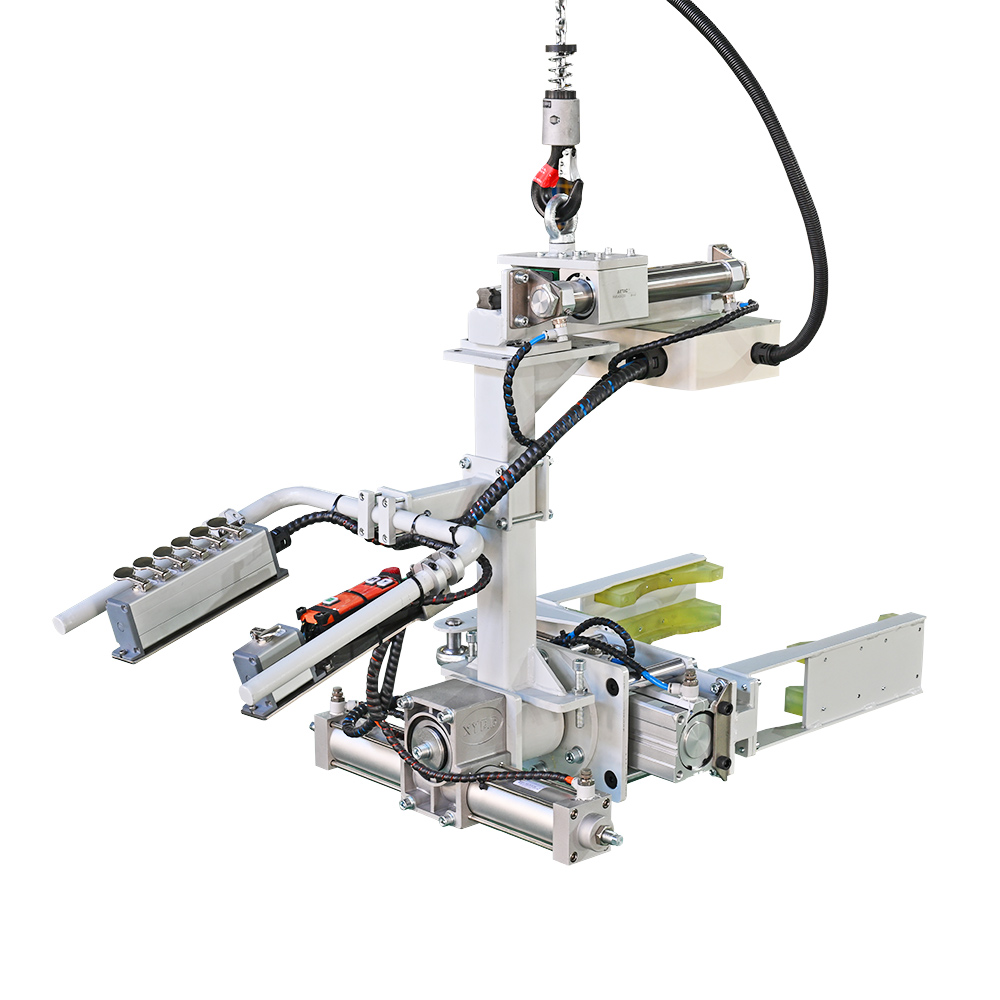

| 6 | Gripping Method | External clamping fixtures |
| 7 | Fixture Change Interface | Mechanical quick-lock system |
| 8 | Mobility System | Mobile base with braking casters |

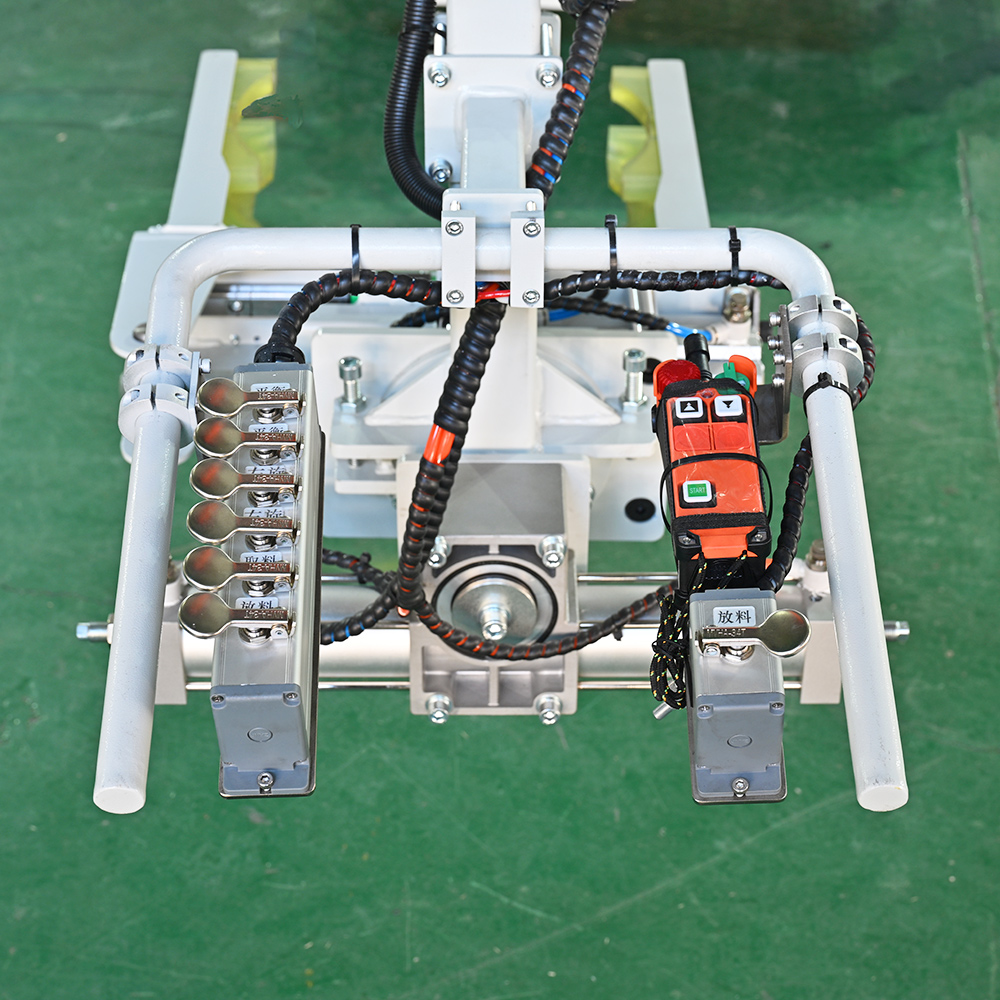

| 9 | Control Interface | Pendant or handle-mounted controls |
| 10 | Electrical Supply | 220V / 380V, 50–60Hz |
| 11 | Structural Design | Reinforced steel column and arm |
| 12 | Surface Protection | Industrial powder coating |
1. One System, Multiple Handling Tasks
Replaceable external clamps allow the crane to handle different materials without investing in additional equipment.
2. Designed for Dynamic Workflows
The mobile structure supports frequent repositioning, making it ideal for changing production layouts.
3. Stable and Predictable Lifting Motion
The hoist provides smooth vertical movement, improving load control and placement accuracy.
4. Improved Operator Safety
Secure clamping and controlled lifting reduce the risk of dropped loads and workplace injuries.
5. Extended Working Coverage
The rotating cantilever arm expands the handling area while minimizing the need for manual pushing or pulling.
6. Minimal Space Requirement
Compact column design enables installation and operation in narrow or crowded production areas.
7. Adaptable Configuration
Arm length, lifting height, power source, and clamping type can be adjusted to match application needs.
8. Industrial-Grade Reliability
Built to withstand continuous use in demanding workshop and factory environments.
9. Productivity-Focused Design
Shortens handling time, reduces operator strain, and supports consistent process flow.
1. Multi-Product Manufacturing Lines
Handling different parts or components on the same line by switching clamps.
2. Internal Material Flow
Moving items between workstations, pallets, and processing areas.
3. Assembly and Sub-Assembly Operations
Supporting accurate positioning during installation or fitting tasks.
4. Packaging and End-of-Line Handling
Assisting with final product placement and packaging preparation.
5. Maintenance and Support Tasks
Lifting tools, dies, or spare parts during equipment servicing.
