Bla-1500-8T
ESCOTT
Product Description

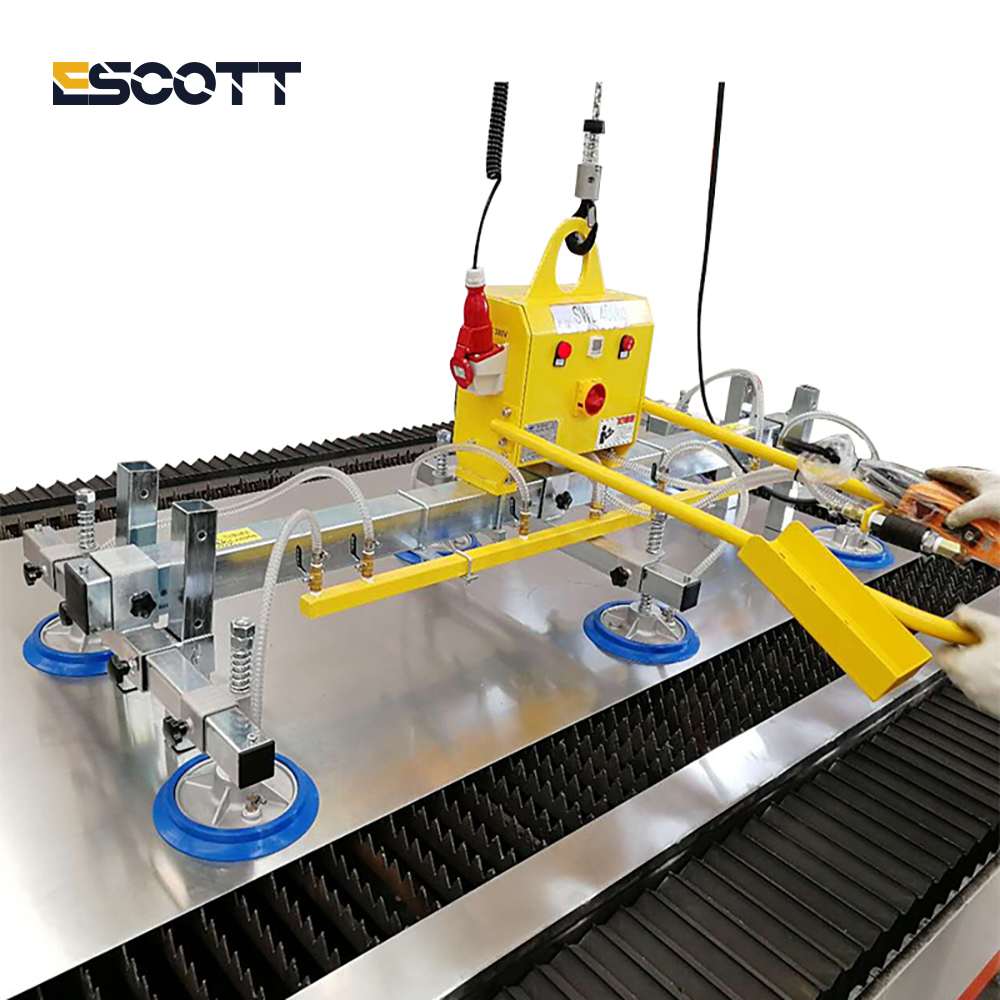

The Metal Sheet Vacuum Suction Crane Lifting Equipment is a powerful and efficient tool designed for the safe handling of glass panels, metal sheets, and other flat materials. Using vacuum suction technology, this system minimizes manual handling, reduces the risk of breakage, and enhances productivity in industrial and construction environments. Compatible with cranes and hoists, it is ideal for both horizontal and vertical lifting tasks.
| Parameter | Specification |
|---|---|
| Lifting Capacity | Up to 500 kg (customizable) |
| Material Compatibility | Glass, Metal Sheets, Stone Panels, etc. |
| Power Supply | 220V / 380V Electric (optional battery) |
| Vacuum Generation | Electric Vacuum Pump or Venturi System |
| Suction Pads | 4–8 pads (custom configuration) |
| Pad Diameter | 200–300 mm |
| Lifting Direction | Horizontal and Vertical (90° tilting) |
| Rotation | Manual or motorized 360° rotation |
| Control Mode | Wired remote / Wireless optional |
| Safety Features | Vacuum gauge, buzzer, non-return valve |
High Load Capacity – Lifts up to 500 kg of glass, metal sheets, or panels
Electric or Pneumatic Operation – Flexible for different job site needs
Adjustable Suction Pads – Easily adapts to various sizes and surfaces
360° Rotation & 90° Tilt – Enables precise positioning during installation
Safety First – Built-in alarm system, vacuum reserve, and emergency stop
Crane-Compatible Design – Attaches to overhead cranes, gantries, or jib arms

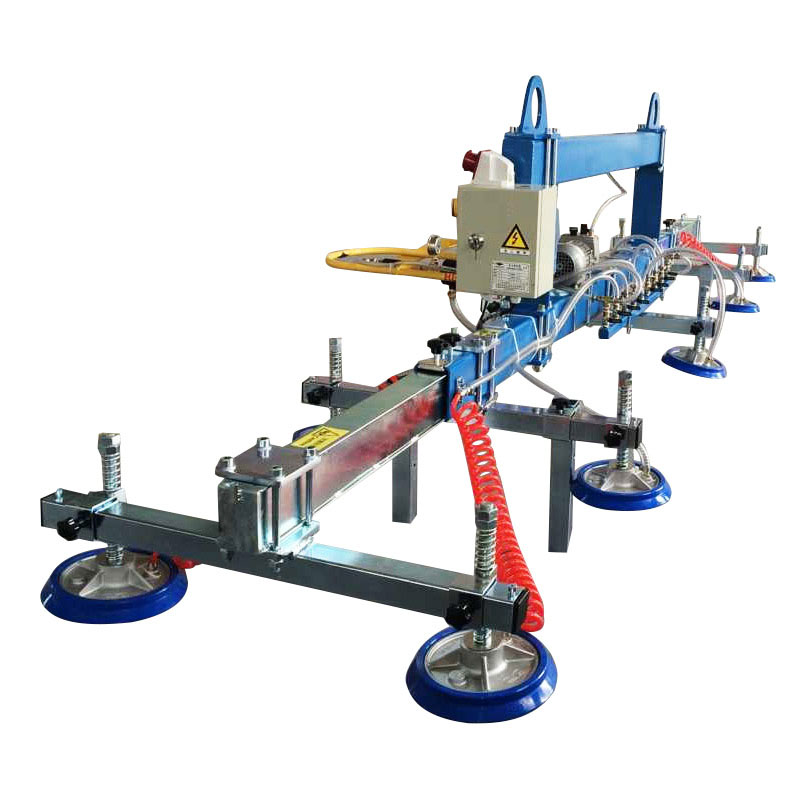

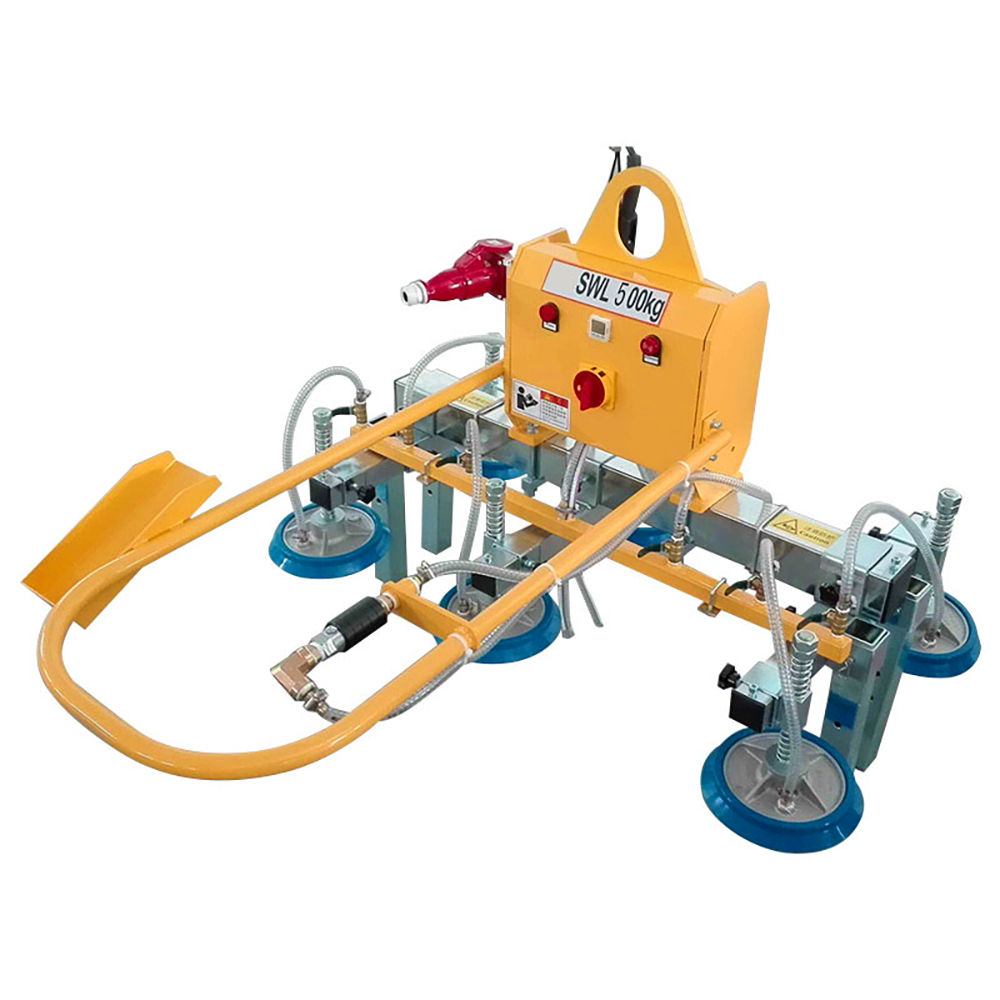

Suction cup
Suction cup

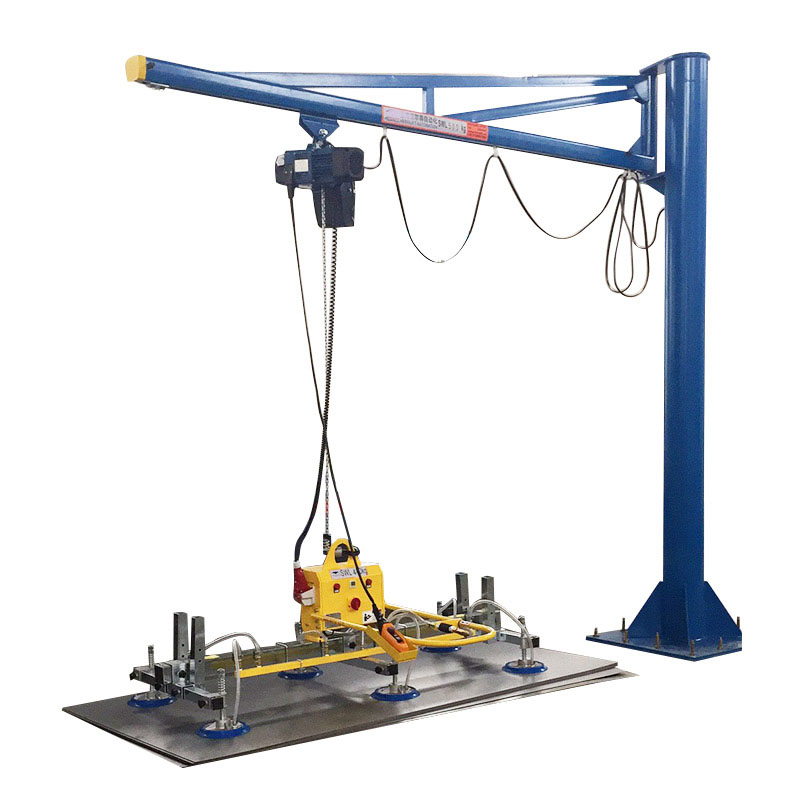

Cantilever Crane
Glass Manufacturing & Installation – Handling large glass panels safely and efficiently

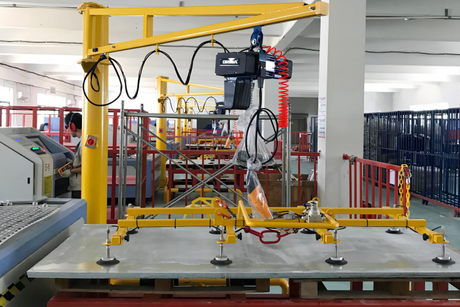

Metal Fabrication Plants – Lifting and transporting steel or aluminum sheets
Warehouse & Logistics – Moving heavy flat goods with minimal labor
Construction Sites – Installing façade glass or sheet materials at height
Stone & Composite Panel Handling – Safe lifting of fragile or heavy slabs
Load | Moldel No. | Suction Cup | suction power | vacuum pump | power supply | control method | ||
(kg) | (Diameter) (mm) | (kg)(of single cup) | voltage | frequency | phases | manual | ||
250 | BLA250-4-230 | 230 | 125 | VT4.4 | 220/380 | 50/60Hz | 1/3 | manual |
250 | BLA250-6-150 | 150 | 45 | VT4.4 | 220/380 | 50/60Hz | 1/3 | manual |
400 | BLA400-8-150 | 150 | 60 | VT4.4 | 220/380 | 50/60Hz | 1/3 | manual |
500 | BLA500-6-230 | 230 | 125 | VT4.4 | 220/380 | 50/60Hz | 1/3 | manual |
800 | BLA800-8-230 | 230 | 125 | VT4.8 | 220/380 | 50/60Hz | 1/3 | manual |
1000 | BLA1000-8-230 | 230 | 200 | VT4.16 | 220/380 | 50/60Hz | 3 | manual/electric |
1500 | BLA1500-8-300 | 300 | 200 | VT4.16 | 220/380 | 50/60Hz | 3 | manual/electric |
2000 | BLC2000-10-300 | 300 | 200 | V4.25 | 220/380 | 50/60Hz | 3 | manual/electric |
Customized | Customized | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
