Product Description

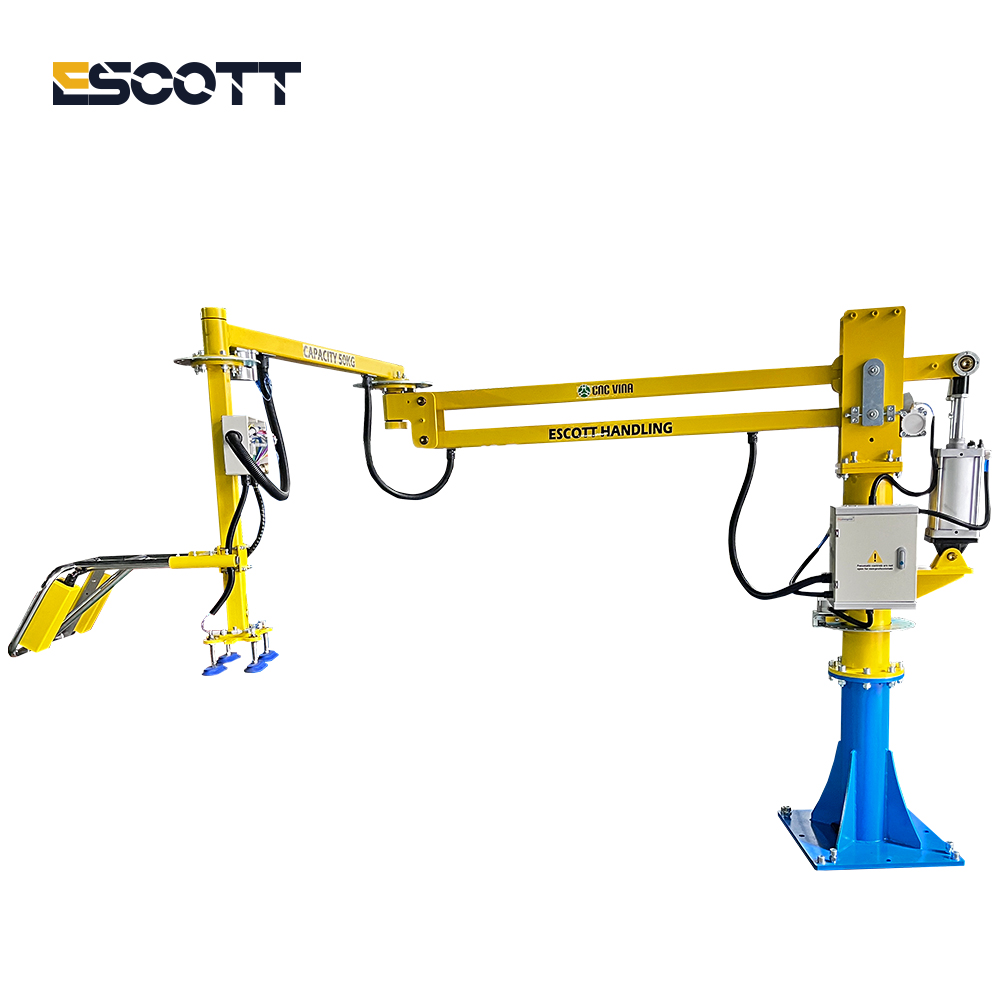

The Customized Pneumatic Manipulator with Suction Cup Fixture is a professional material handling solution designed for carton lifting and handling tasks on production lines. Using high-performance pneumatic power and vacuum suction technology, it allows operators to lift, rotate, and position cartons or boxes quickly and effortlessly.
Built with a customized fixture system and an ergonomic control handle, this manipulator helps improve productivity, reduce manual labor, and enhance workplace safety. It’s ideal for packaging, logistics, warehousing, and assembly line applications where efficient carton movement is essential.
| Item | Specification |
|---|---|
| Model | GR50-3012 |
| Rated Load Capacity | 50 kg (customizable) |
| Working Radius | 2000–2500 mm |
| Vertical Stroke | 1200–1500 mm |

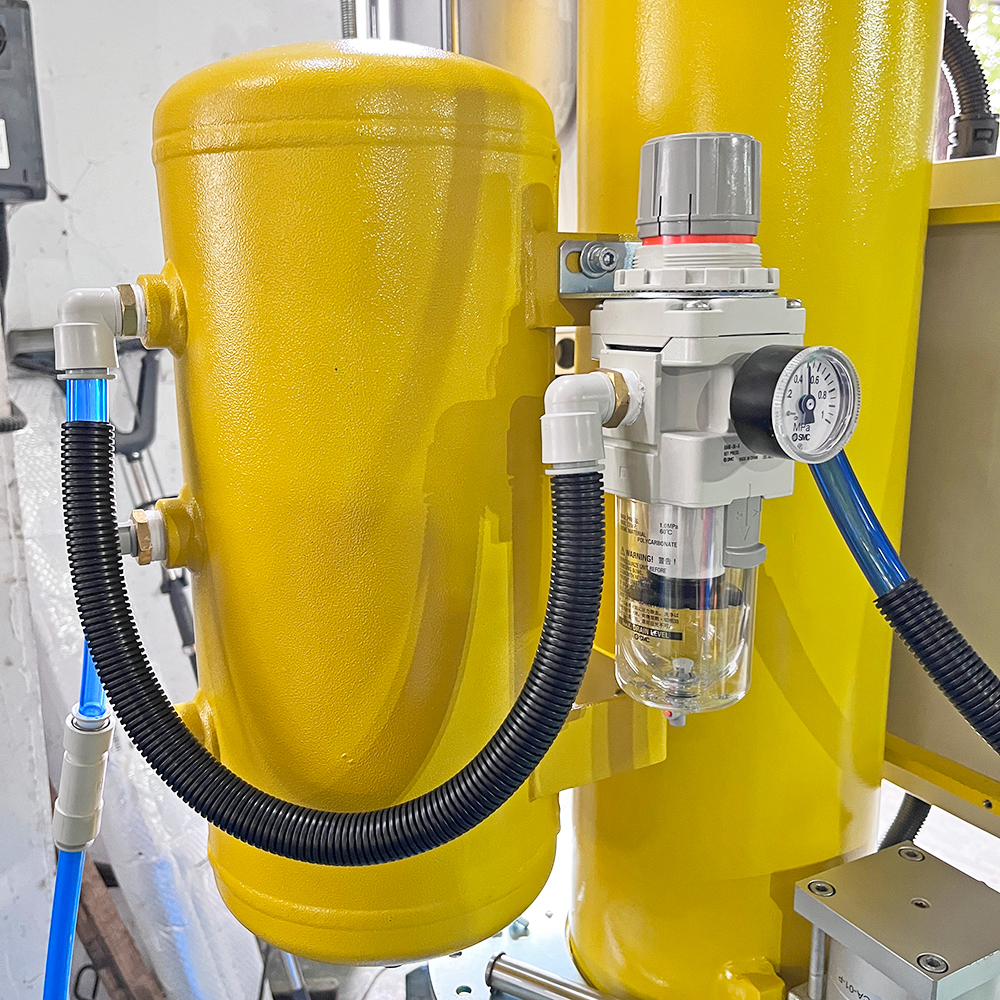

| Air Pressure | 0.5–0.8 MPa |
| Power Source | Compressed air only |

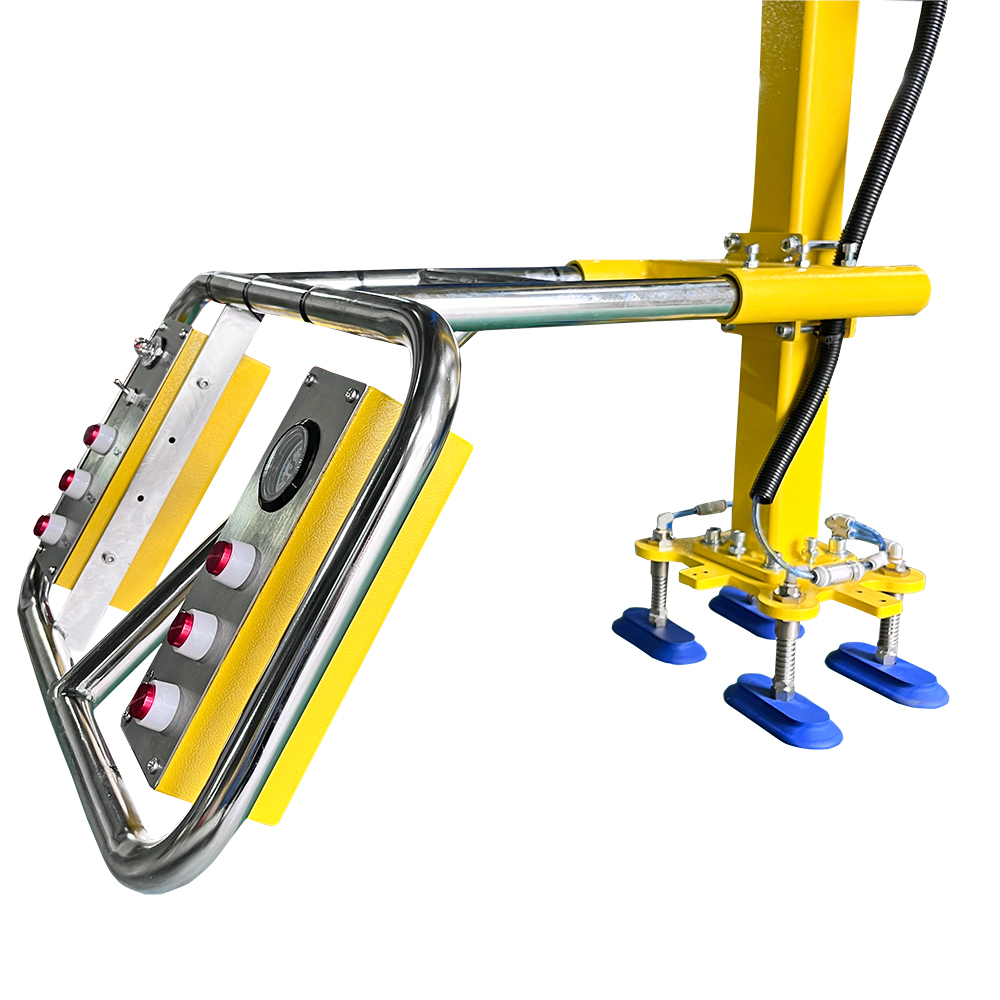

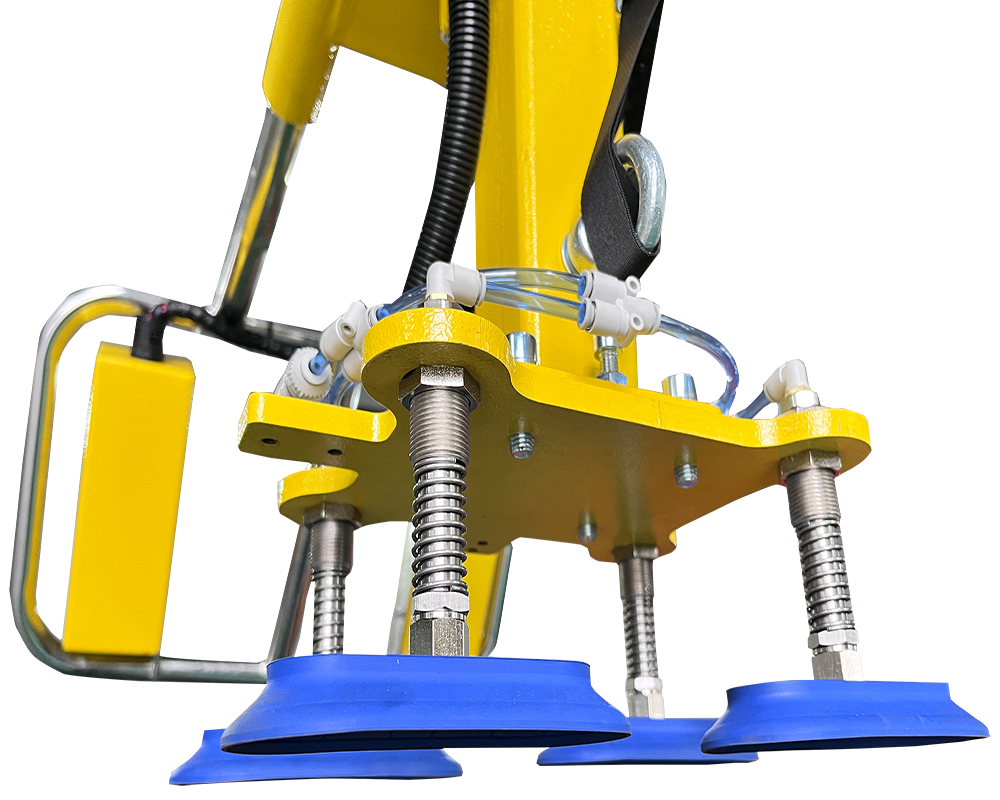

| End Effector | Vacuum suction cup fixture (customizable shape/size) |
| Control Mode | Pneumatic one-hand handle control |
| Rotation | 360° free rotation |
| Installation Type | Floor-mounted / movable base optional |
| Material | High-strength steel frame |
| Safety System | Anti-drop valve + pressure monitoring device |

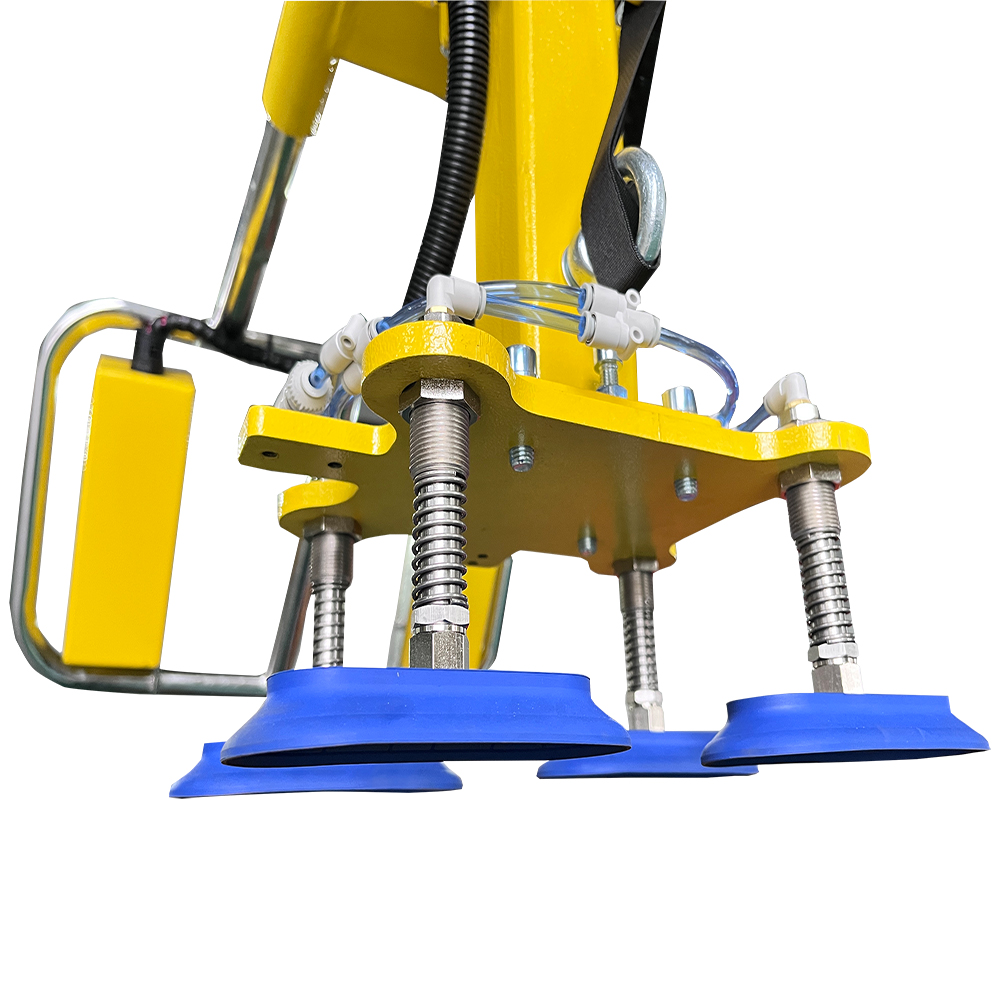

Vacuum Suction Technology – Efficiently grips cartons, boxes, or smooth-surface items with strong suction stability.
Customizable Suction Fixture – Adjustable cup size, layout, and number to match various carton dimensions and weights.

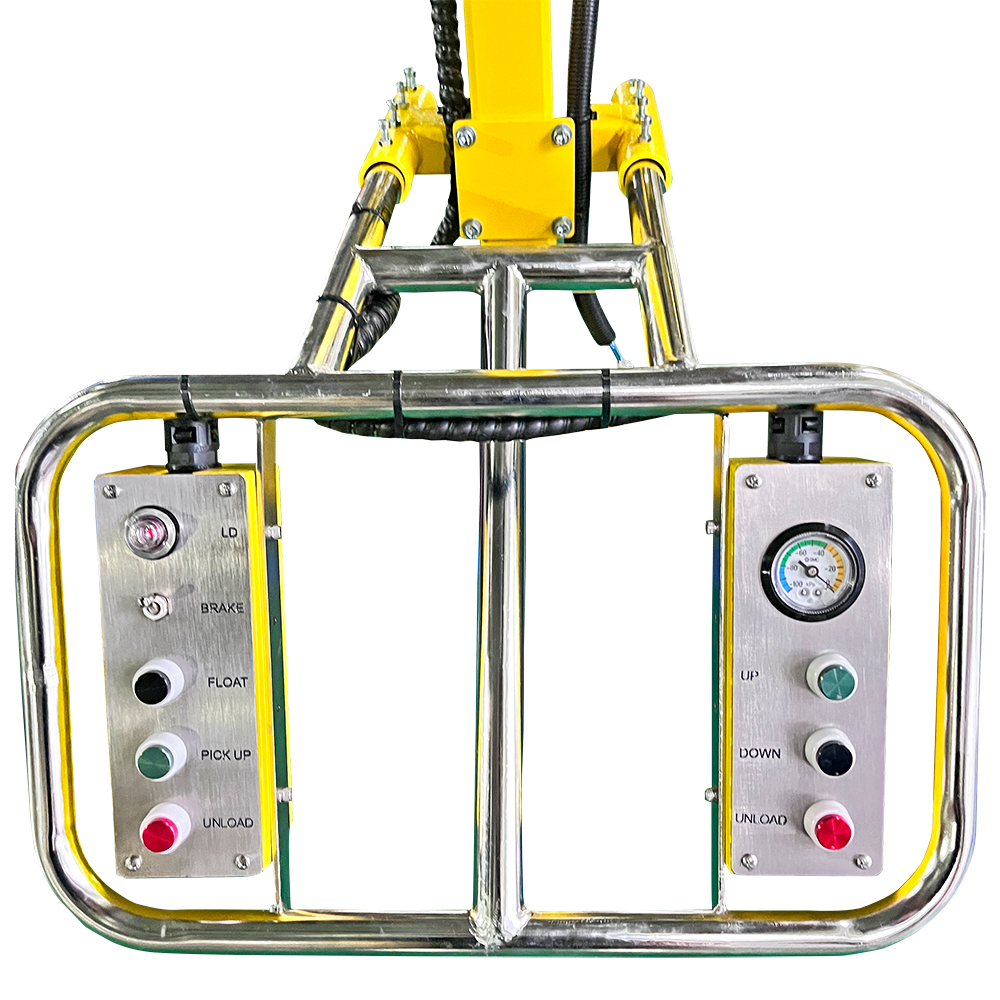

Ergonomic Pneumatic Control – Simple one-hand control for precise and easy lifting, lowering, and positioning.
360° Rotation Capability – Enables flexible operation in multi-directional workflows on production lines.
Safety Protection System – Equipped with air loss lock, overload protection, and anti-drop mechanisms.
Durable Structure – Made from high-strength steel, ensuring long service life and reliability under heavy use.
Low Maintenance Design – Pneumatic mechanism requires minimal maintenance with no electrical components.
Energy-Saving and Eco-Friendly – Operates entirely on compressed air, no electricity required.
Custom Integration Available – Easily integrates into existing conveyor systems or workstation setups.
Packaging and Carton Palletizing Lines – Perfect for lifting, stacking, and transferring boxes and cartons.
Logistics and Warehousing – Helps move packed goods efficiently, reducing manual labor intensity.
Food and Beverage Production – Handles cartons of bottled or boxed products safely and hygienically.
Electronics and Appliance Manufacturing – Lifts lightweight packed items or components without damage.
E-commerce and Distribution Centers – Improves loading/unloading efficiency for shipping and order fulfillment.
