ESCOTT
Product Description
The Customized 500kg Glass Vacuum Lifter is an advanced material handling solution designed for safely and efficiently lifting glass panels, sheet metal, and other flat, non-porous materials. Equipped with high-quality suction cups and a powerful vacuum system, it ensures secure gripping and smooth operation, reducing the risk of damage and improving workplace efficiency. Built for industrial environments, it offers flexible installation options, ergonomic controls, and safety features for continuous heavy-duty use.
| Parameter | Value |
|---|---|
| Model | GVL-500 |
| Lifting Capacity | 500 kg |
| Suction Cup Diameter | 250 mm / Customizable |
| Number of Suction Cups | 4–8 (Adjustable according to load) |
| Frame Type | Fixed or Rotating Frame |
| Rotation | 0°–360° Manual / Electric |
| Tilting Function | 0°–90° Manual / Electric |
| Power Source | Electric or Pneumatic Vacuum Pump |
| Safety Features | Vacuum Pressure Gauge, Alarm, Check Valve |
| Material | High-Strength Steel + Powder Coating |
| Application Materials | Glass, Sheet Metal, Stone, Acrylic Panels |
| Operating Temperature | -10°C to 50°C |
Strong 500kg Capacity – Handles large glass sheets and heavy metal panels with ease.
Secure Vacuum Suction – Industrial-grade suction cups ensure stable and damage-free lifting.
360° Rotation – Flexible handling for positioning materials in any direction.
90° Tilting Mechanism – Supports vertical-to-horizontal or horizontal-to-vertical transfers.
Customizable Cup Layout – Adjustable arm positions to match material size and shape.
Dual Power Options – Available in electric or pneumatic versions to suit site conditions.
Safety Alarm & Pressure Gauge – Ensures proper vacuum level before lifting.
Heavy-Duty Frame – Corrosion-resistant steel for long-lasting durability.
Quick Installation & Operation – User-friendly controls minimize training time.

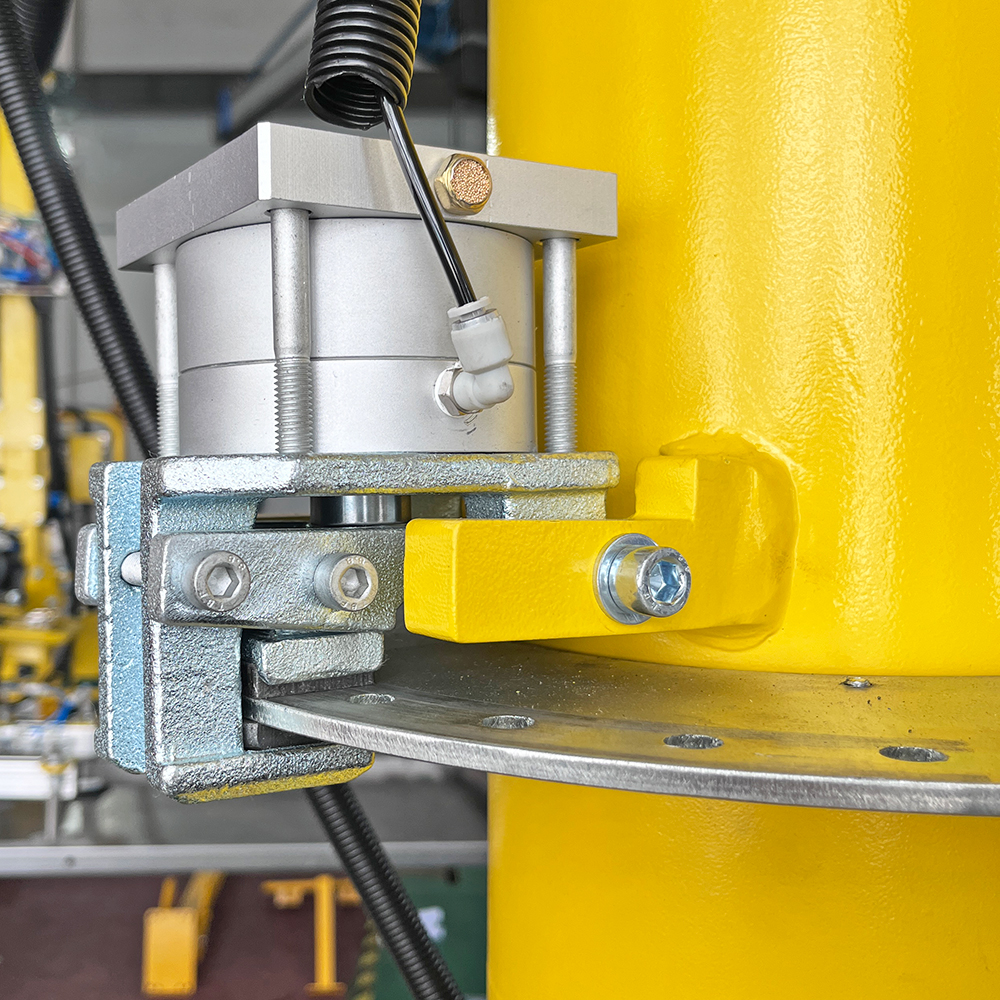

brake
Suction cup

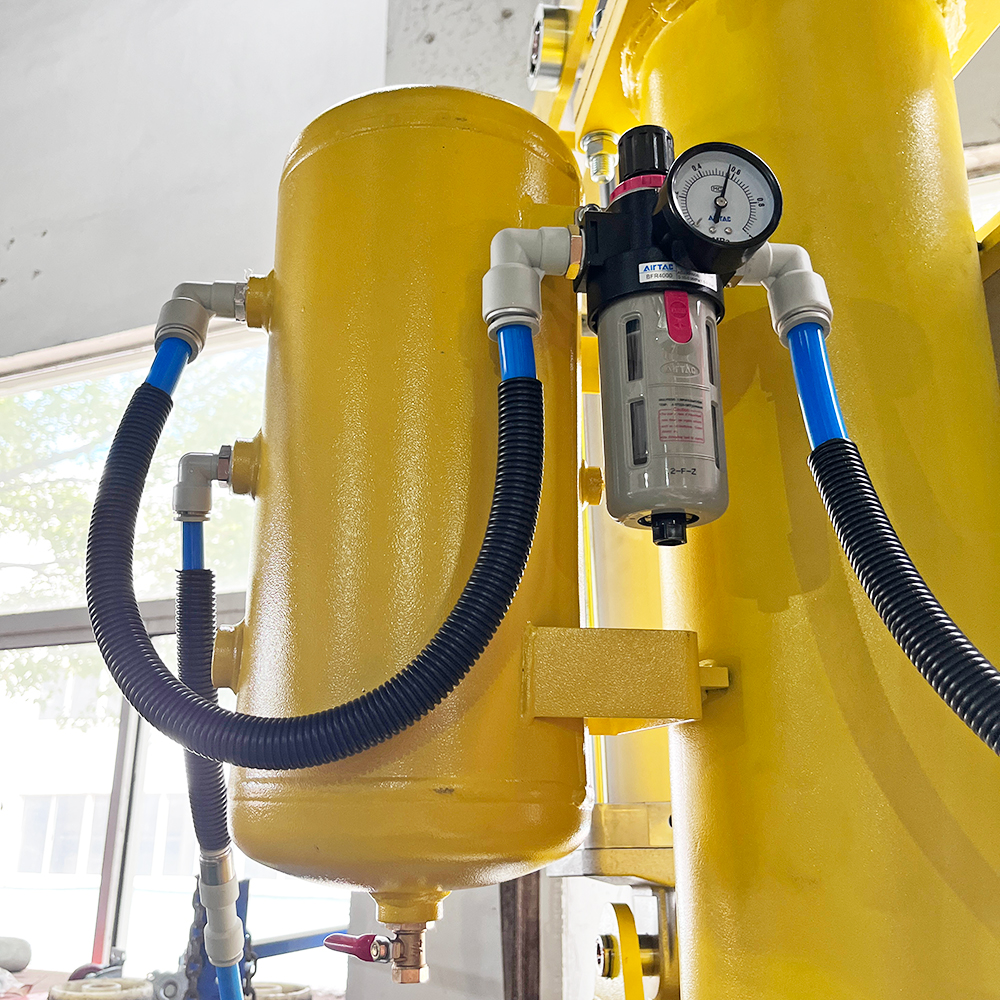

gas tank
Glass Processing Plants – Lifting and positioning large glass panels for cutting or installation.
Metal Fabrication – Moving sheet metal during manufacturing or welding processes.
Construction Sites – Installing glass windows, doors, or façade panels.
Stone & Marble Industry – Handling smooth stone slabs without scratching.
Warehouse & Logistics – Loading/unloading flat materials onto racks or machines.

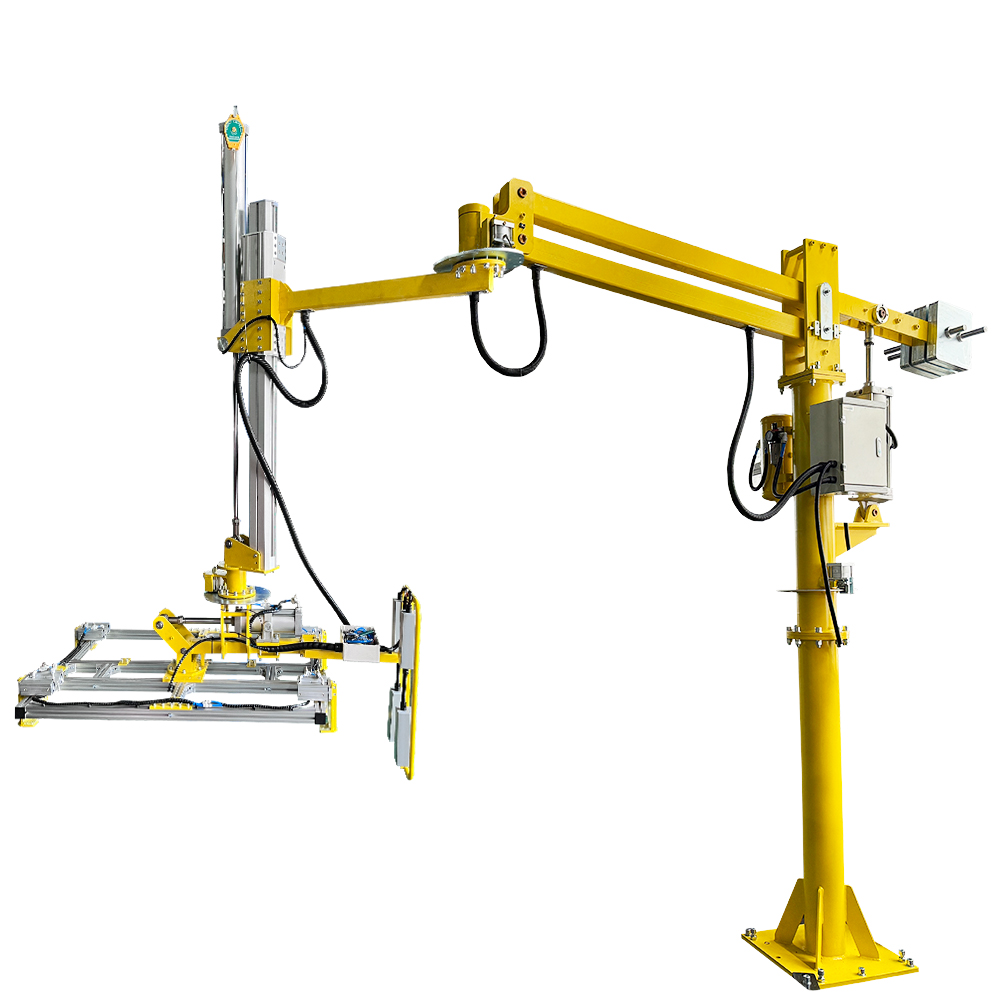

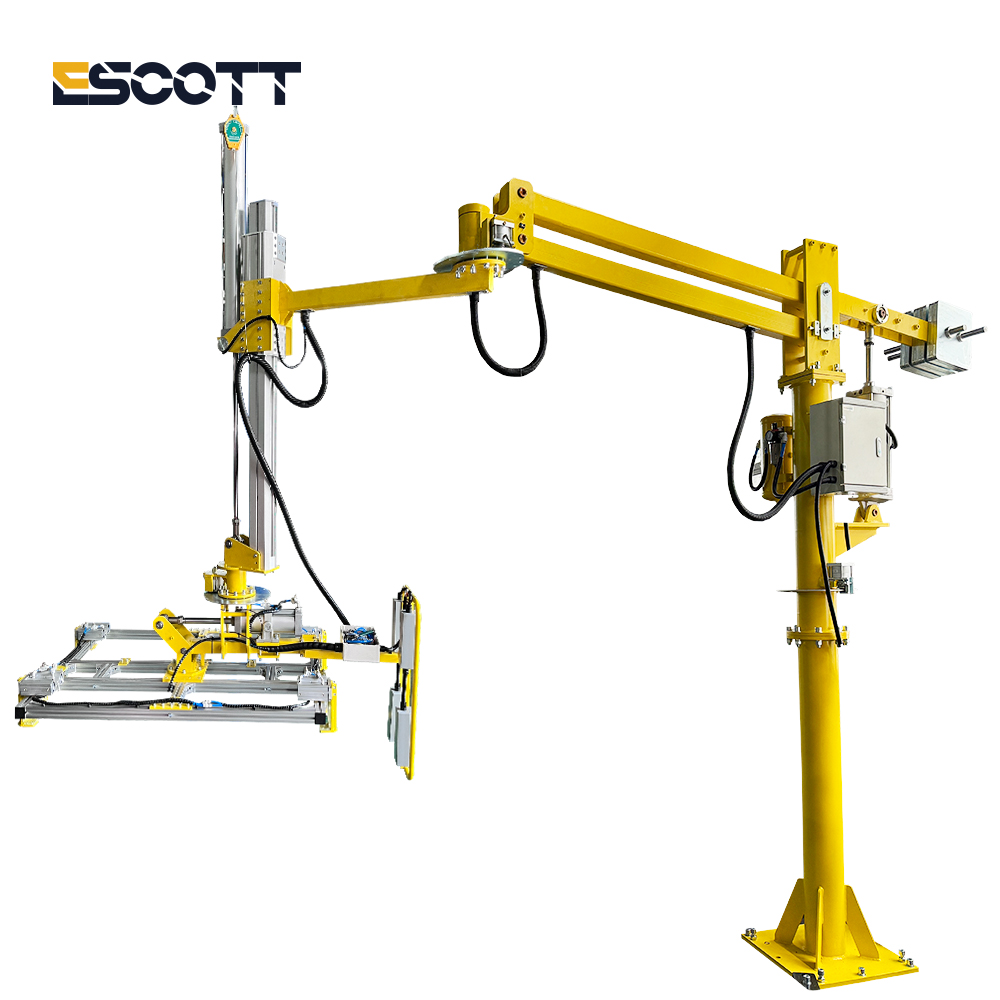

manipulator

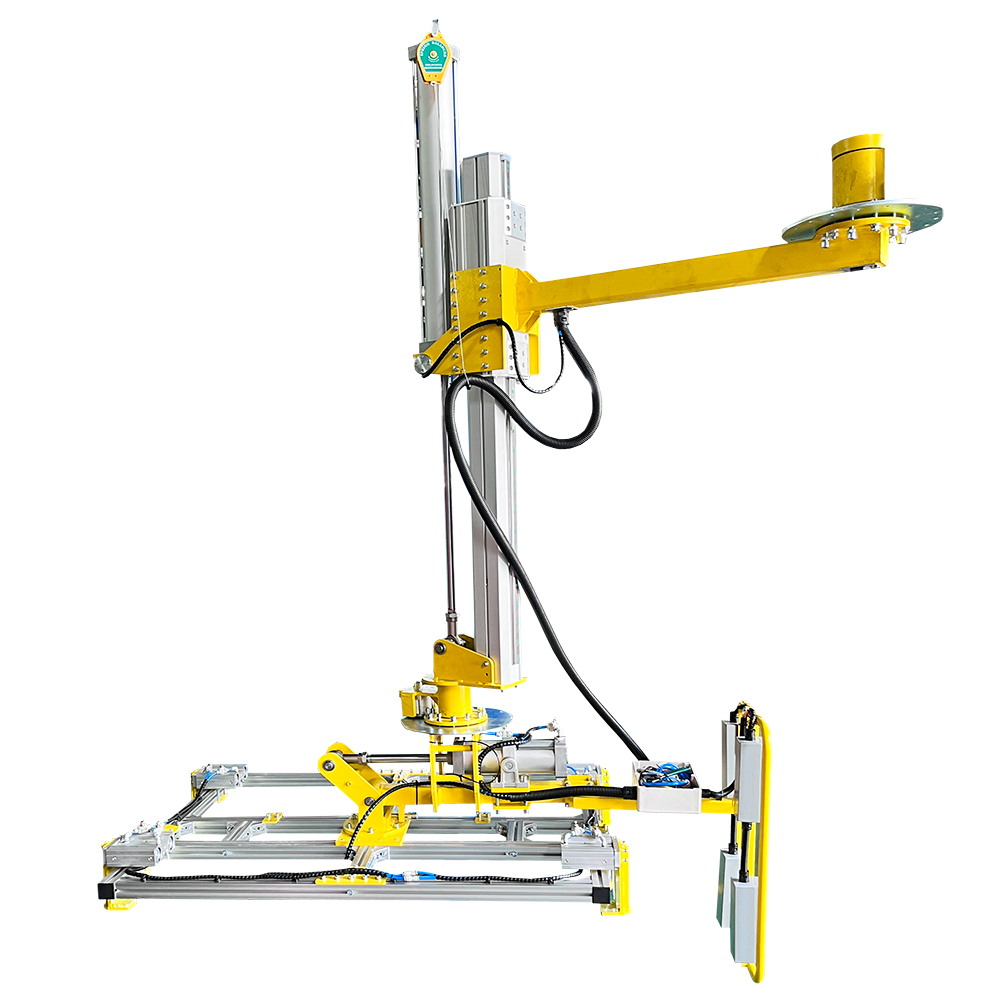

suction lifter
Q1: Can it lift materials other than glass?
A1: Yes, it can lift sheet metal, acrylic panels, stone slabs, and other non-porous flat materials.
Q2: How is the vacuum created?
A2: It uses an electric or pneumatic vacuum pump connected to the suction cups.
Q3: What happens if the vacuum pressure drops?
A3: A safety alarm will alert the operator, and the check valve will help maintain grip temporarily.
Q4: Can I change the number of suction cups?
A4: Yes, the system allows flexible cup arrangement based on the load size.
Q5: Is the frame fixed or movable?
A5: Both fixed and rotating frames are available, depending on your application.
