100kg Vacuum Jib Crane with Sheet Metal Handling And 90° Tilting Function

Name: 100kg Vacuum Jib Crane with Sheet Metal Handling And 90° Tilting Function
Brand: ESCOTT
Rating: 5.0 (2 reviews)

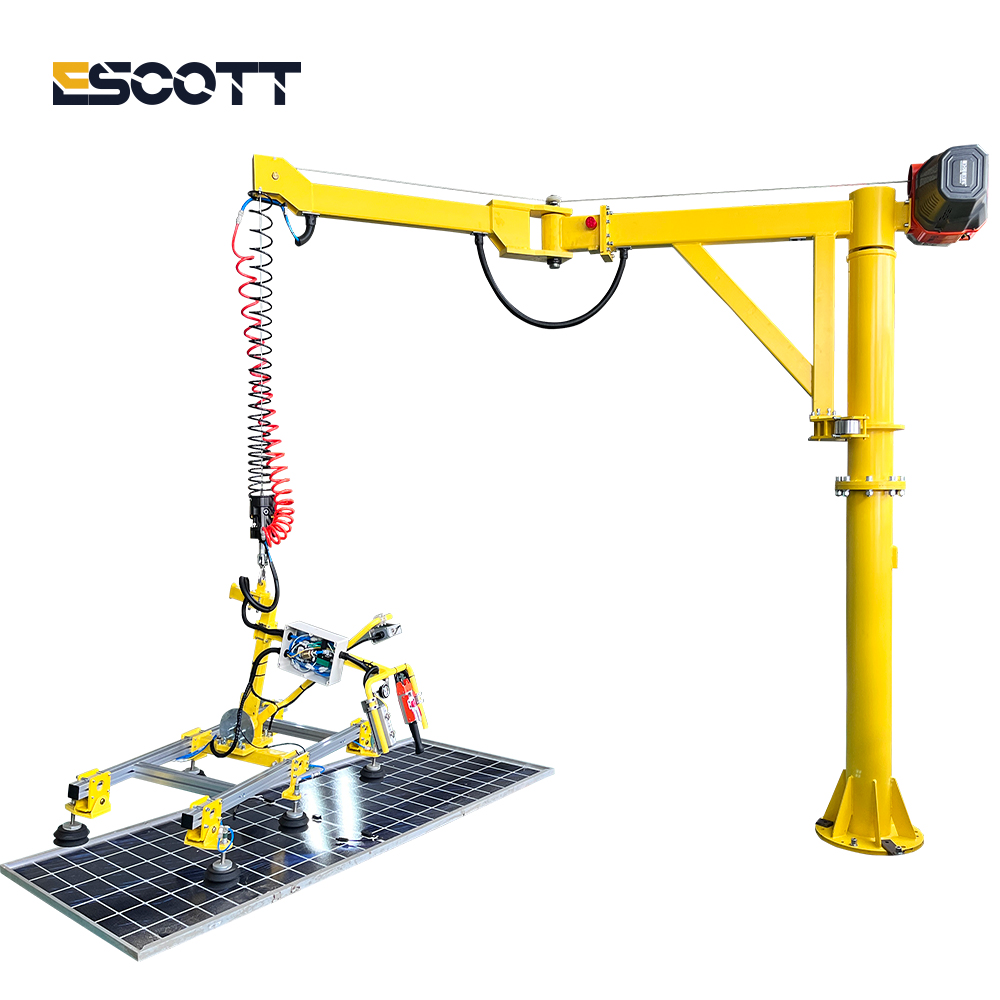

100kg Vacuum Jib Crane with Sheet Metal Handling and 90° Tilting Function is an ergonomic lifting solution designed for safe and efficient handling of sheet materials, metal plates, glass panels, and other flat workpieces. Combining a flexible jib crane structure with a powerful vacuum suction lifting system, it enables operators to easily lift, transfer, position, and rotate materials with minimal physical effort.

Key Features:
1. 100kg load capacity for lightweight sheet material handling
2. Vacuum suction lifting for stable and surface-protected handling
3. 90° tilting function for easy plate flipping and positioning
4. Flexible jib crane operation for precise material transfer
5. Customized suction cups and structures for different applications
6. Ideal for metal fabrication, machining, and assembly industries

Typical Applications:
1. Steel plate and stainless steel sheet handling
2. CNC machine loading and unloading
3. Laser cutting and fabrication workshops
4. Welding and assembly operations
5. Glass and panel material transfer
6. Industrial production line material handling

Availability:

Quantity:



Inquire Add to Basket

Model:
GR100-3022
Brand:
ESCOTT

Product Description

In metal fabrication, machining, and manufacturing industries, handling sheet materials manually can be time-consuming and physically demanding. Heavy steel plates, stainless steel sheets, aluminum panels, and other flat materials often require frequent lifting, transferring, and repositioning, which may lead to low efficiency, material damage, and increased workplace risks.

ESCOTT’s 100kg Vacuum Jib Crane with Sheet Metal Handling and Tilting Function is designed to provide a safe, efficient, and ergonomic solution for plate material handling. Combining a flexible jib crane structure with a powerful vacuum suction lifting system, it enables operators to easily lift, move, position, and rotate sheet materials with minimal effort.

The integrated 90° tilting function allows sheet materials to be smoothly turned from horizontal to vertical positions, making it ideal for applications such as CNC machine loading, welding preparation, cutting operations, and assembly processes. The vacuum suction cups provide stable gripping force while protecting the surface quality of the workpiece.

With a 100kg lifting capacity, compact structure, and customizable design, ESCOTT vacuum jib cranes help manufacturers improve handling efficiency, reduce manual labor, and create a safer working environment.

Technical Parameters

Parameter	Specification
Product Type	Vacuum Jib Crane
Maximum Load Capacity	100kg
Lifting Method	Vacuum Suction
Application Material	Steel Plate, Stainless Steel Sheet, Aluminum Plate, Glass Panel
Tilting Function	90° Rotation / Turning
Operation Mode	Manual Control
Crane Structure	Folding Arm / Jib Crane
Installation Type	Floor Mounted / Customized
Control System	Vacuum Control Handle

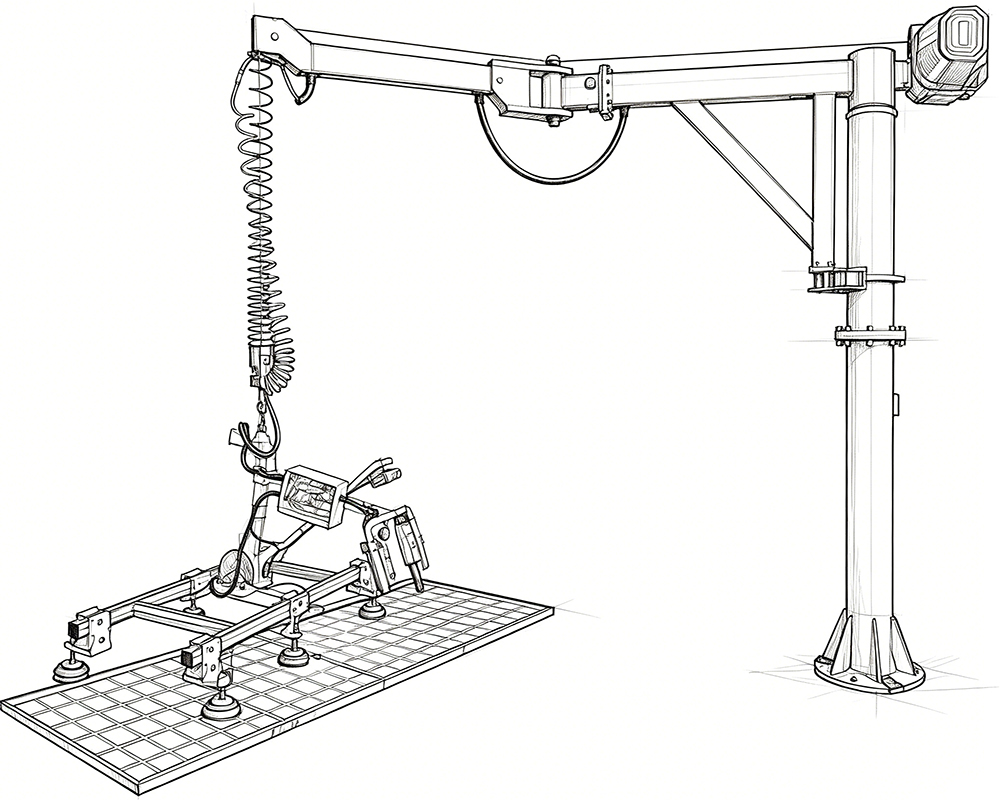

jib crane

Product Features

1. Vacuum Suction Lifting for Safe Sheet Handling

The vacuum gripping system securely holds flat materials such as steel plates, glass panels, aluminum sheets, and other smooth surfaces, reducing the risk of scratches and deformation.

2. 90° Tilting and Rotation Function

The customized turning mechanism allows operators to easily rotate sheet materials between horizontal and vertical positions, improving flexibility in production processes.

3. Flexible Jib Crane Operation

The jib crane design provides smooth horizontal movement and precise positioning, allowing materials to be transferred efficiently within the working area.

4. Ergonomic Labor-Saving Solution

The vacuum lifting system reduces the need for manual lifting, helping operators handle materials safely while minimizing physical fatigue.

5. Customized Vacuum Gripper Design

ESCOTT can customize suction cup layouts, crane dimensions, lifting height, and working radius according to different material sizes and production requirements.

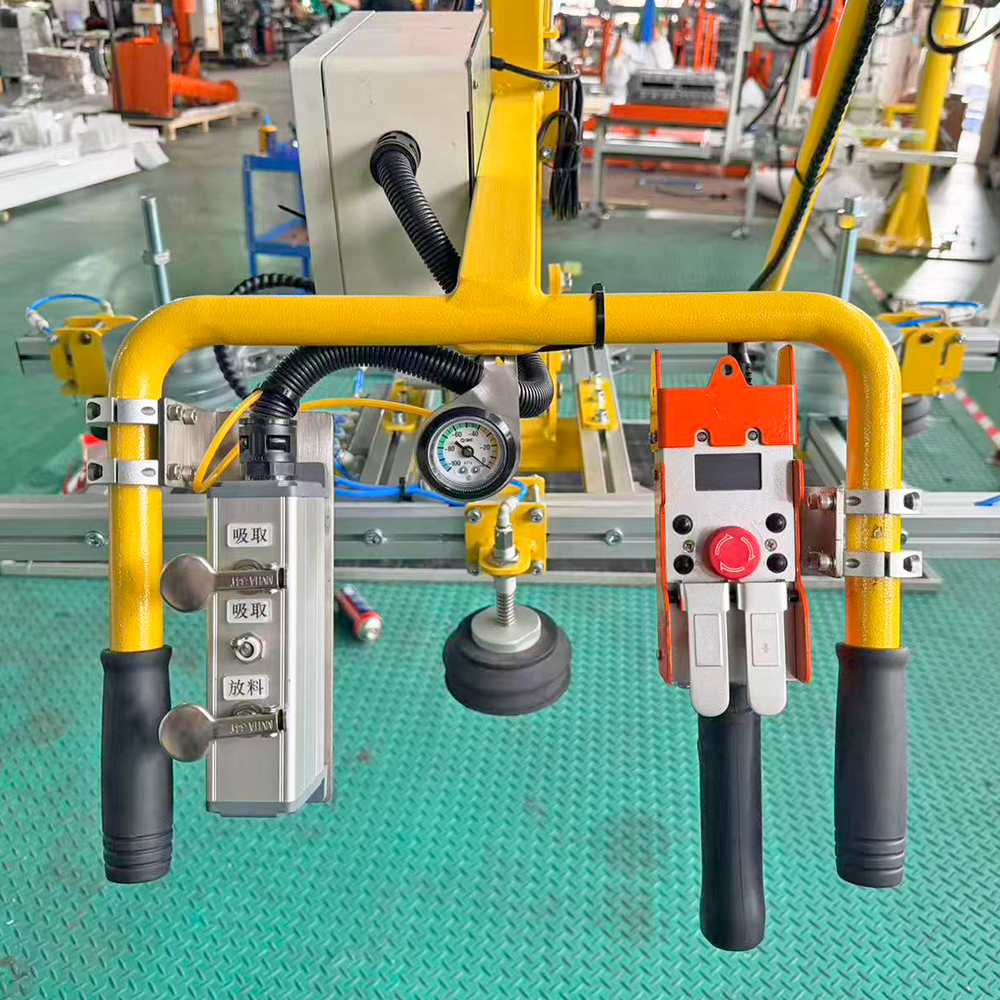

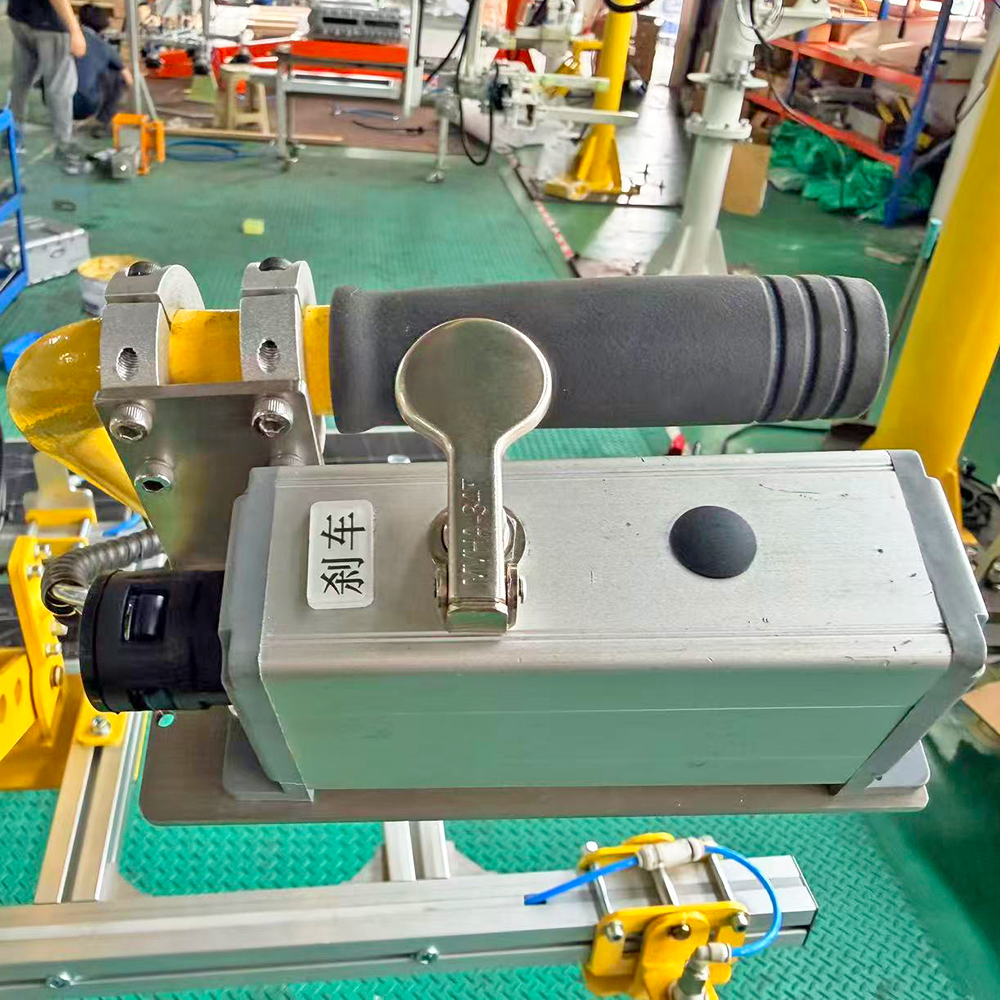

Control handle

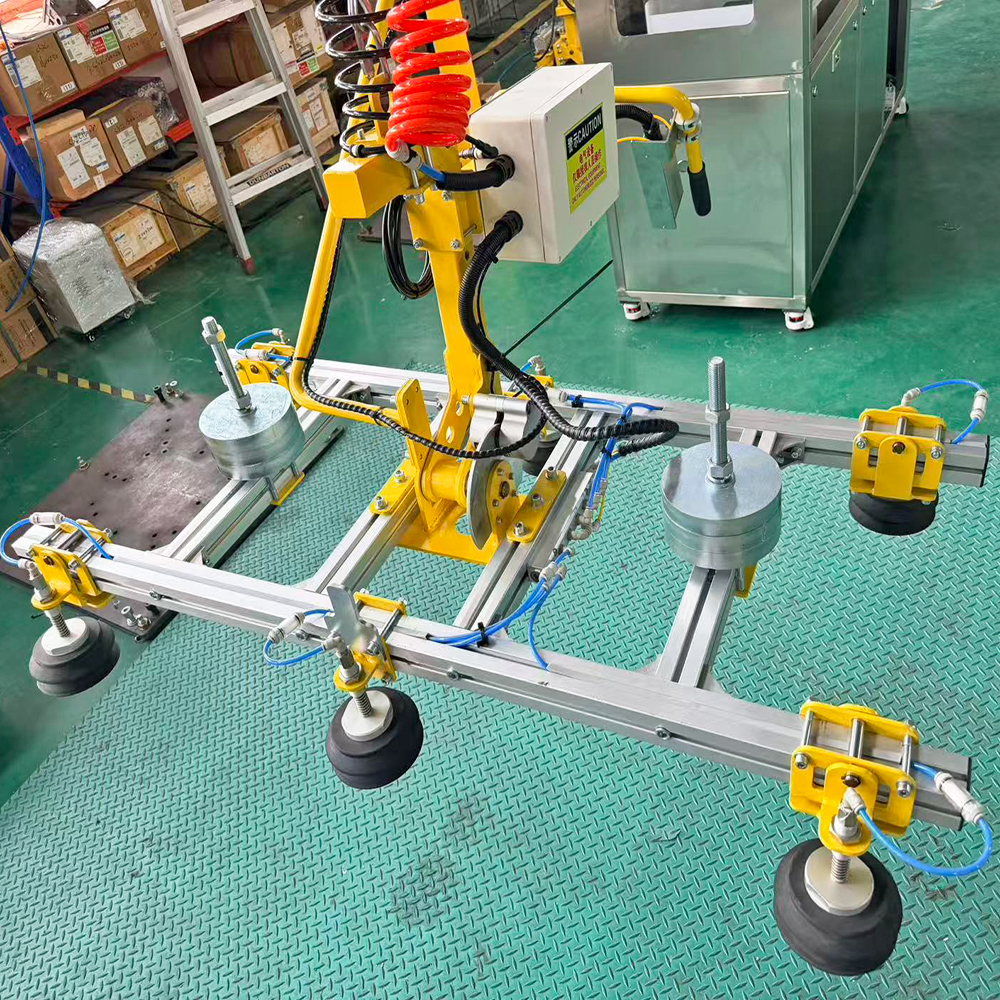

suction cup fixture

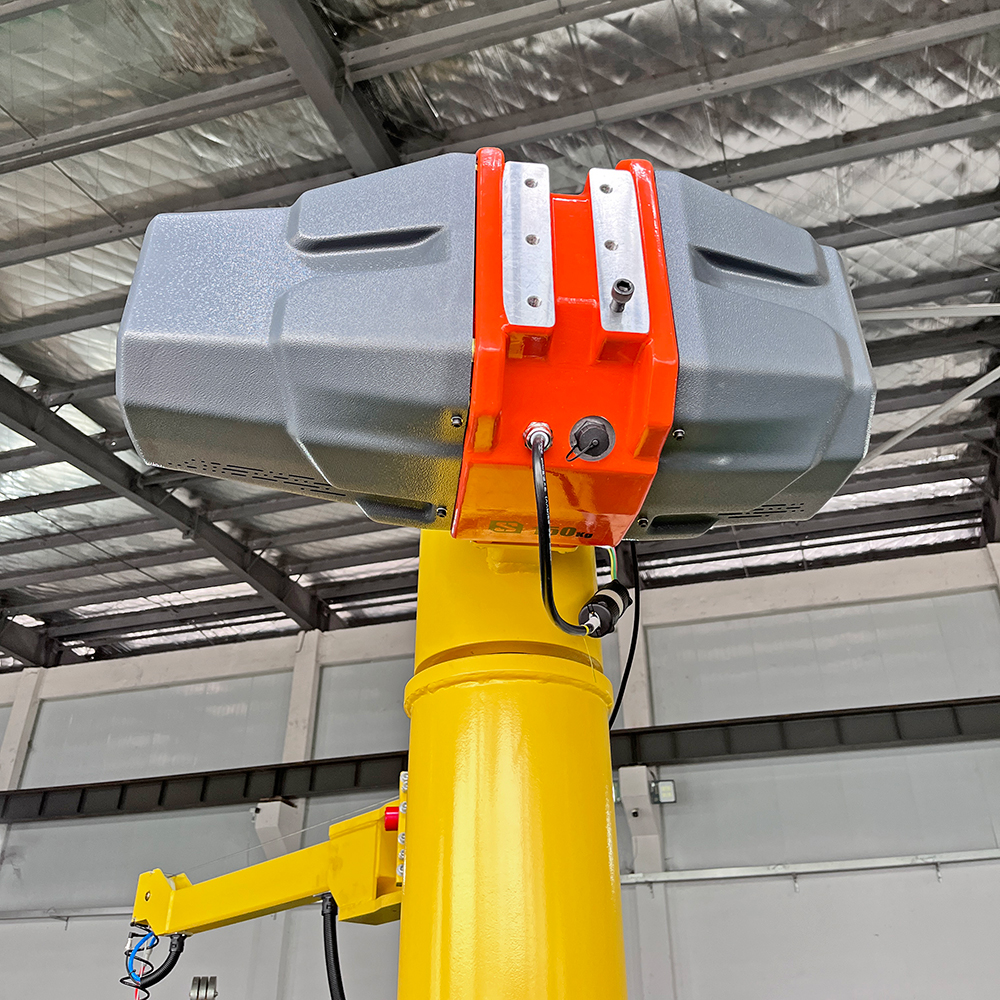

lifting hoist

Applications

1. Sheet Metal Fabrication

Used for lifting and transferring steel plates, stainless steel sheets, and aluminum panels during cutting, welding, and fabrication processes.

2. CNC Machine Loading and Unloading

Helps operators safely load sheet materials onto CNC machines, reducing handling time and improving production efficiency.

3. Metal Processing Workshops

Provides flexible material transfer solutions for bending, laser cutting, punching, and machining operations.

4. Welding and Assembly Lines

Allows workers to position and rotate metal sheets accurately before welding or assembly.

5. Glass and Panel Handling

Suitable for handling glass, composite panels, and other smooth-surface materials requiring careful lifting.

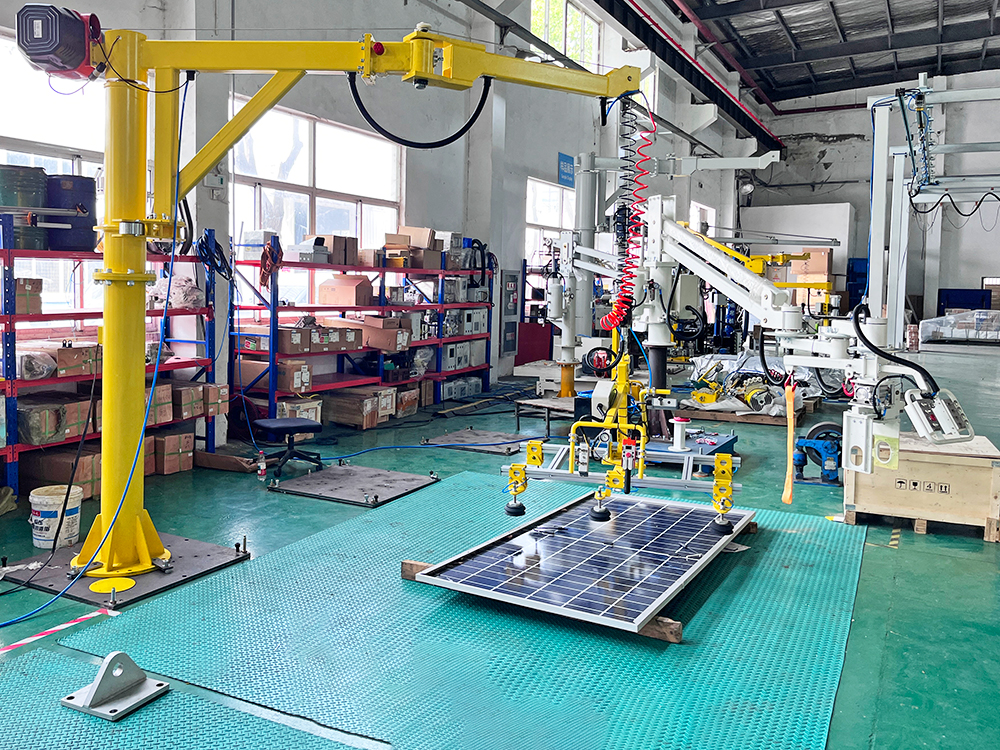

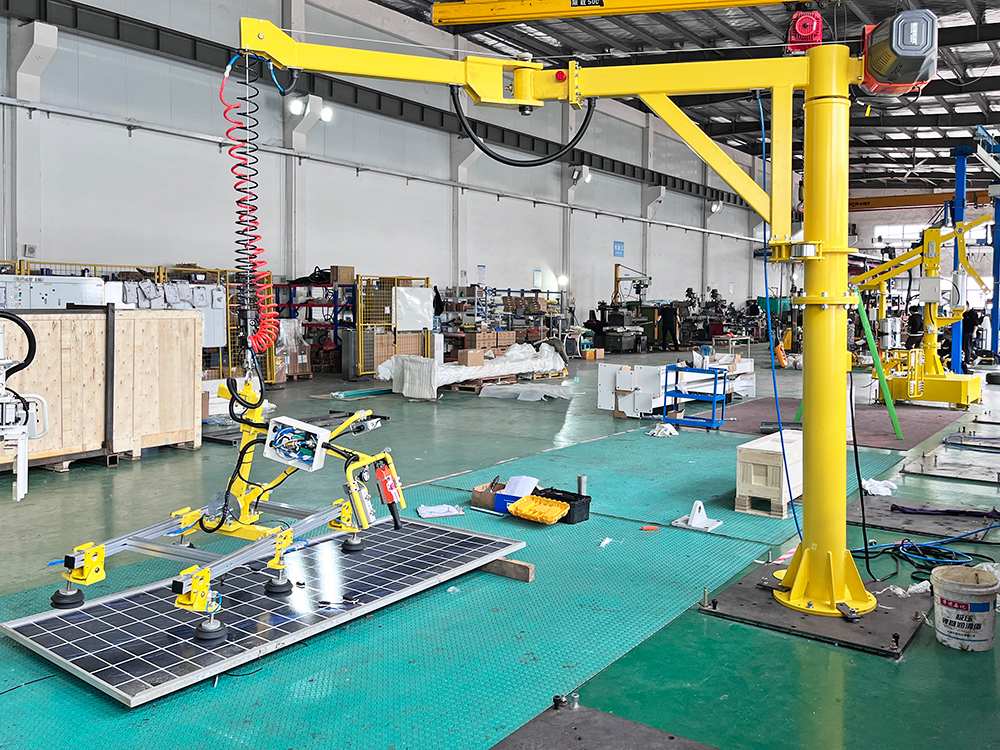

Sheet Metal Handling Sheet Metal Handling crane

Customized Design

We provides customized vacuum jib crane solutions based on different materials, load requirements, and factory layouts.

Customized Vacuum Gripper: Suction cups, layouts, and gripping methods can be designed for steel plates, stainless steel, aluminum sheets, glass, and other flat materials.
Customized Capacity & Structure: Lifting capacity, arm length, working radius, lifting height, and installation methods can be adjusted according to application needs.
Customized Tilting Function: 90° rotation, positioning, and turning solutions are available for different production processes.
Customized Control System: Ergonomic handles and safety functions can be configured for easier and safer operation.

We delivers flexible material handling solutions to improve efficiency, reduce labor intensity, and meet different industrial handling requirements.
