Product Overview

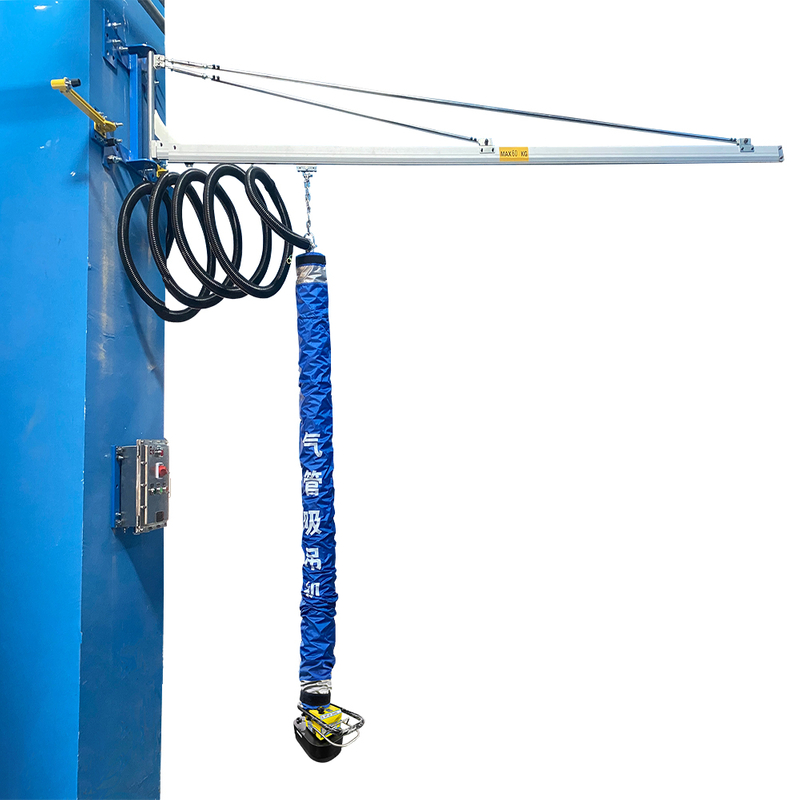

The Wall Mounted Vacuum Tube Lifter is an innovative material handling solution designed for lifting and transporting bags, cartons, and other similar items with ease and precision. Mounted on the wall, this lifter provides significant space-saving advantages, making it ideal for environments with limited floor space. The vacuum tube lifter uses a high-performance vacuum system combined with ergonomic controls to allow operators to lift and move goods effortlessly. This system is designed to reduce manual labor, enhance workplace safety, and increase productivity, especially in packaging and logistics industries.
|
Technical Specifications
| Item | Specification |
| Model | EST-500 |
| Max Lifting Capacity | 500 kg (Customizable upon request) |
| Type | Wall Mounted Vacuum Tube Lifter |

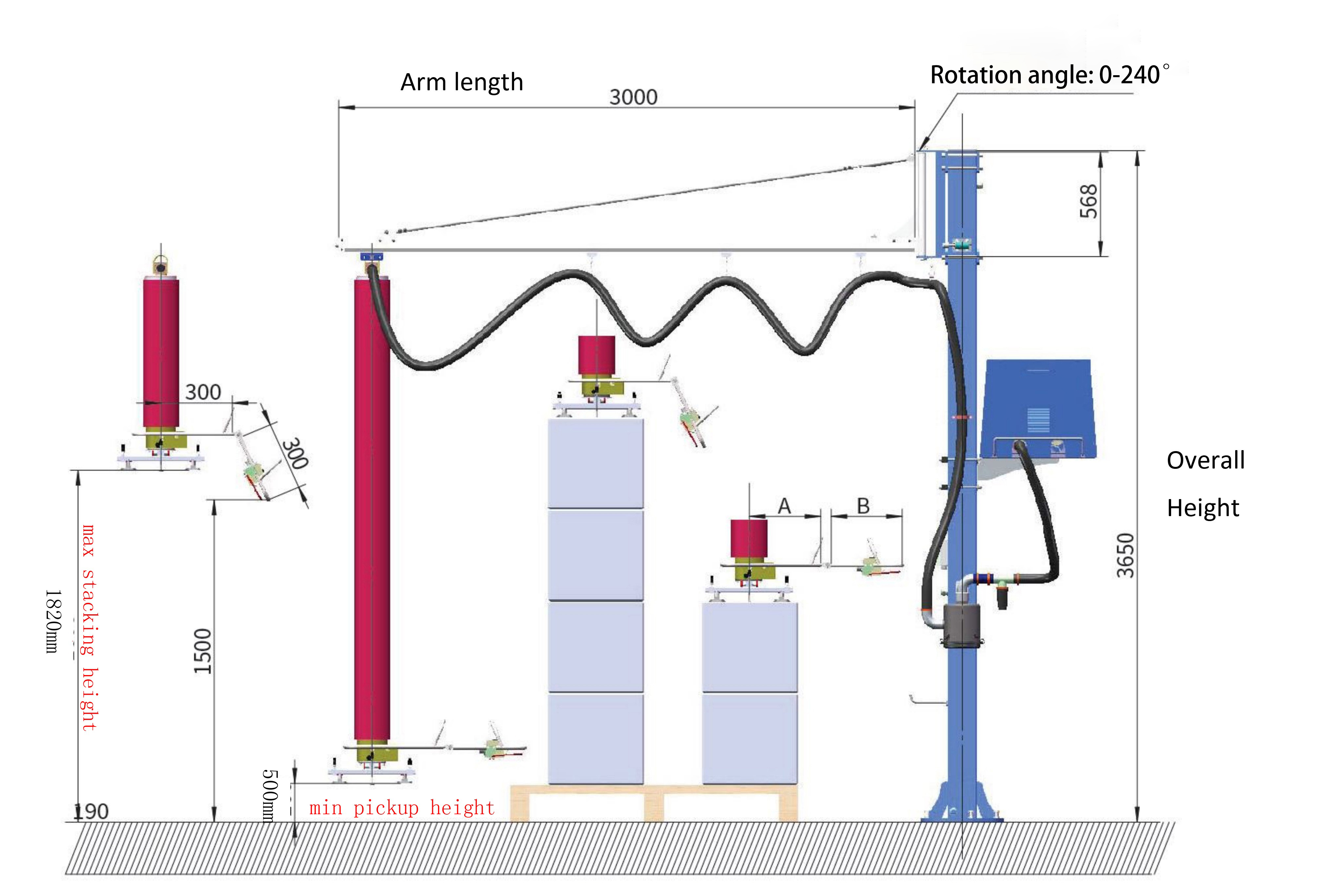

| Lifting Height Range | 1.5m – 3.0m (adjustable) |
| Power Supply | 220V / 50Hz / 1 Phase |
| Vacuum System | Electric Vacuum Pump (High Efficiency) |
| Control System | Handlebar Control with Integrated Buttons |
| Suction Cup Material | Nitrile Rubber / Silicone (customizable) |
| Weight | 120 kg |
| Operating Temperature | -10°C to 40°C |
| Mounting Type | Wall Mounted (Flexible installation) |
| Application | Bags, Cartons, Small Pallets, Light Materials |
|
Product Features

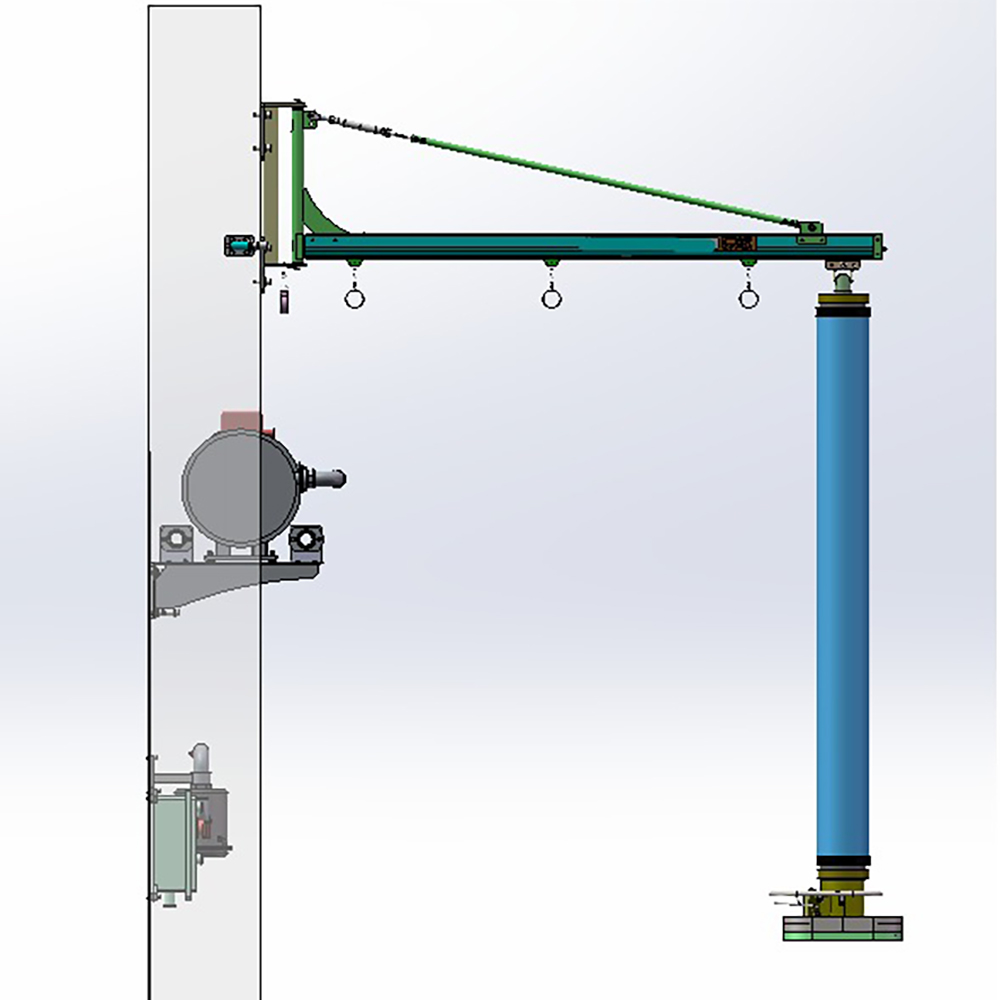

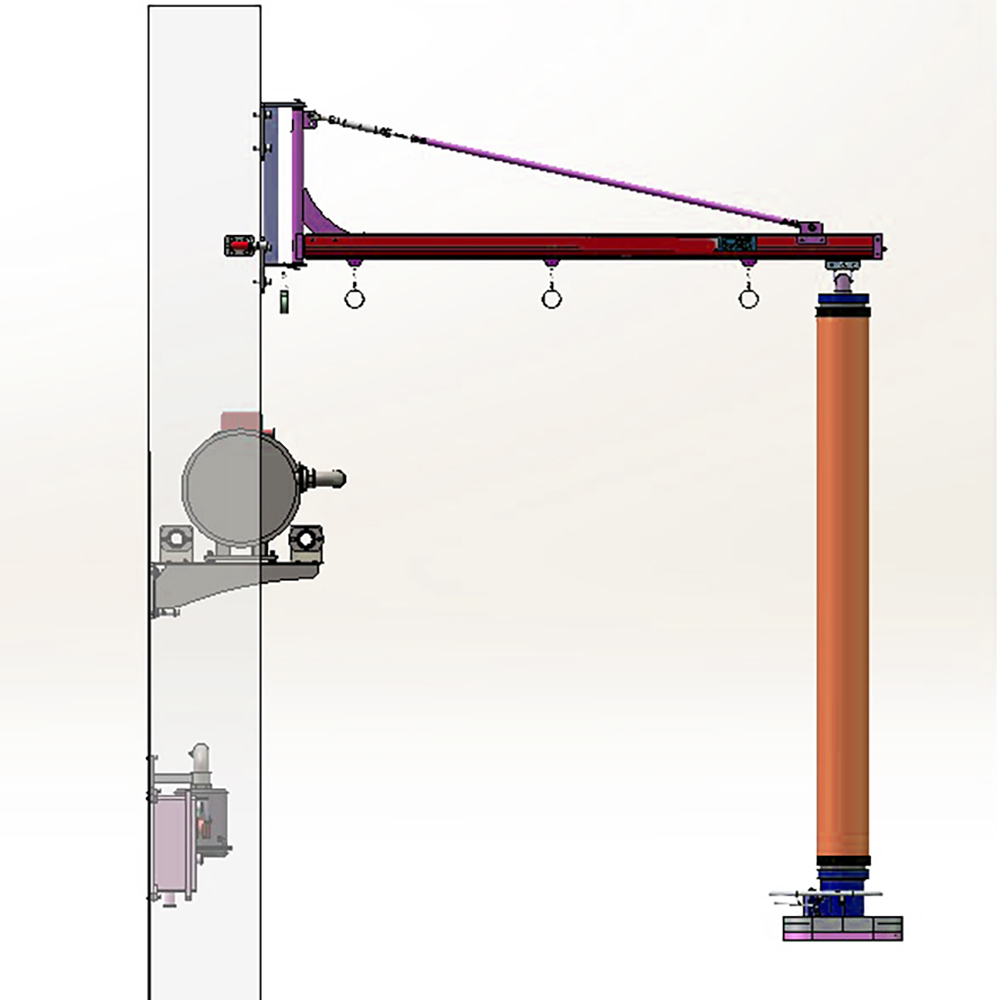

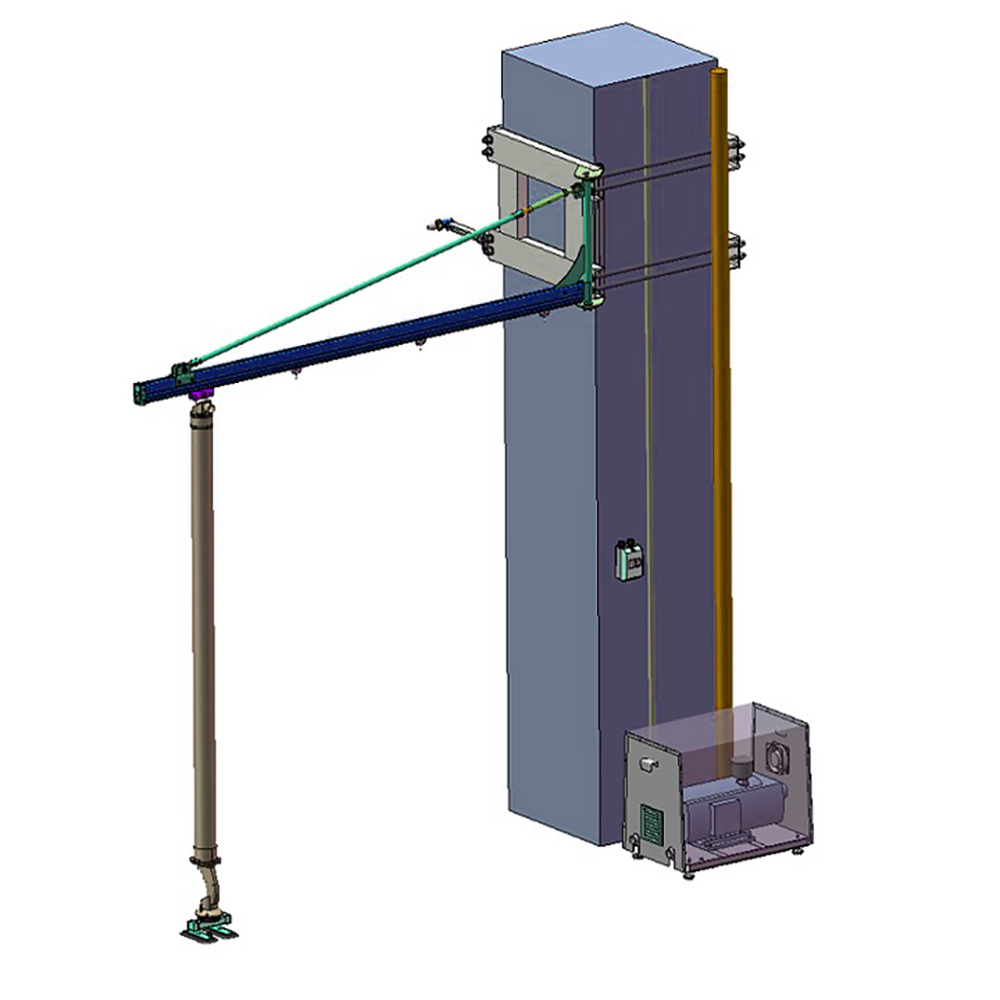

Space-Saving Wall Mounted Design
The wall-mounted design allows for efficient use of factory or warehouse space, making it ideal for areas with limited floor space. The lifter can be installed on a wall, with its arm extending to perform material handling tasks.
Versatile Material Handling
This vacuum tube lifter is ideal for handling bags, cartons, and light materials commonly found in packaging, distribution, and assembly lines. It can easily lift and transport materials without the risk of damage or strain on workers.
Ergonomic Operation
The handlebar control system is designed to reduce strain on the operator, providing ergonomic, hands-free operation. The controls are simple and intuitive, allowing operators to lift and lower loads easily and with precise control.
High Efficiency and Safety
The lifter features a high-efficiency vacuum pump that maintains continuous suction, ensuring a strong grip on the material being lifted. Additionally, the system includes vacuum loss alarms to prevent accidents and ensure safety during operation.
Adjustable Arm for Flexible Reach
Customizable Suction Cups
The lifter comes with adjustable and customizable suction cups, designed to handle a variety of packaging materials. These cups ensure a secure grip on materials of different shapes and sizes without causing damage.

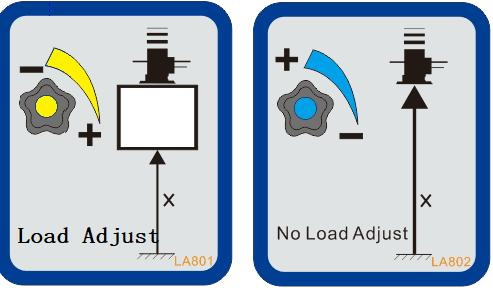

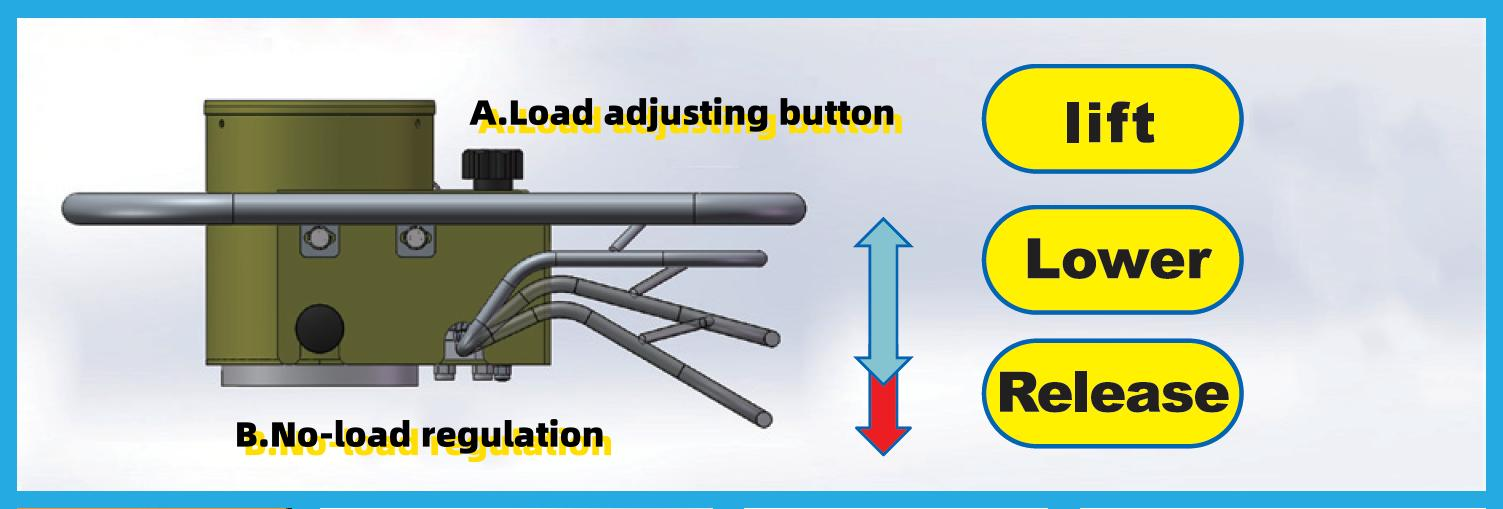

Controller

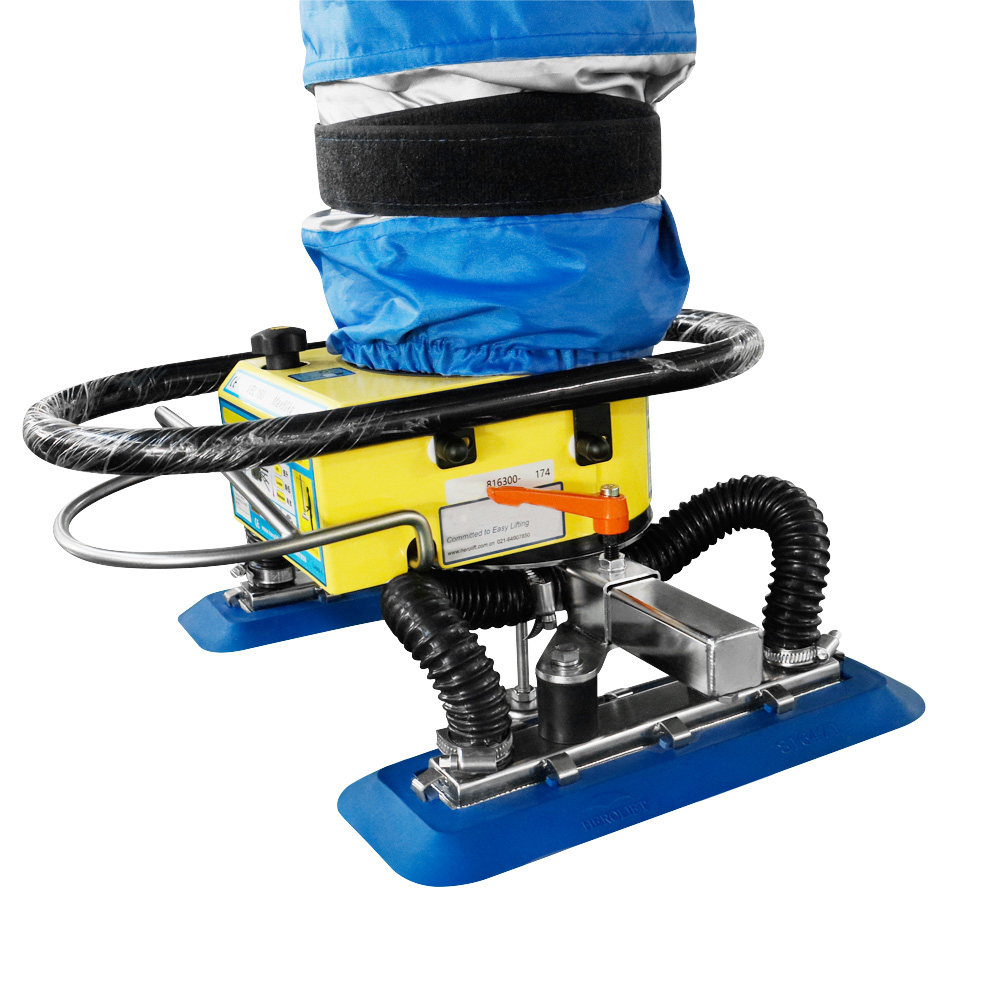

Suction cup
Handle
|

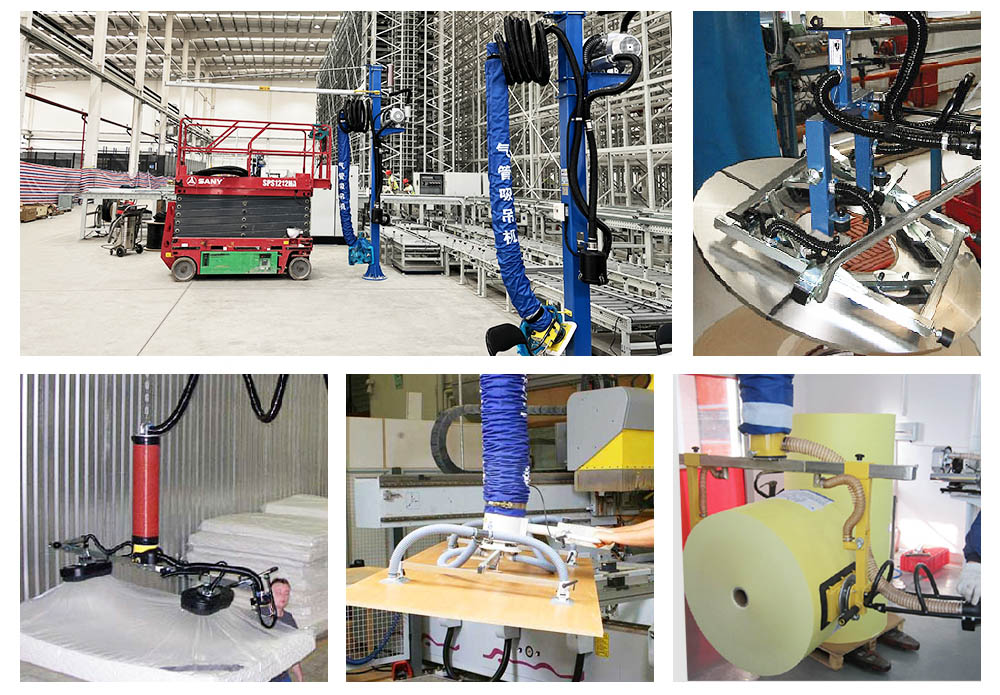

Application Scenarios
Packaging and Distribution
Ideal for environments where bags, boxes, and cartons need to be moved from one station to another. It significantly increases efficiency in packing lines, sorting areas, and warehouse operations.
Food and Beverage Industry
Suitable for lifting and handling bags of ingredients, food cartons, or lightweight packaging in food processing or packaging plants. It ensures materials are handled safely and efficiently, reducing contamination risks.
Logistics & Warehousing
Perfect for handling and transporting various boxed goods, parcels, or cartons in warehouses or distribution centers. It eliminates the need for manual lifting, speeding up sorting, and organizing tasks.
Assembly and Manufacturing
The vacuum tube lifter is also used in assembly lines, especially when materials such as small pallets, lightweight components, or product parts need to be moved with care and precision.

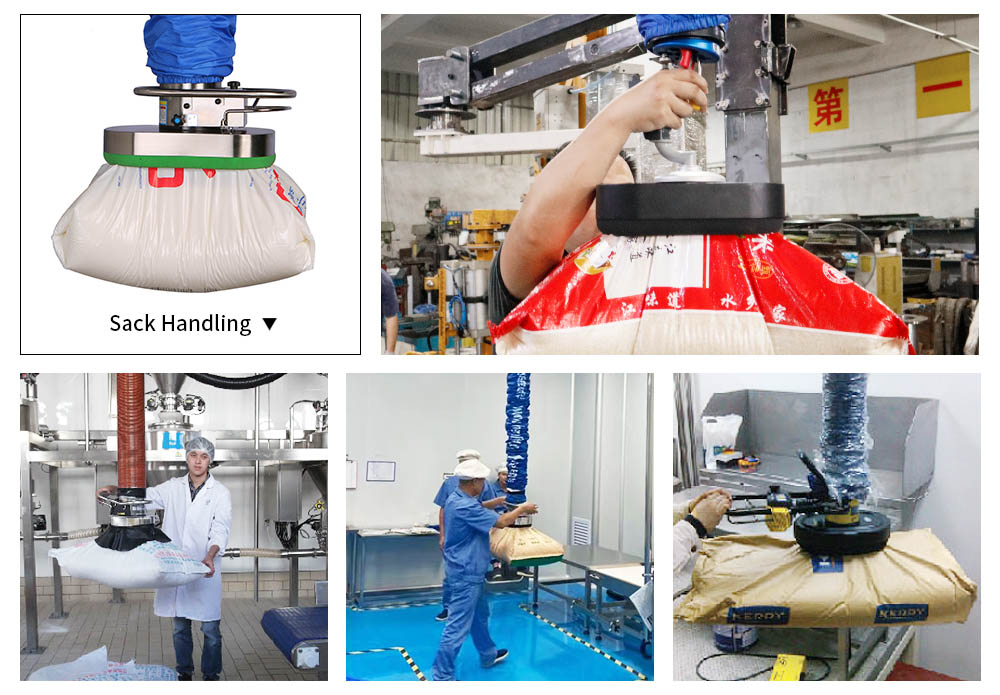

sack handling

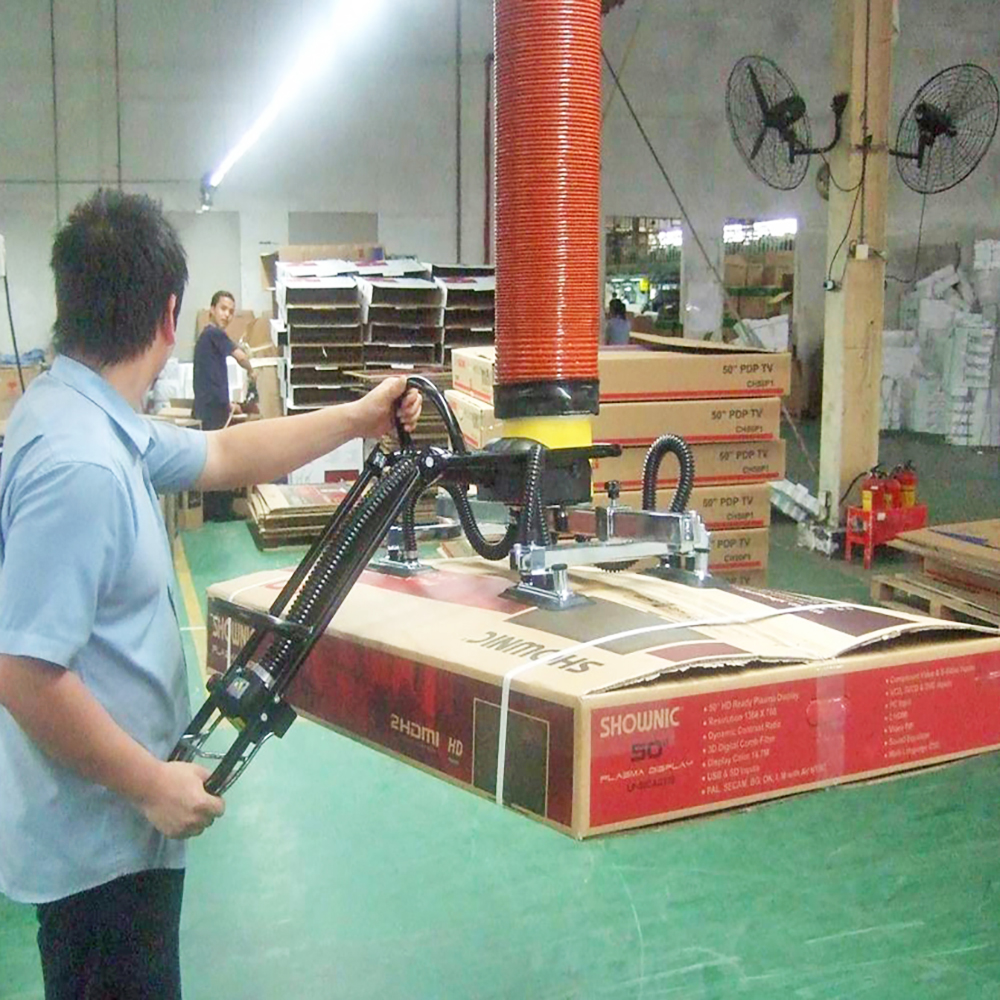

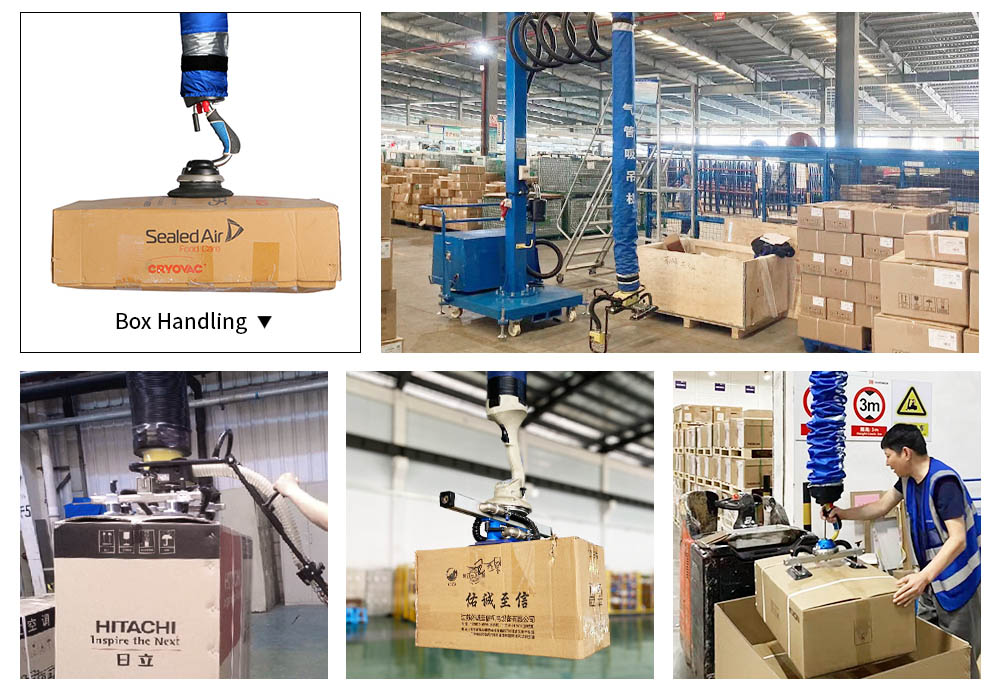

box handling

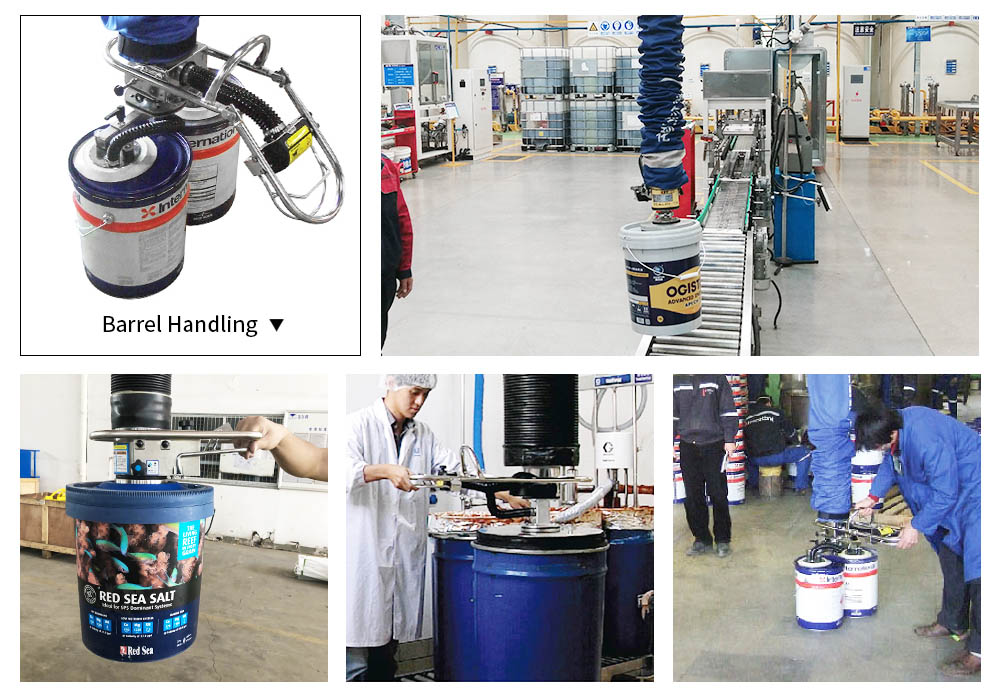

Barrel Handling
vacuum lifter
