50kg Vacuum Lifting Manipulator for Steel Plate Handling And 90-Degree Rotation

Manual lifting and turning of steel plates is physically demanding, especially when materials must be transferred repeatedly between workstations, conveyors, cutting machines, and processing fixtures. Heavy handling can lead to operator fatigue, unstable positioning, surface damage, and production delays.

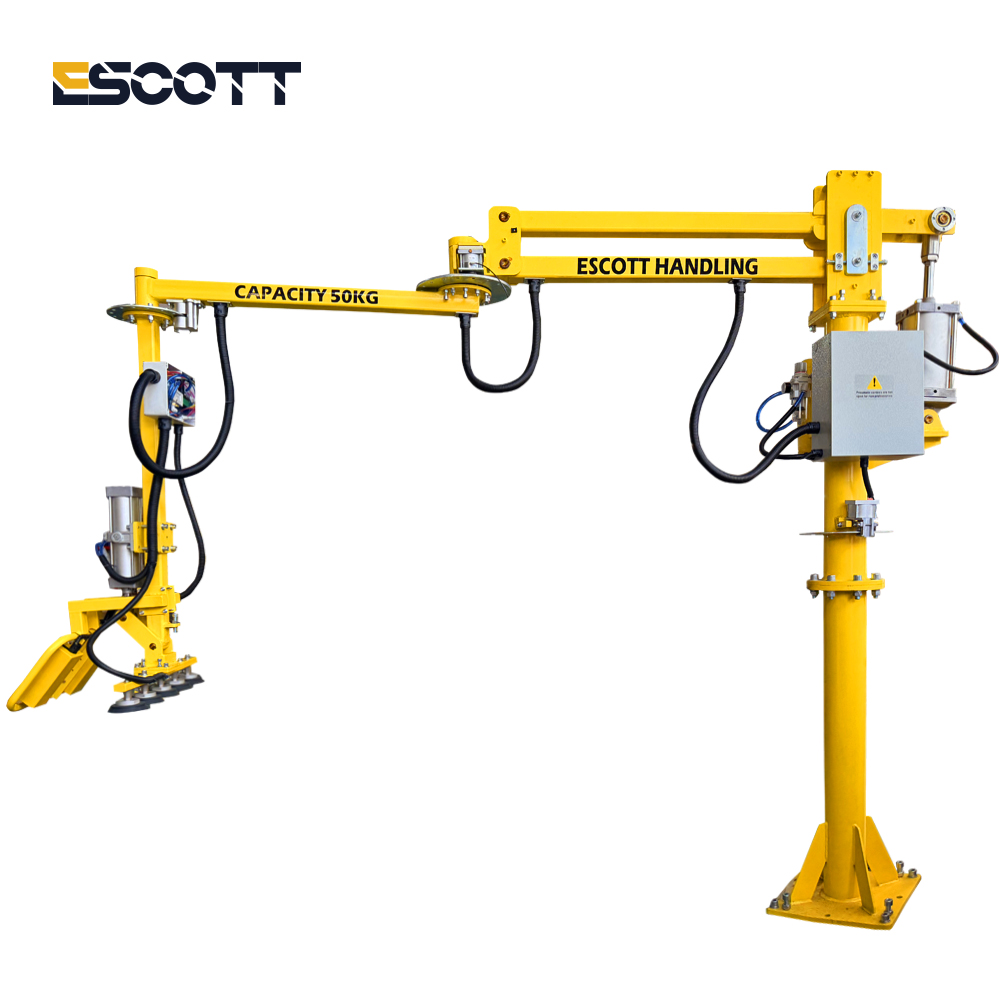

The 50kg Vacuum Lifting Manipulator provides pneumatic-assisted lifting, horizontal transfer, accurate positioning, and 90-degree rotation. It allows one operator to handle suitable steel plates with reduced physical effort and improved control.

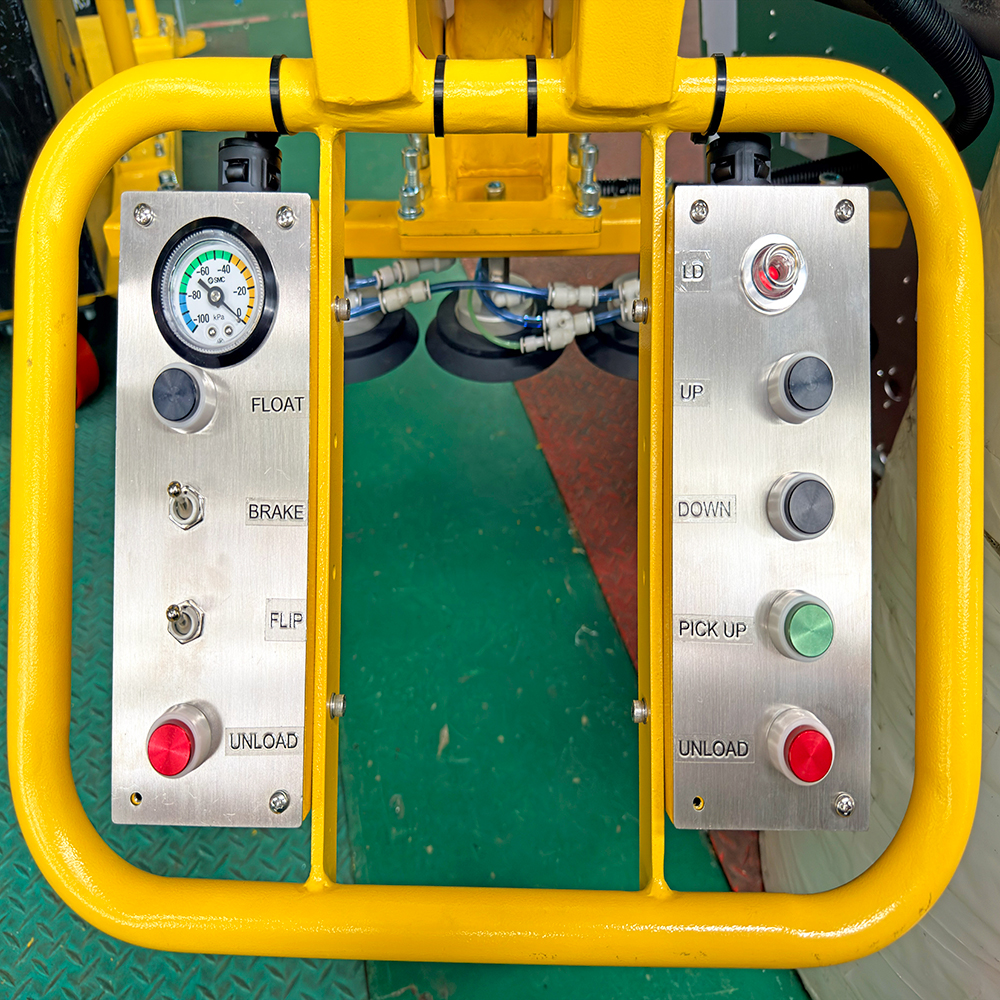

The pneumatic balancing system supports the weight of the steel plate during lifting and movement. Operators can guide the load smoothly through the working area using an ergonomic control handle.

This solution helps:

• Reduce repetitive manual lifting

• Lower operator fatigue during long shifts

• Support one-person material handling

• Improve handling consistency

• Reduce the need for multiple workers

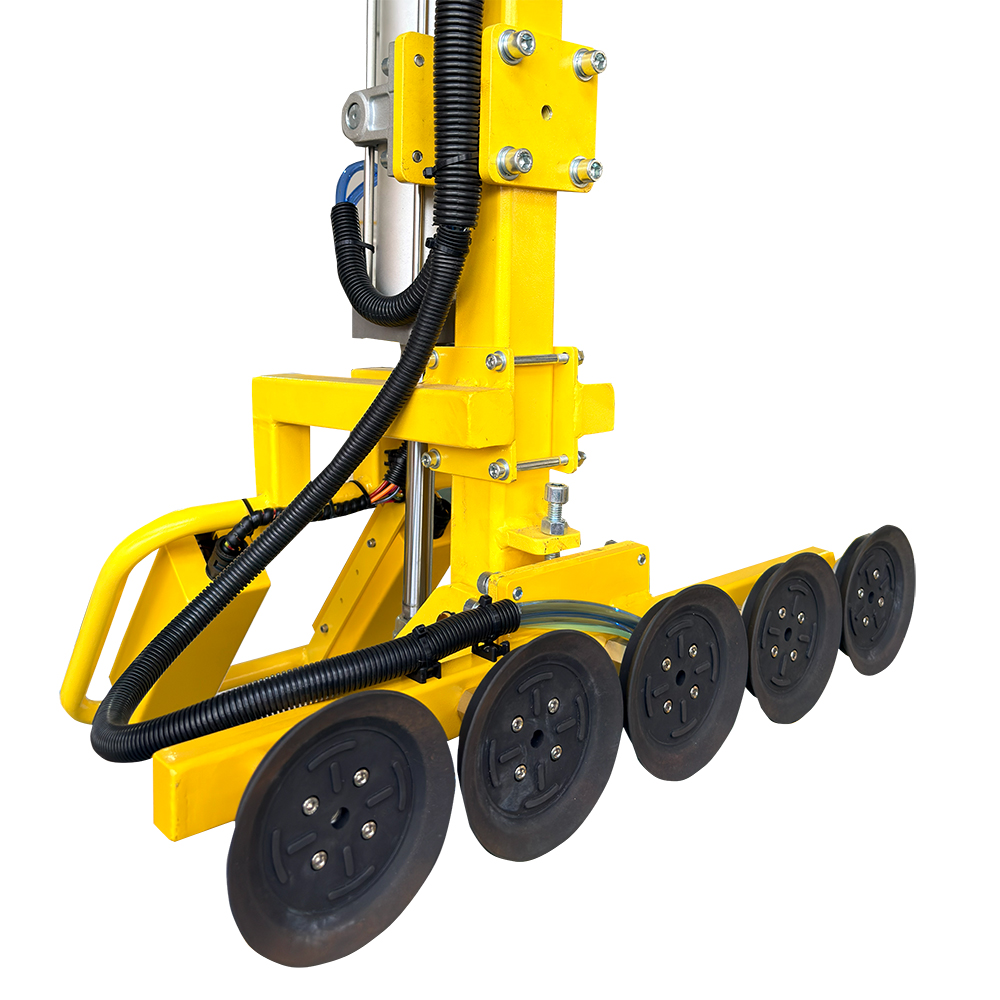

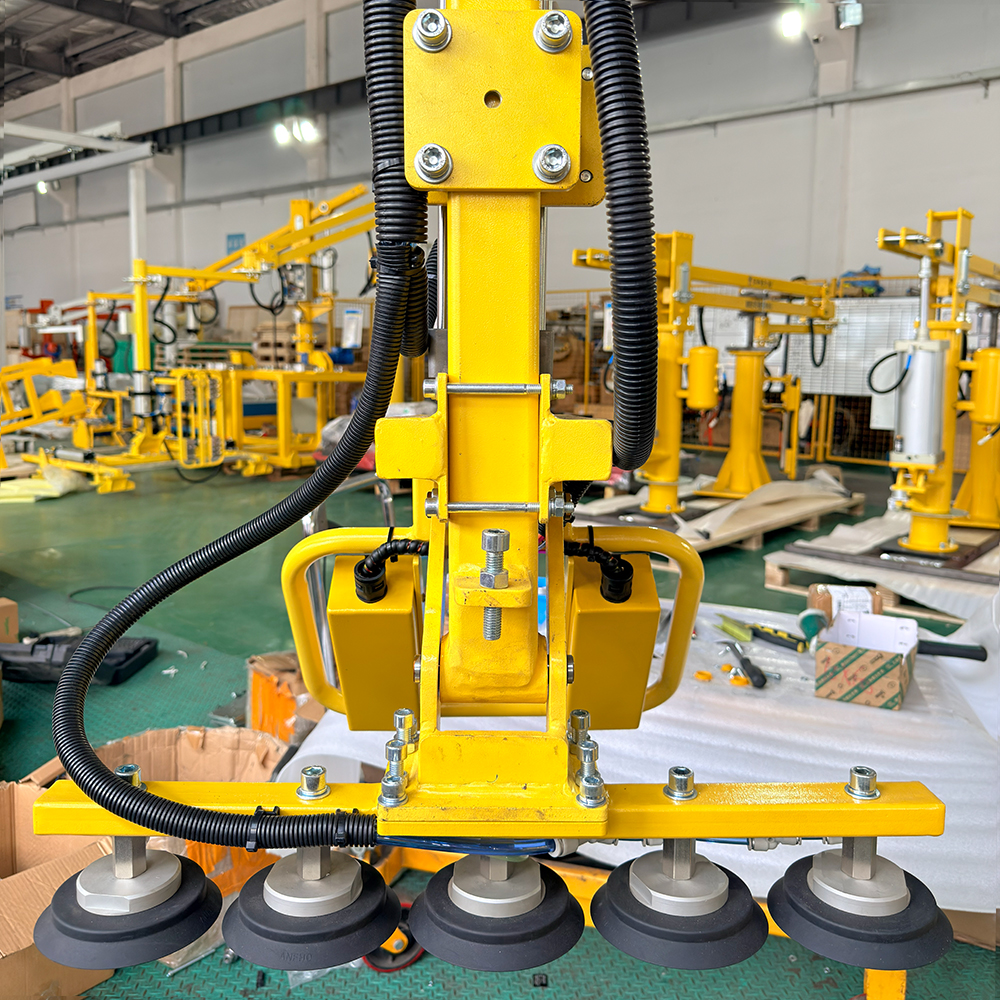

The vacuum suction cup system is designed for fast and convenient pickup of suitable steel plates and sheet metal workpieces. It eliminates the need for straps, hooks, or manual clamping in applicable handling conditions.

The suction cup layout can be customized according to:

• Steel plate dimensions

• Plate thickness and weight

• Surface flatness

• Contact area

• Center of gravity

• Required lifting direction

For reliable vacuum lifting, the workpiece should have a sufficiently smooth, clean, and non-porous contact surface. Final suitability must be confirmed through application testing.

• Steel plate loading and unloading

• Sheet metal transfer between workstations

• Laser cutting and CNC machine feeding

• Steel sheet stacking and destacking

• Welding and fabrication workstations

• Conveyor-to-fixture transfer

• Metal component inspection and positioning

• 90-degree steel plate orientation adjustment

Customized Material Handling Solution

Every factory has different workpiece sizes, process routes, and installation conditions. The vacuum lifting manipulator can be customized according to your actual requirements.

Available customization options include:

• Lifting capacity

• Vacuum suction cup size and quantity

• Arm length and working radius

• Lifting stroke and column height

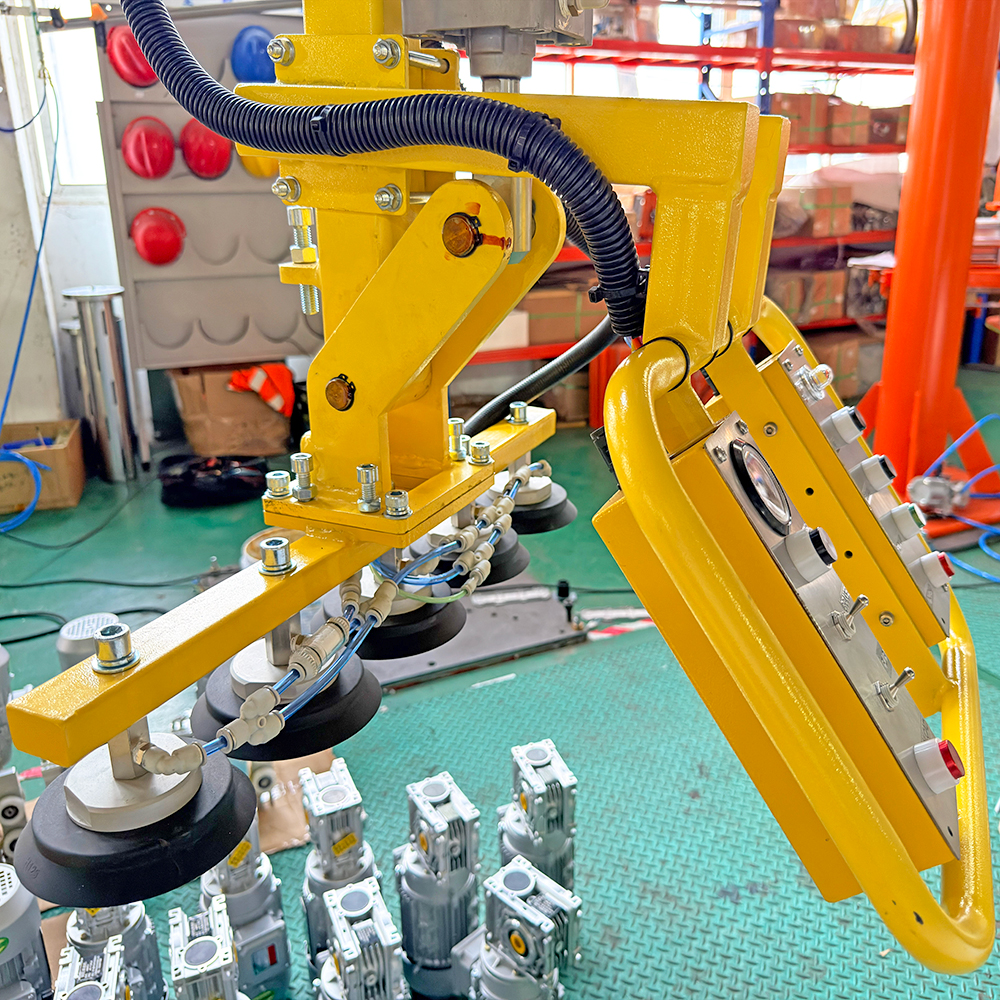

• 90-degree rotation mechanism

• Rotation speed and direction

• Floor-mounted, wall-mounted, or line-integrated installation

• Special fixtures for different steel plate models
